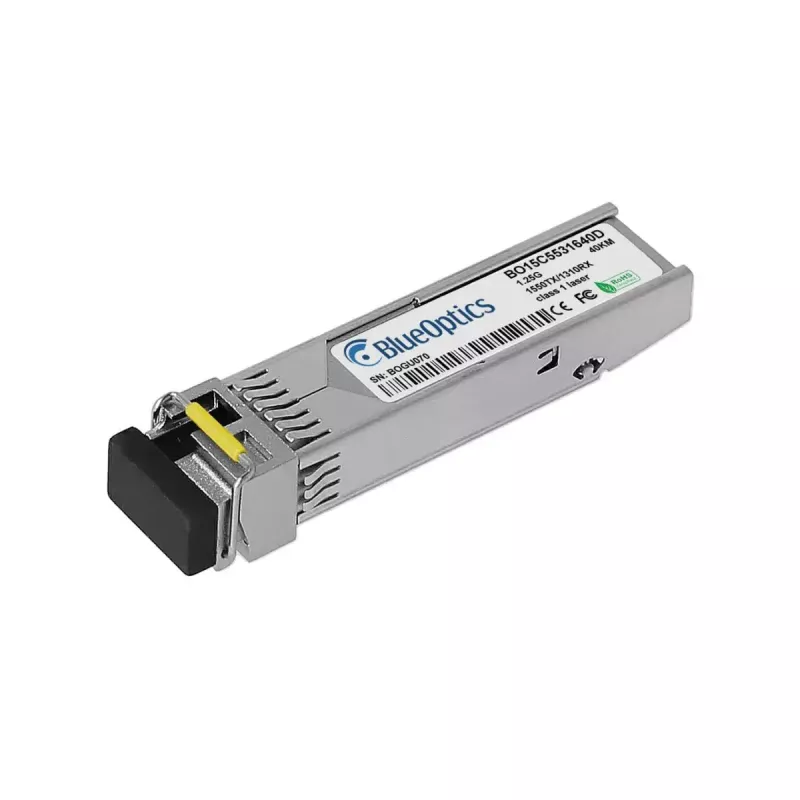

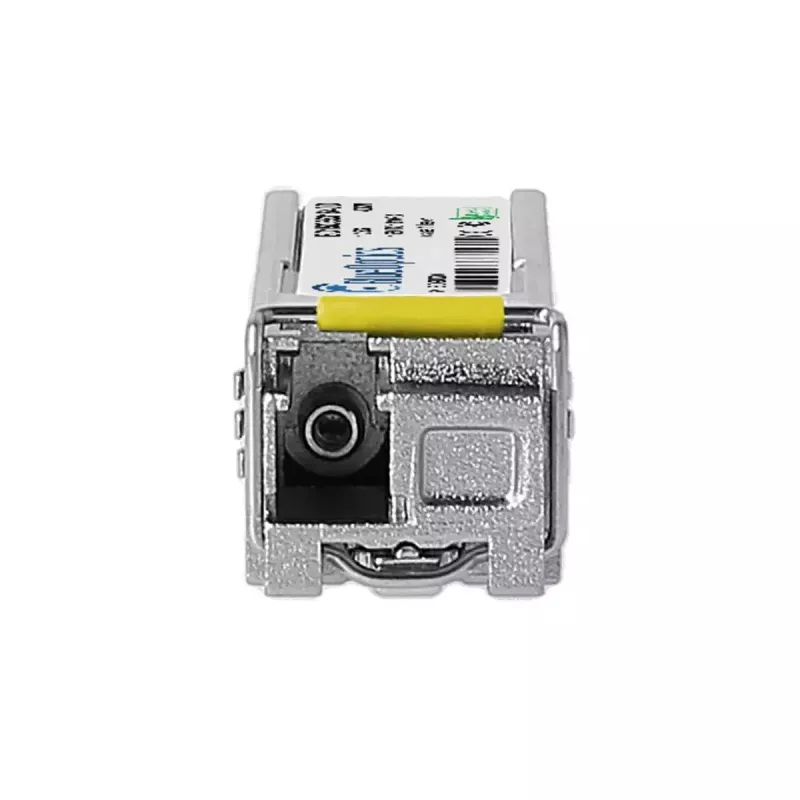

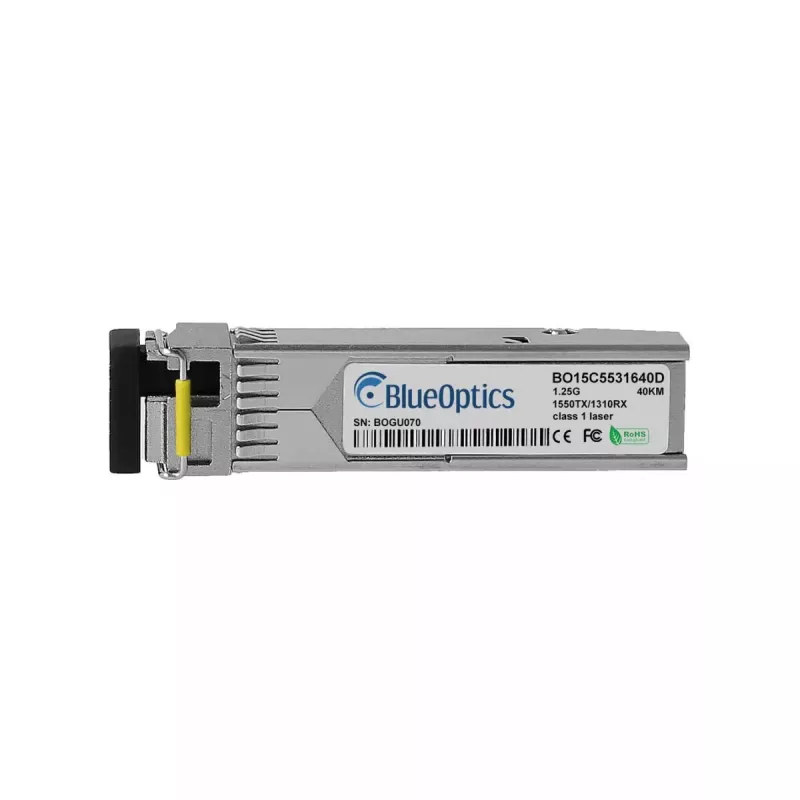

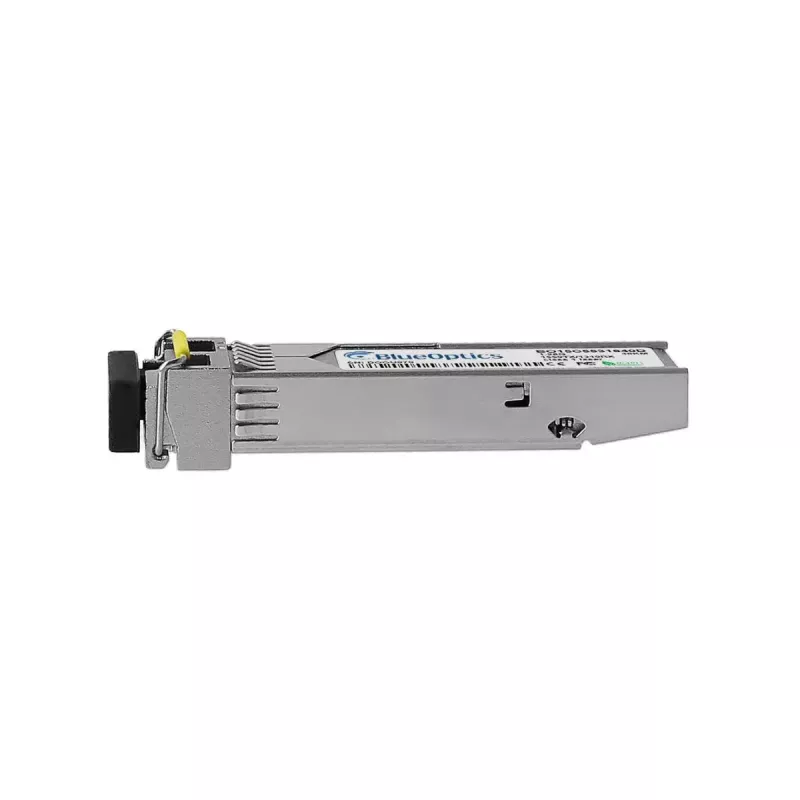

BlueOptics SFP-1GT15R13BX40-I-BO netwerk-transceivermodule glasvezel 1250 Mbit/s

The BlueOptics SFP-1GT15R13BX40-I-BO network transceiver module is a single-mode SFP fiber optic module designed for 1000BASE-BX-D applications with a maximum data rate of 1250 Mbit/s. The module uses a metal housing, weighs approximately 3 g and accepts a 3.3 V supply. It features an LC simplex connector and supports asymmetric bidirectional operation with a transmitter wavelength at 1310 nm and a receiver wavelength at 1550 nm, enabling point-to-point links over single-mode fiber up to 40 km when used in compatible hardware.

Advantages

The module follows MSA SFP form-factor standards and is manufactured to be compatible with major networking platforms that support the original 1000BASE-BX-D transceiver. It offers digital diagnostics monitoring (DDM/DOM) for real-time monitoring of supply voltage, laser bias current, transmit power, receive power and temperature, which simplifies maintenance and troubleshooting. The compact metal housing and low weight support dense installations and improved thermal performance.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP-1GT15R13BX40-I-BO into an SFP slot of a compatible switch, router or storage device while the host system is powered according to the vendor guidelines. Connect an appropriate single-mode LC patch cable to the module and to the remote transceiver, ensuring correct orientation for transmit and receive fibers. Verify link parameters and use the host system interface or the DDM/DOM readout to monitor supply voltage, laser bias, output and input power and temperature. Confirm that the host hardware and firmware accept third-party SFP modules or are configured to enable the module.

Recommendations

Use certified single-mode fiber patch cords and maintain clean LC connector endfaces to ensure optimal signal quality. Verify host compatibility for DDM/DOM features if remote diagnostics are required. For long-distance links, check link budget and margin values and perform an optical power test during installation.
