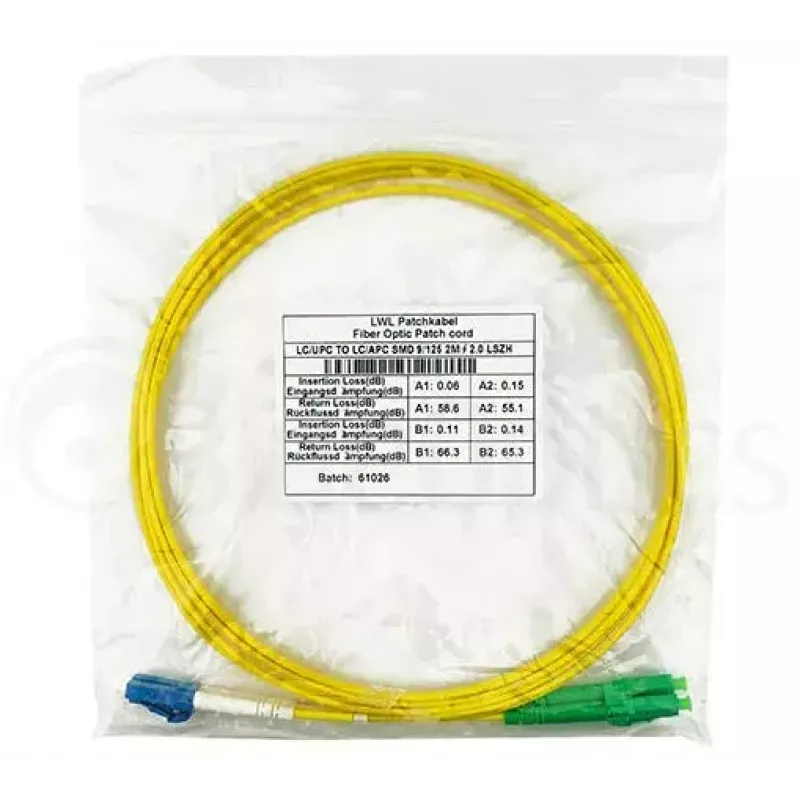

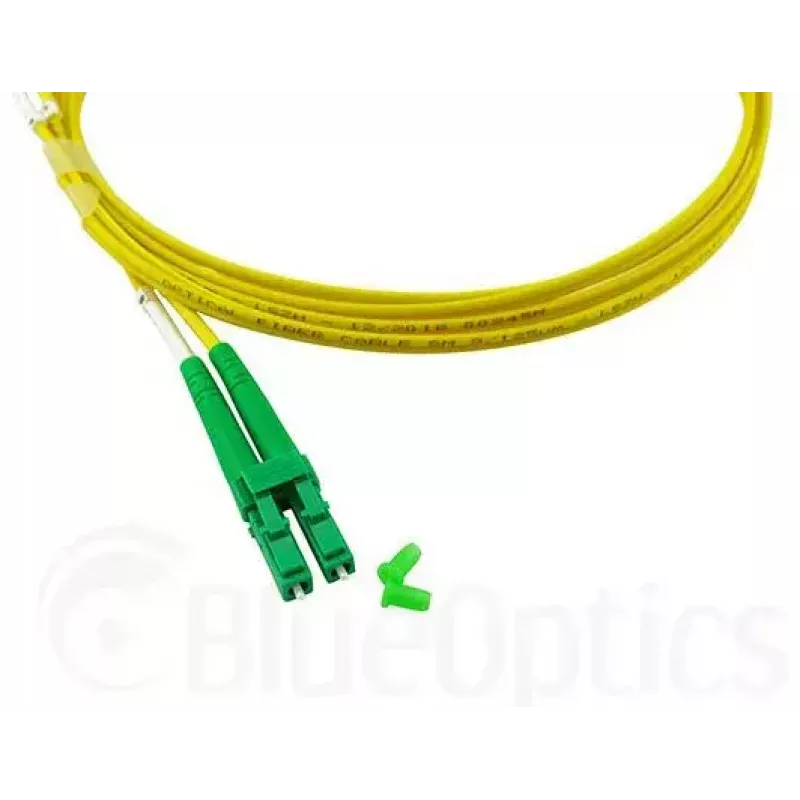

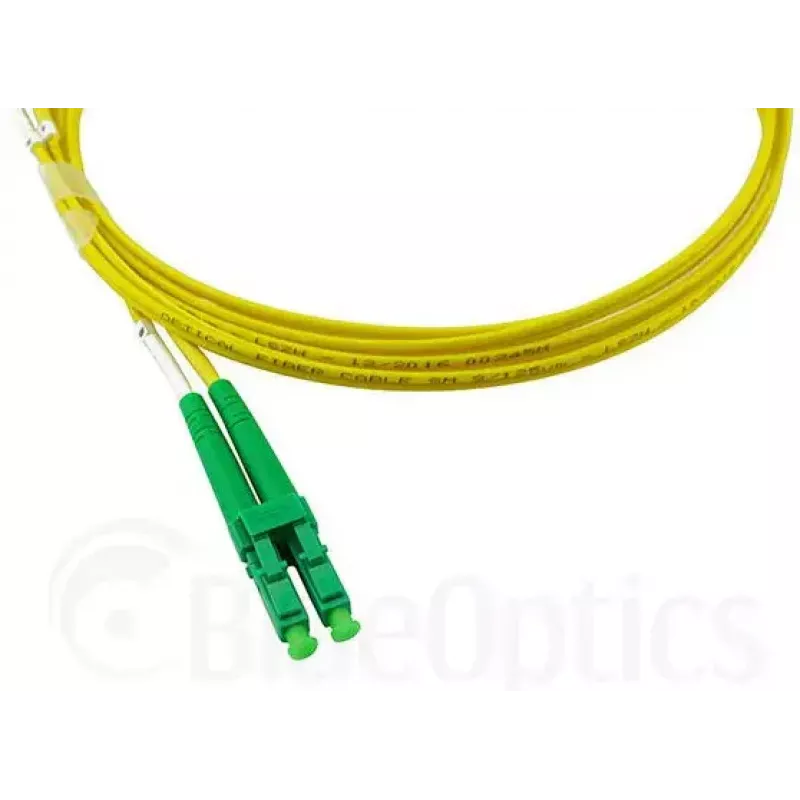

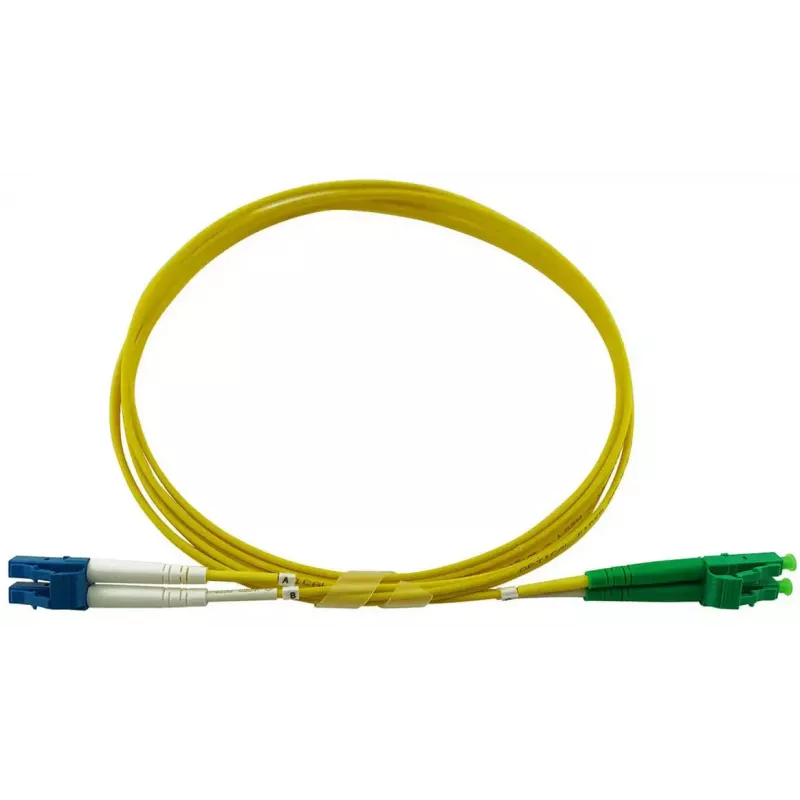

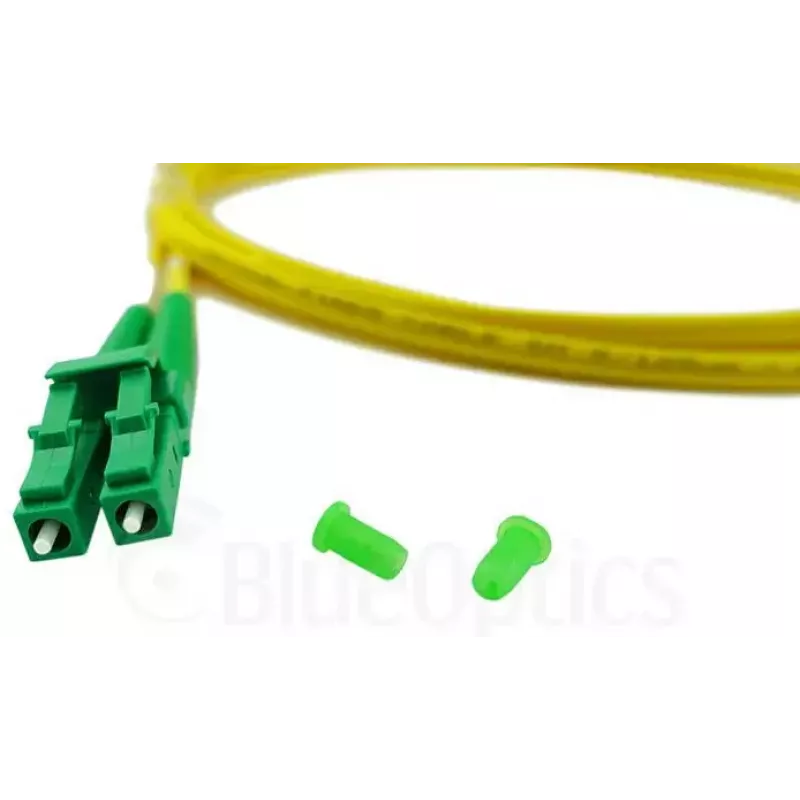

BlueOptics SFP3131BU2MS InfiniBand-glasvezelkabel 2 m LC geel

BlueOptics SFP3131BU2MS is a 2 meter single-mode fiber patch cord with duplex LC/UPC to LC/APC (8°) connectors and laser-optimized G.657.A1 fiber (9/125 µm). The cable is finished in yellow and features a flame-retardant LSZH jacket. It is designed for reliable full-duplex connections such as linking patch panels or connecting optical transceivers for 1310 nm and 1550 nm transmission.

Advantages

The patch cord offers low attenuation (0.4 dB/km), low insertion loss and high return loss. It is manufactured with branded single-mode fibers and high-quality connectors using zirconia ceramic ferrules for long-term durability up to 1500 mating cycles. Each unit is tested with interferometer and OTDR and delivered with a measurement protocol for insertion loss and return loss. The LSZH jacket reduces smoke and eliminates halogen release in case of fire.

Suitable for

Key specifications

How to use

Inspect connectors and ports for contaminants before installation. Align the LC connector to the device or patch panel port and insert until it latches. For duplex operation ensure correct polarity by matching transmit and receive channels between devices. Avoid tight bends and maintain the cable's minimum bend radius to prevent increased attenuation. Route the cable in appropriate trays or conduits and secure to prevent mechanical strain.

Recommendations

Store and handle the patch cord in a clean environment; clean fiber endfaces with appropriate lint-free wipes and optical-grade cleaner before mating. Use specified lengths or request custom lengths if needed to minimize excess slack and maintain optimal signal performance.
