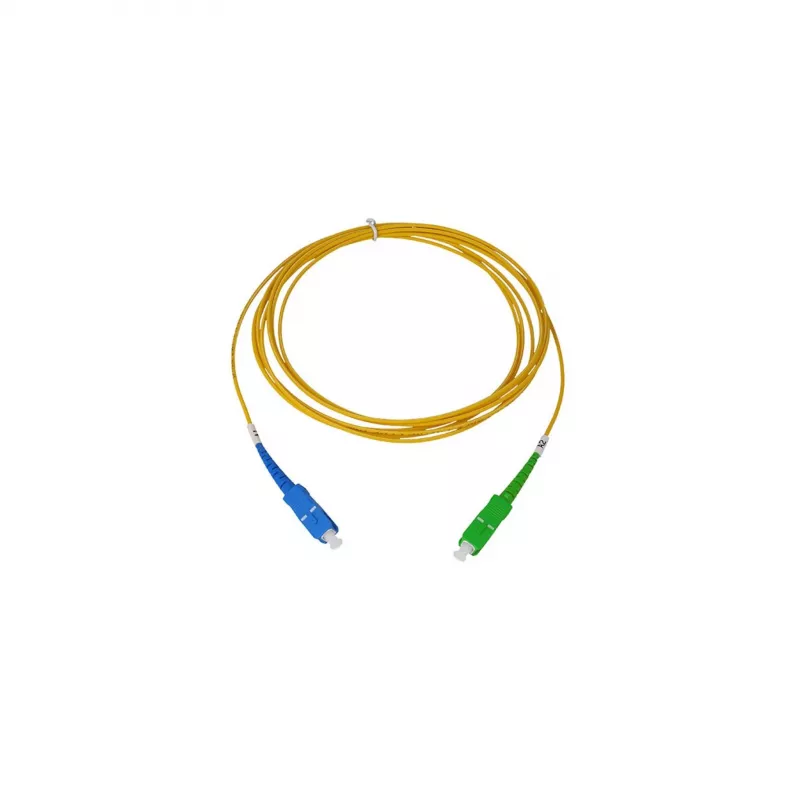

BlueOptics simplex glasvezel-patchkabel SC-UPC/SC-APC singlemode 3 meter

The BlueOptics Simplex Fibre Optic Patch Cable SC-UPC/SC-APC Singlemode 3 Metres is a high-performance fibre optic cable designed for reliable data transmission in demanding network environments. Engineered with precision, this patch cable ensures low insertion loss and high return loss, making it ideal for critical applications such as data centers, FTTH, LAN, and telecommunications.

Advantages

This cable offers exceptional signal integrity with insertion loss less than 0.3 dB and return loss greater than 50 dB (UPC) and 60 dB (APC). The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, reducing toxic fumes and smoke in case of fire. Its yellow jacket colour ensures easy identification for singlemode fibre.

Suitable for

• Data Centers
• FTTH (Fiber to the Home)
• Local Area Networks (LAN)
• Telecommunications infrastructure

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Type: Singlemode OS2
• Fibre Count: Simplex (1 Fibre)
• Connector A: SC/UPC
• Connector B: SC/APC
• Cable Length: 3 Metres
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Cable Diameter: 3.0 mm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Insertion Loss (SC/UPC): < 0.3 dB
• Insertion Loss (SC/APC): < 0.3 dB
• Return Loss (SC/UPC): > 50 dB
• Return Loss (SC/APC): > 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 61754-4

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC interfaces and is suitable for both indoor and protected outdoor applications.
