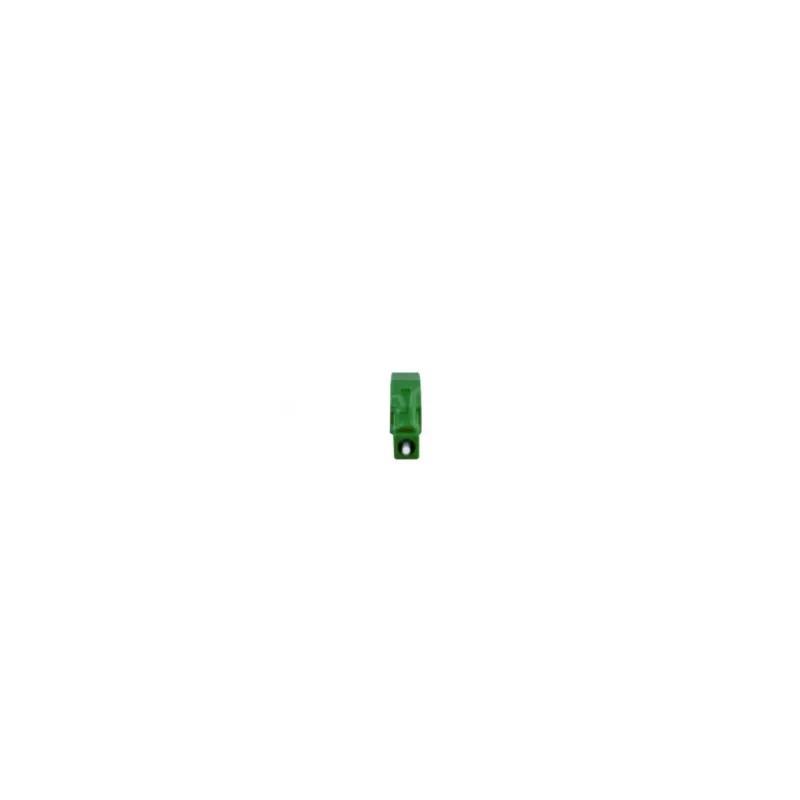

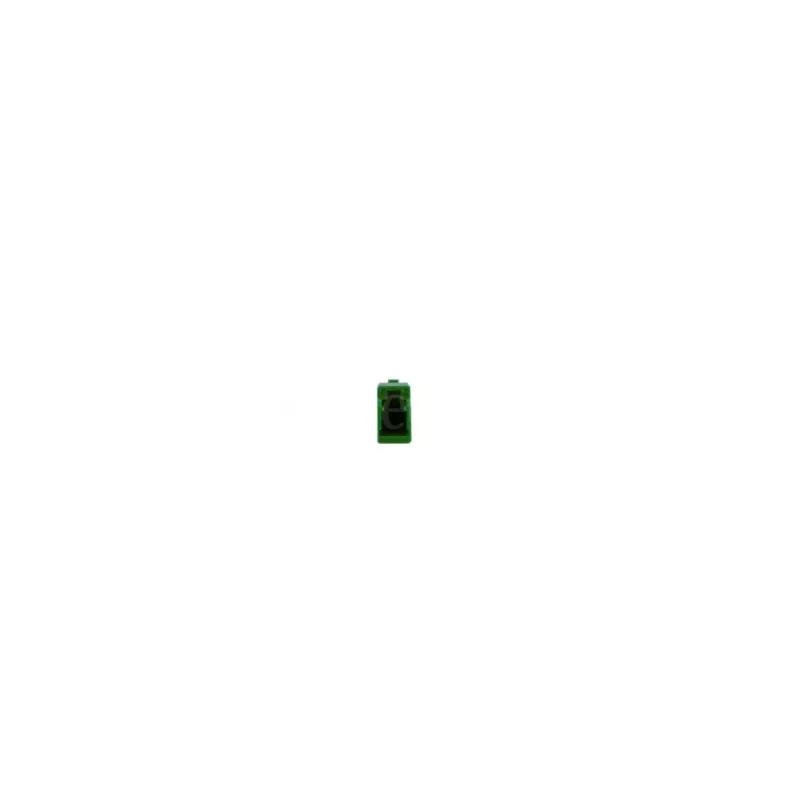

BlueOptics Singlemode LC/APC Simplex 9dB Fiber Optic Attenuator

The BlueOptics SFA21BM9 is a high-quality fixed in-line fiber optic attenuator designed for singlemode networks. It provides precise 9dB attenuation with LC/APC connectors in a simplex configuration, ensuring reliable signal reduction in optical communication systems.

Advantages

This attenuator offers excellent return loss (≥60 dB) and low insertion loss repeatability (≤0.2 dB), making it ideal for critical applications. The nickel-plated brass housing and zirconia ceramic ferrule ensure durability and stable performance over 500 matings. It operates across a wide temperature range (-20°C to +70°C) and complies with RoHS and IEC 61754-20 standards.

Suitable for

• Data centers
• Telecommunications networks
• FTTx installations
• Local area networks (LAN)
• CATV systems

Key specifications

• Attenuation: 9 dB (fixed)
• Fiber mode: Singlemode (SM)
• Connector input: LC/APC male
• Connector output: LC/APC female
• Polish: APC (Angled Physical Contact)
• Configuration: Simplex
• Wavelength range: 1310 nm / 1550 nm
• Return loss: ≥ 60 dB
• Insertion loss repeatability: ≤ 0.2 dB
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Durability: > 500 matings
• Housing material: Nickel-plated brass
• Ferrule material: Zirconia ceramic
• Compliance: RoHS, IEC 61754-20

Recommendations

For optimal performance, use this attenuator in singlemode fiber links requiring precise 9dB signal reduction. Ensure connectors are clean before mating to maintain low insertion loss and high return loss.
