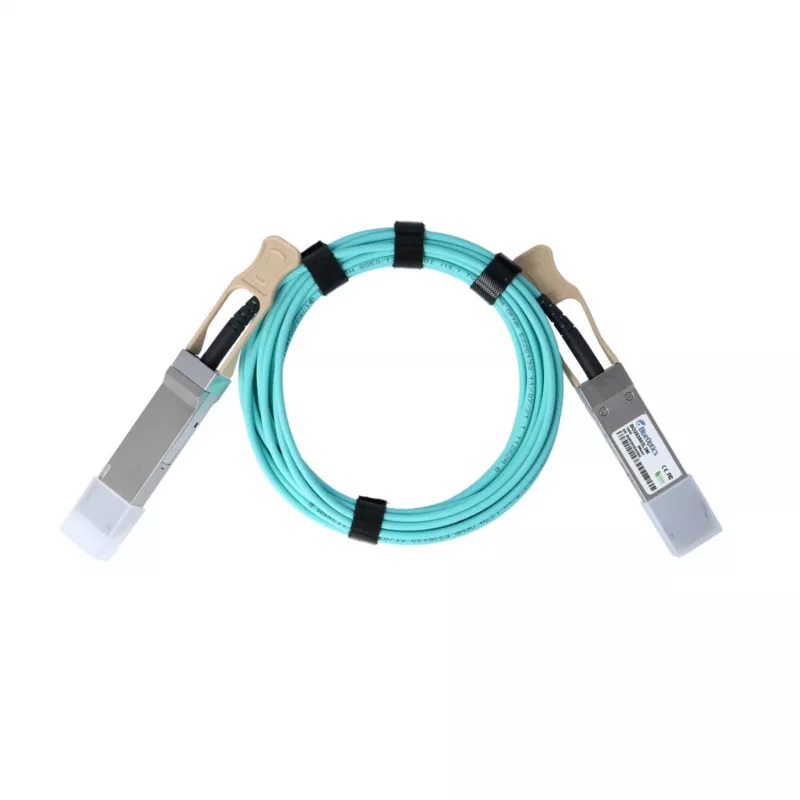

BlueOptics Synology QSFP-100G-AOC-50M compatibele AOC QSFP28 Active Optical Cable 50m

The BlueOptics BO282803L50M is a high-performance Active Optical Cable (AOC) designed as a direct replacement for the Synology QSFP-100G-AOC-50M. It delivers 100 Gigabit Ethernet connectivity over a 50-meter fiber optic link, ideal for data center interconnects, high-performance computing, and enterprise networking. With QSFP28 connectors on both ends, this hot-pluggable cable supports IEEE 802.3bm 100GBASE-SR4 standards and features low power consumption under 2.5W.

Advantages

This AOC cable offers a cost-effective, reliable alternative to original Synology optics while maintaining full compatibility. Its LSZH jacket ensures safety in confined spaces, and the built-in Digital Diagnostic Monitoring (DDM) provides real-time performance tracking. The 50-meter length allows flexible deployment in server rooms and data centers.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise network backbone links
• Synology QSFP-100G-AOC-50M compatible systems

Key specifications

• Product Type: Active Optical Cable (AOC)
• Data Rate: 100 Gbps (100GbE)
• Connector Type: QSFP28 to QSFP28
• Cable Length: 50 meters
• Wavelength: 850 nm
• Number of Channels: 4 (25 Gbps each)
• Cable Material: Fiber Optic
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Power Consumption: < 2.5 W
• Supply Voltage: 3.3 V
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Hot-Pluggable: Yes
• Digital Diagnostic Monitoring (DDM): Supported
• Compliance: CE, FCC, RoHS

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 100GBASE-SR4 modules. This cable is plug-and-play and requires no configuration. Ideal for short-reach, high-bandwidth connections within racks or between adjacent racks.
