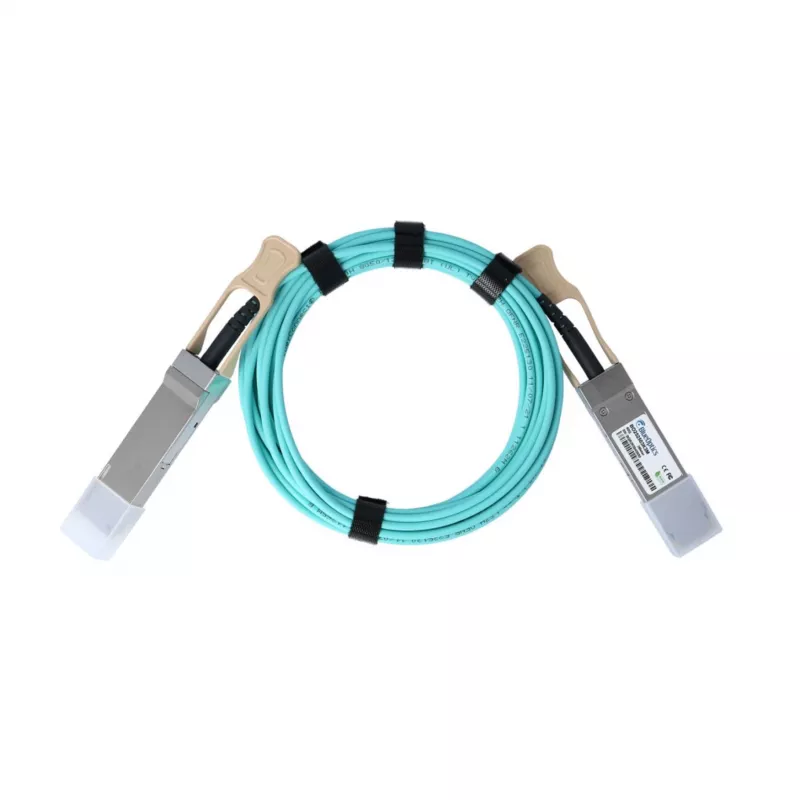

BlueOptics Synology QSFP-AOC-15M compatibele AOC QSFP28 100GbE 15m Active Optical Cable

The BlueOptics QSFP-AOC-15M-SG-BO is a high-performance Active Optical Cable (AOC) designed as a compatible replacement for the Synology QSFP-AOC-15M. It delivers 100 Gigabit Ethernet connectivity over a 15-meter fiber optic link, ideal for data center interconnects and high-performance computing environments.

Advantages

This AOC offers a cost-effective, plug-and-play solution with low power consumption (<2.5W per end) and full MSA compliance. The LSZH jacket ensures safety in confined spaces, while the integrated VCSEL-based optical engines provide reliable, high-speed data transmission.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking and server rooms
• Synology compatible systems requiring QSFP28 connectivity

Key specifications

• Product Type: Active Optical Cable (AOC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gigabit Ethernet (100GbE)
• Cable Length: 15 meters (49.2 ft)
• Form Factor: QSFP28
• Hot-Pluggable: Yes
• Power Consumption: < 2.5W per end
• Cable Material: Fiber Optic
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Supply Voltage: 3.3V
• Compliance: RoHS, CE, FCC, MSA
• Protocol Support: IEEE 802.3bm, InfiniBand EDR

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 100GbE interfaces. This cable is an ideal choice for short-reach, high-bandwidth links within racks or between adjacent racks.
