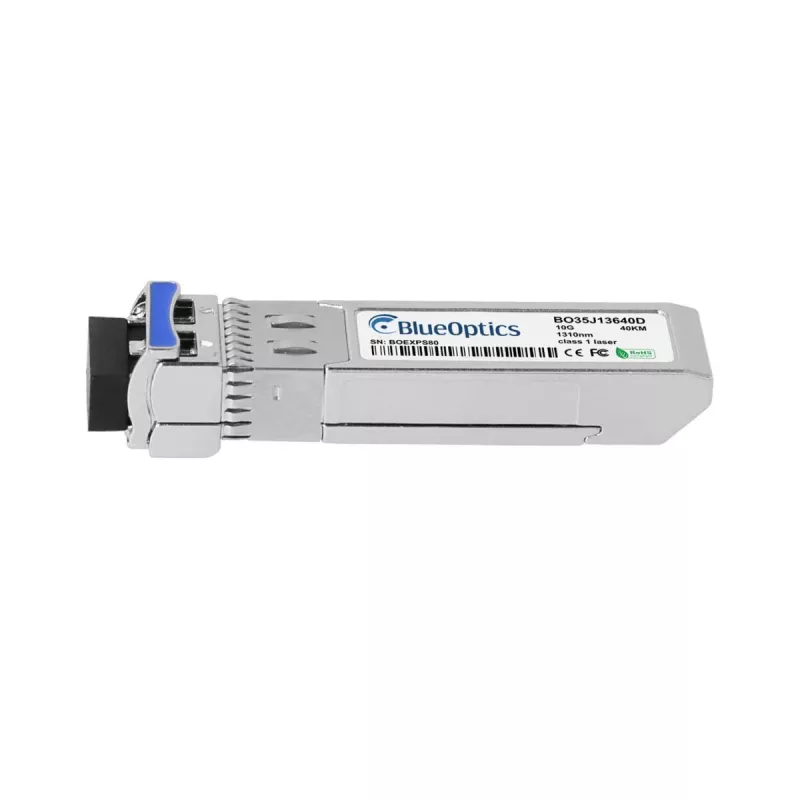

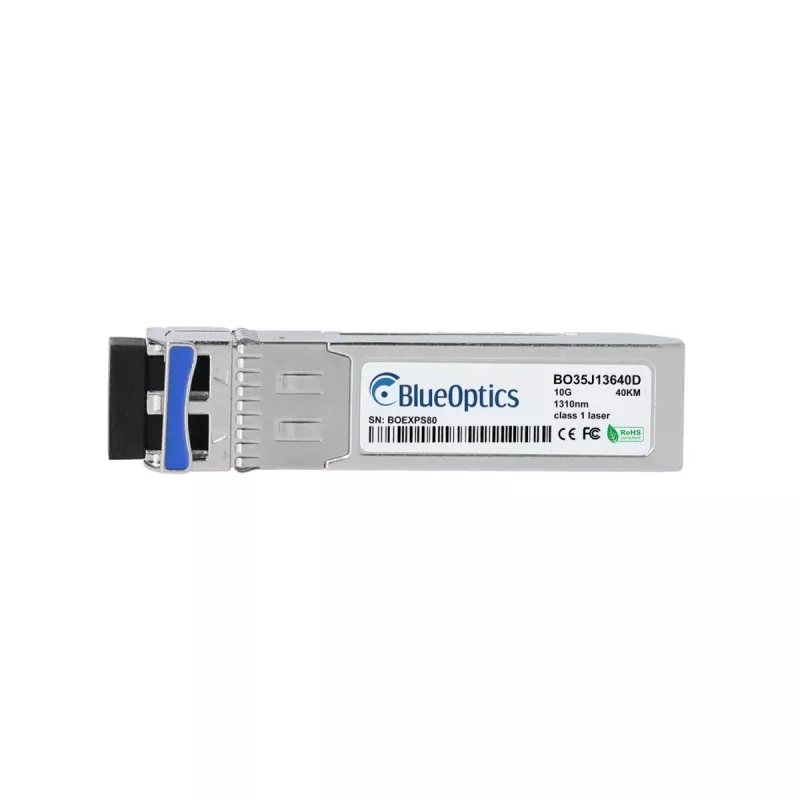

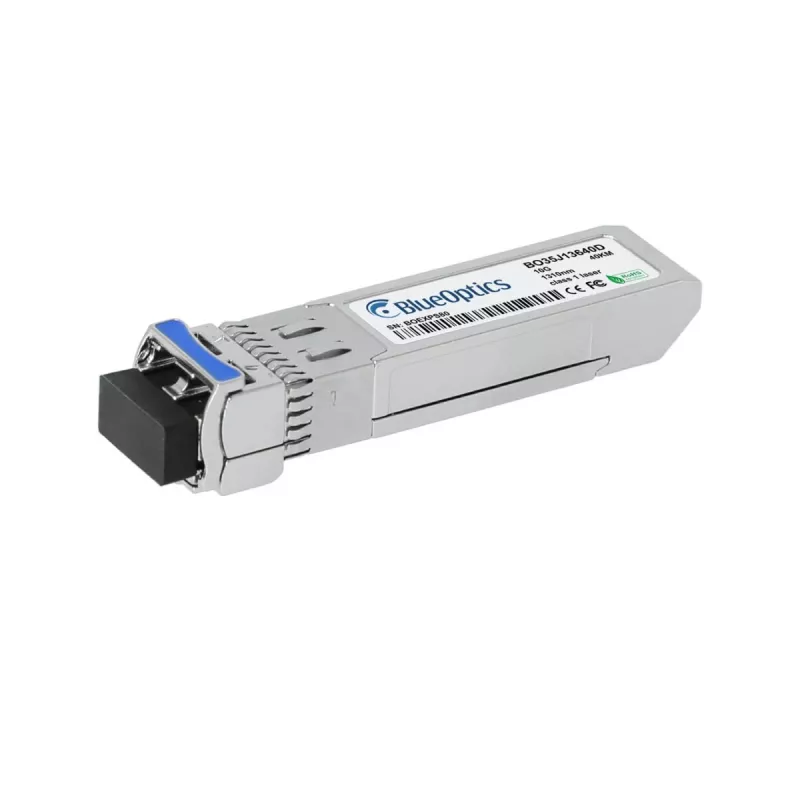

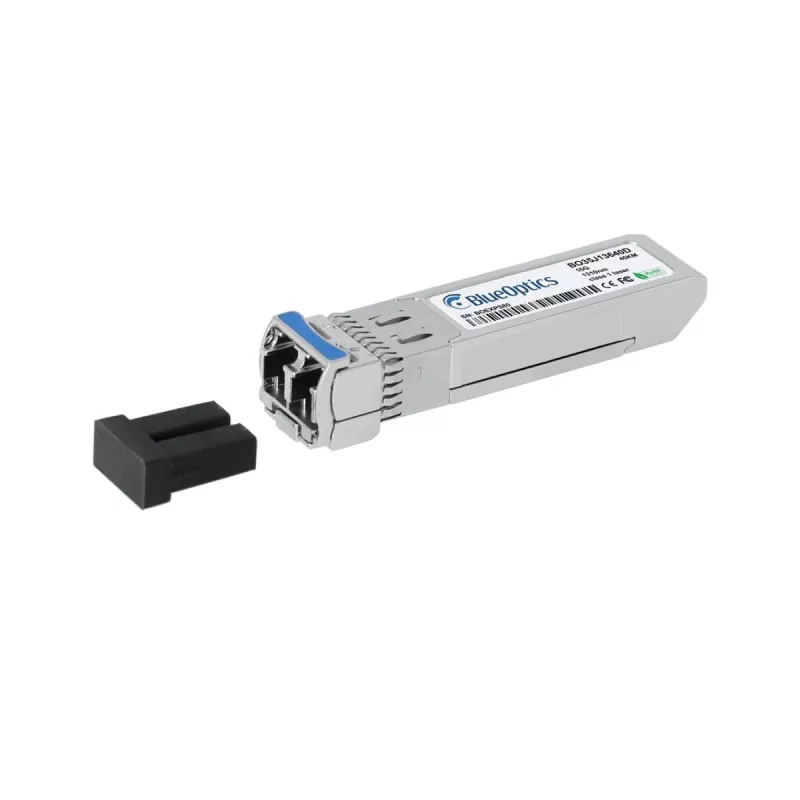

BLUEOPTICS Synology SFP-10G-ER-1310 Compatible SFP+ transceiver 10Gbps 40km LC SMF

The BLUEOPTICS SFP-10G-ER-1310-SG-BO is a high-performance SFP+ transceiver designed for seamless compatibility with Synology SFP-10G-ER-1310 equipment. It delivers reliable 10 Gigabit Ethernet connectivity over single-mode fiber at distances up to 40 km, making it ideal for data center interconnects and enterprise networks.

Advantages

This transceiver offers hot-pluggable convenience, low power consumption under 1.5W, and full DDM/DOM support for real-time monitoring. It is CE, FCC, and RoHS certified, ensuring compliance with international standards.

Suitable for

• 10 Gigabit Ethernet networks
• Data center interconnects
• Enterprise network backbone
• Synology compatible systems

Key specifications

• Transceiver Type: SFP+
• Data Rate: 10 Gbps
• Wavelength: 1310 nm
• Max Distance: 40 km
• Fiber Type: Single-Mode (SMF)
• Connector: LC Duplex
• DDM/DOM: Yes
• Power Consumption: < 1.5 W
• Operating Temperature: 0°C to 70°C
• Laser Type: DFB
• Tx Power: -1 to 4 dBm
• Rx Sensitivity: < -15 dBm
• Overload: 0 dBm

Recommendations

For optimal performance, use with single-mode fiber patch cables and ensure proper handling of optical connectors. This transceiver is a cost-effective alternative to OEM modules.
