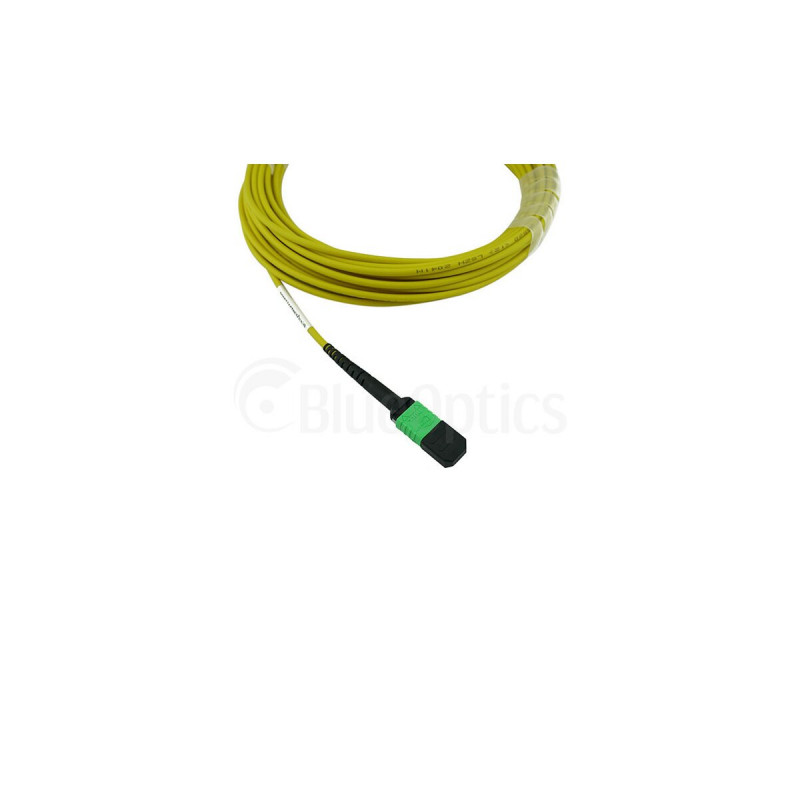

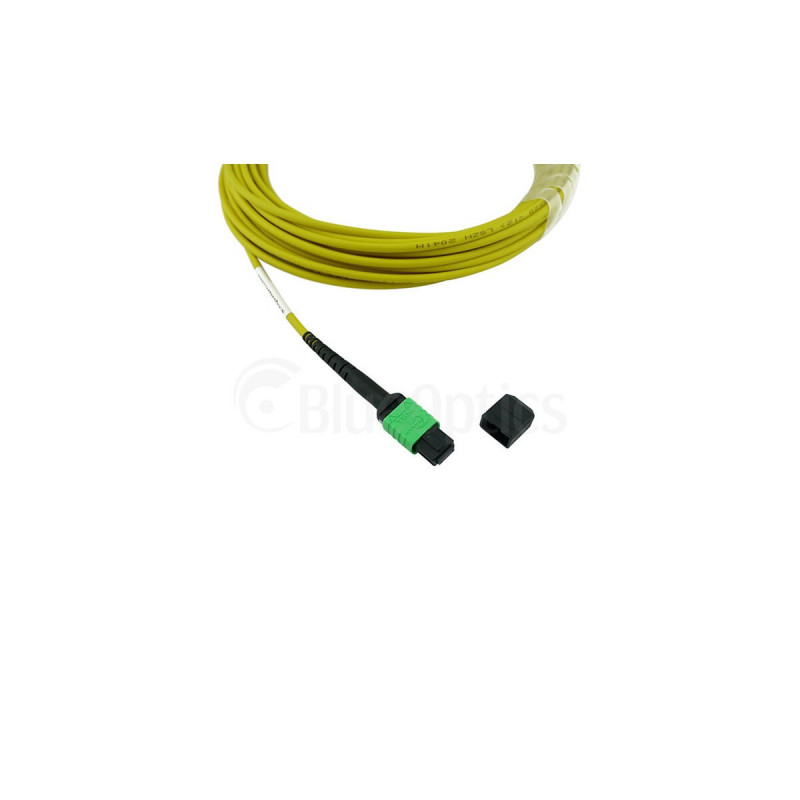

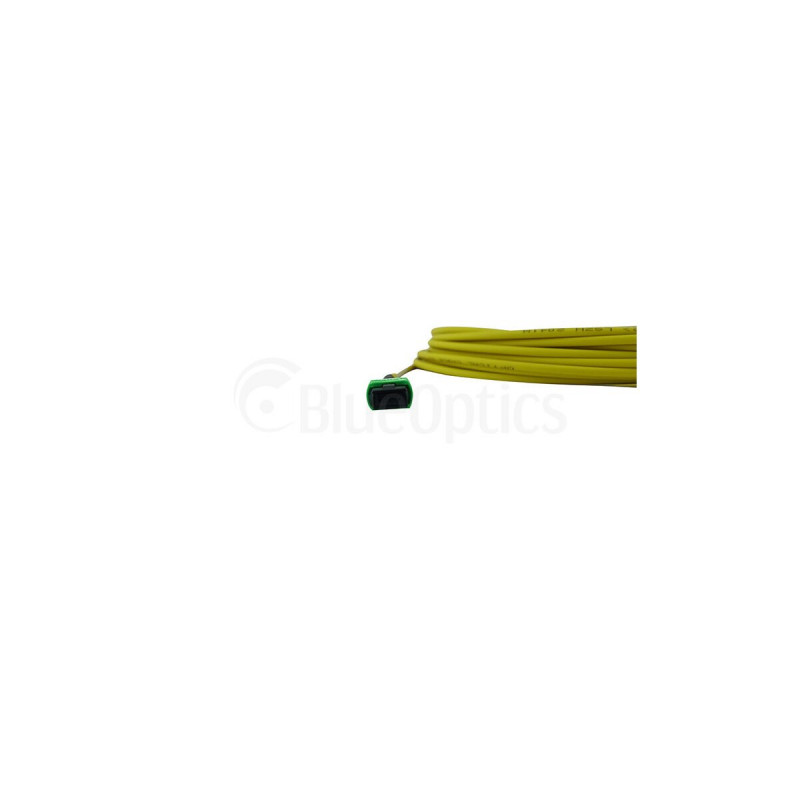

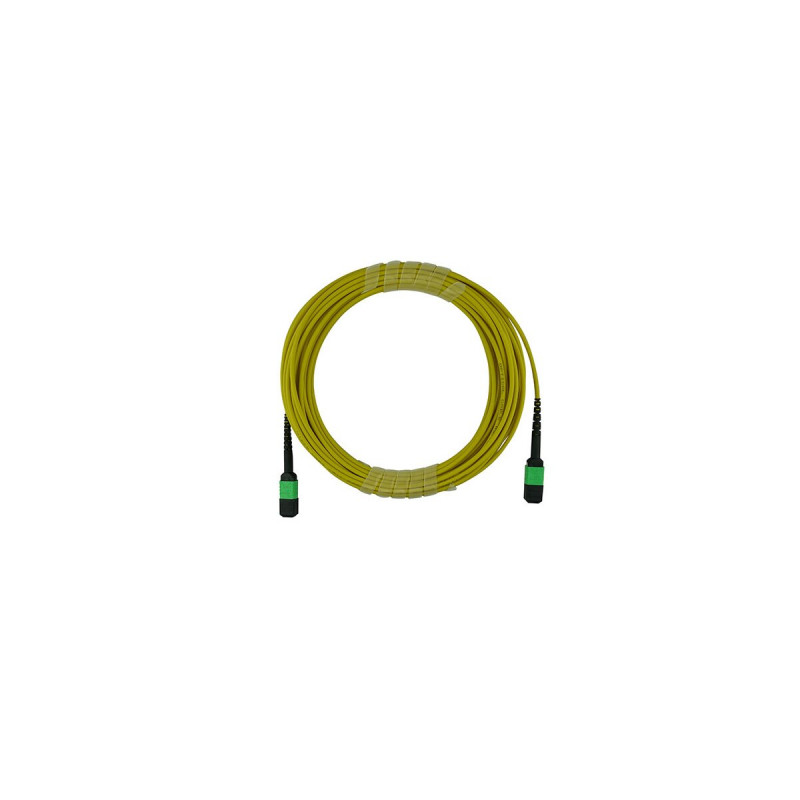

BlueOptics UACC-OFC-SA-MPMP-5M compatibele MPO-MPO singlemode OS2-patchkabel 5 meter

Fiber optic patch cable engineered for high-density MPO-MPO interconnects in singlemode OS2 networks. Delivers reliable 12-fiber parallel transmission over a 5-meter reach with low insertion loss and a durable LSZH jacket.

Advantages

MPO connectors with ceramic ferrules and UPC polish ensure stable optical performance. The yellow LSZH jacket is flame-retardant and low-smoke, ideal for data centers and enterprise environments. Supports high-speed protocols like 40G and 100G when used with appropriate transceivers.

Suitable for

• Data center backbone and high-density patching
• Telecommunications central offices and headends
• Enterprise network core and SAN connections
• MPO-based OS2 singlemode fiber systems

Key specifications

• Cable type: Singlemode OS2 fiber optic patch cable
• Connectors: MPO (female) to MPO (female), 12-fiber
• Length: 5 meters
• Jacket: LSZH, yellow, 3.0 mm diameter
• Insertion loss: ≤ 0.35 dB typical
• Return loss: ≥ 50 dB
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC-61754-7

Recommendations

For optimal performance, pair with BlueOptics MPO-compatible transceivers and cassettes. Use in structured cabling systems where high fiber count and space efficiency are critical.
