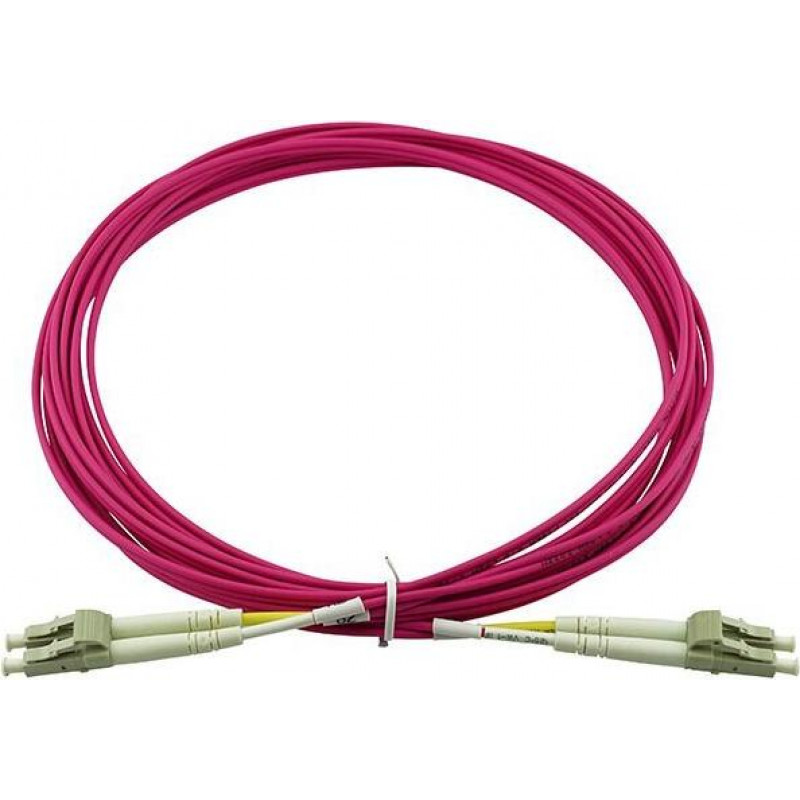

BlueOptics Ubiquiti UACC-OFC-M2-LULU-5M LC-LC Multimode-OM4-patchkabel 5 meter

For network engineers who demand headroom, the BlueOptics UACC-OFC-M2-LULU-5M is an OM4 multi-mode fiber patch cable that pushes 10/40/100 Gbps over short distances without the cost of single-mode optics. Its laser-optimized 50/125 µm core and aqua LSZH jacket set it apart from basic OM3 jumpers, delivering lower insertion loss and higher bandwidth for high-density Ubiquiti deployments.

Highlights

• OM4 laser-optimized multi-mode fiber, 50/125 µm core/cladding
• LC duplex to LC duplex connectors, 5-meter length
• LSZH (Low Smoke Zero Halogen) aqua jacket for safety in enclosed spaces
• Insertion loss < 0.3 dB, return loss > 30 dB
• Supports 10G, 40G, and 100G Ethernet up to 150 m (OM4 spec)
• Compliant with TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173

In daily use

This patch cable connects switches, routers, and servers in data centers, enterprise wiring closets, or campus backbones. The LSZH jacket emits minimal smoke and no halogen gases in a fire, making it suitable for plenum-like environments where safety codes apply. The aqua color instantly identifies OM4 fiber, preventing accidental mixing with single-mode or lower-grade multi-mode cables. Bend-insensitive construction reduces signal loss when routed through tight cable managers.

Full specifications

• Cable type: Fiber optic patch cable, multi-mode OM4
• Connectors: LC duplex (male) to LC duplex (male)
• Length: 5 meters (16.4 ft)
• Core/cladding: 50/125 µm
• Jacket material: LSZH
• Jacket color: Aqua
• Insertion loss (max): < 0.3 dB
• Return loss (min): > 30 dB
• Attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/km @ 1300 nm
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to 70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173

Final note

BlueOptics builds this cable for Ubiquiti UACC-compatible hardware, but it works with any standard LC OM4 port. If you need a dependable 5-meter link for 10G or faster, this is a straightforward, standards-compliant choice.
