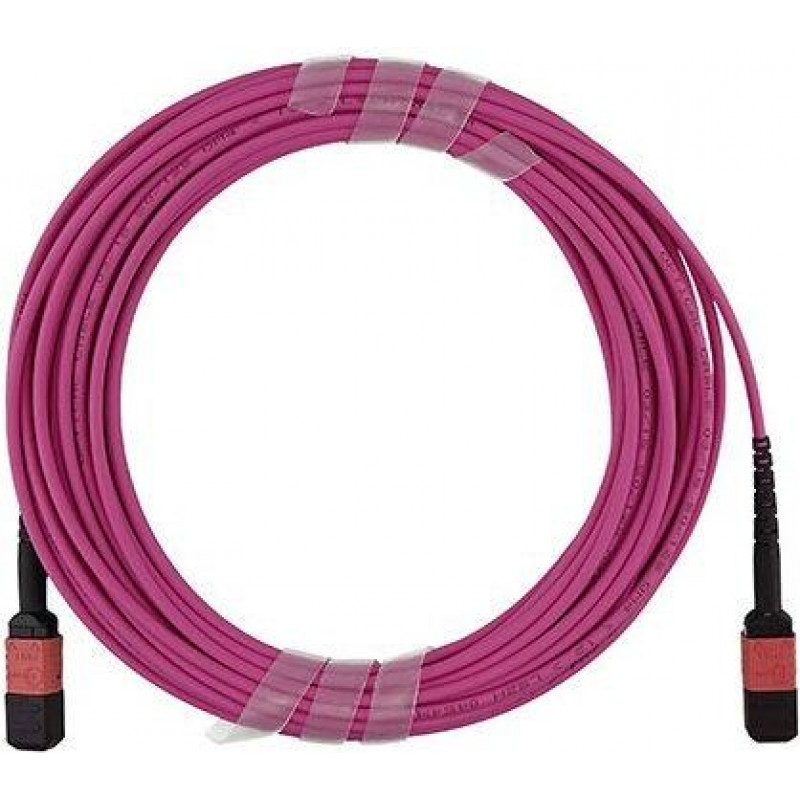

BlueOptics Ubiquiti UACC-OFC-MA-MPMP-5M MPO-MPO Multimode-OM4-patchkabel 5 meter

Fiber optic patch cable engineered for high-density data center interconnects, delivering up to 100 Gbps over multi-mode OM4 fiber with a 5-meter reach. Its MPO-MPO male connectors and 12-fiber ribbon design enable efficient trunking between switches, transceivers, and patch panels, while the aqua LSZH jacket ensures safety in plenum spaces.

Advantages

The OM4 laser-optimized core supports 40G and 100G Ethernet links up to 150 meters, making it ideal for backbone and aggregation layers. Low insertion loss (≤0.35 dB per connector) and high return loss (≥20 dB) guarantee reliable signal integrity. The LSZH jacket emits minimal smoke and toxic fumes in case of fire, meeting strict building codes. Push-pull MPO connectors allow quick installation and removal without tools.

Suitable for

• Ubiquiti UniFi and EdgeSwitch deployments requiring MPO trunk cables
• 40GBASE-SR4 and 100GBASE-SR4 parallel optics links
• High-density fiber patching in data centers and server rooms
• Structured cabling systems with OM4 backbone requirements
• Telecom central offices and enterprise network core switches

Key specifications

• Cable Type: Fiber Optic Patch Cable, Multi-mode OM4
• Connectors: MPO Male to MPO Male, 12 fibers
• Length: 5 meters
• Core/Cladding: 50/125 µm
• Wavelength: 850 nm / 1300 nm
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Insertion Loss: ≤0.35 dB per connector
• Return Loss: ≥20 dB
• Jacket: Aqua LSZH (Low Smoke Zero Halogen)
• Polishing: PC (Physical Contact)
• Compatibility: Ubiquiti UACC-OFC-MA-MPMP series

Recommendations

For optimal performance, pair with Ubiquiti MPO transceivers and cassettes. Test each link after installation with an MPO power meter to verify loss budgets. Use dust caps when not in use to prevent contamination of the MPO ferrules.
