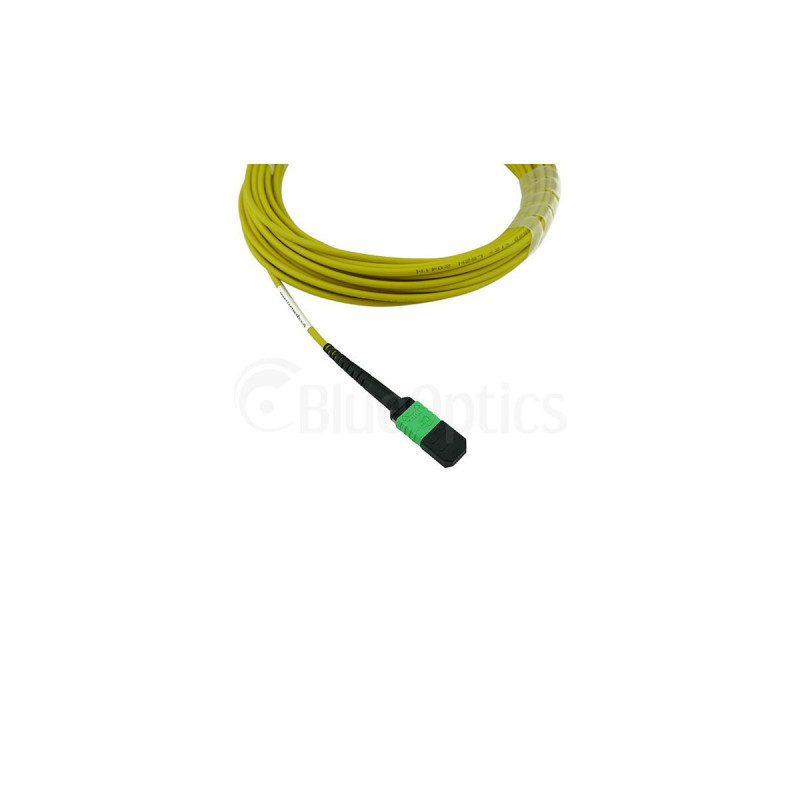

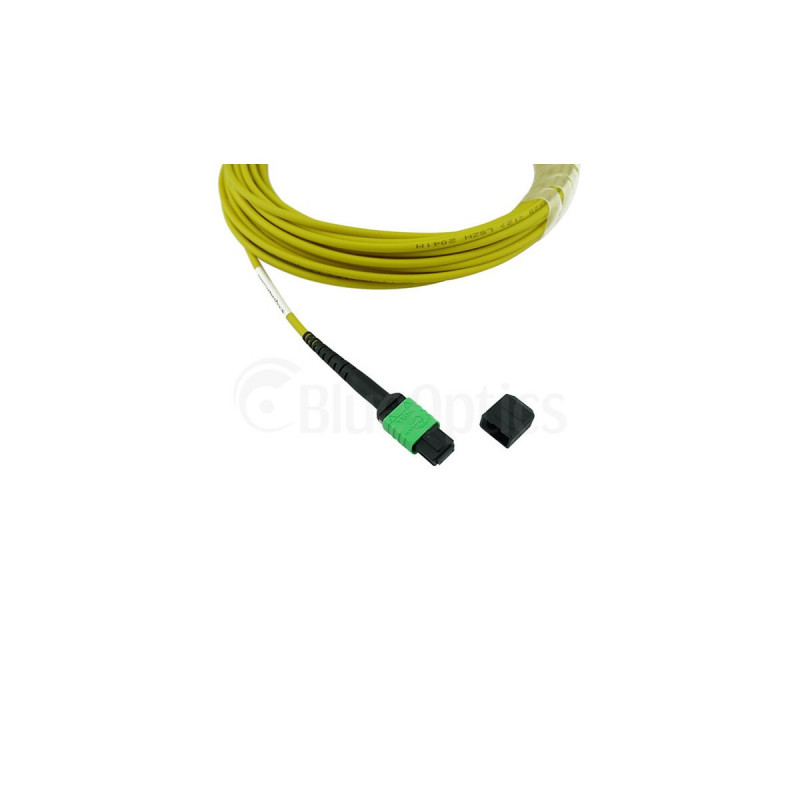

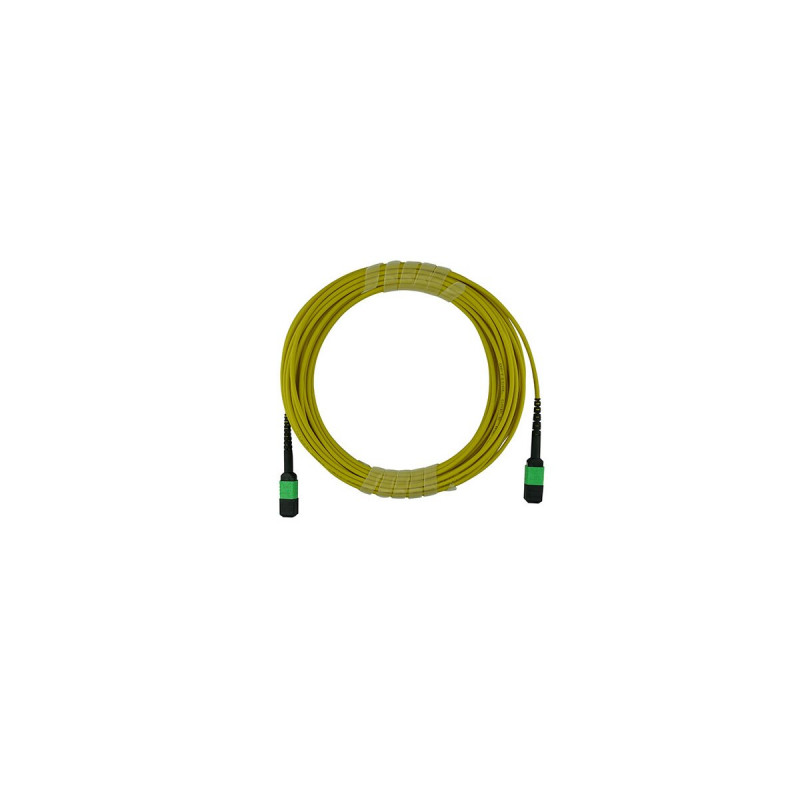

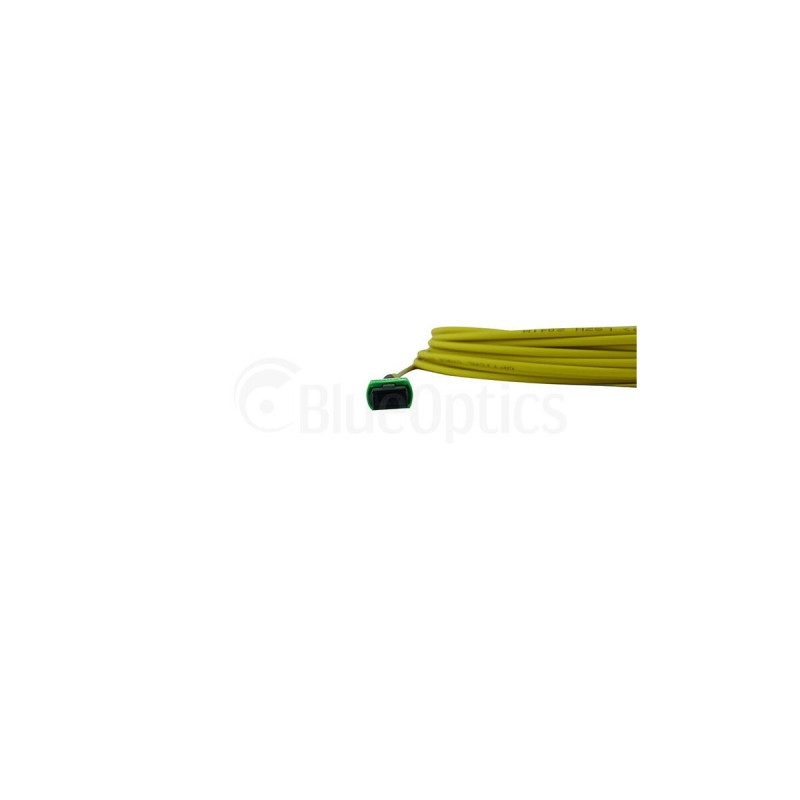

BlueOptics Ubiquiti UACC-OFC-SA-MPMP-10M MPO-MPO Singlemode OS2-patchkabel 10 meter

The BlueOptics UACC-OFC-SA-MPMP-10M is a high-density MPO to MPO single-mode OS2 fiber optic patch cable engineered for data centers and telecommunication networks where space and performance are critical. Unlike standard duplex patch cords, this cable consolidates 12 fibers into a single compact connector, enabling rapid deployment of parallel optics and reducing cable clutter. Its 10-meter length provides flexibility for rack-to-rack or inter-rack connections, while the Type B polarity ensures seamless compatibility with standard MPO cassettes and transceivers.

Highlights

• 12-fiber MPO to MPO connectors with UPC ferrule polish for low insertion loss
• Single-mode OS2 fiber compliant with ITU-T G.652.D and G.657.A1 standards
• Type B (cross-over) polarity for straightforward link mapping
• LSZH (Low Smoke Zero Halogen) yellow jacket for safety in enclosed spaces
• 10-meter length ideal for structured cabling in data centers
• RoHS and CE compliant, meeting IEC 61754-7 and TIA/EIA-604-5

In daily use

This patch cable simplifies high-density fiber deployments. The push-pull MPO connectors allow quick connection and removal, even in crowded patch panels. The 3.0 mm diameter cable is flexible yet robust, with a bend-insensitive fiber design that maintains signal integrity in tight routing. The LSZH jacket emits low smoke and no halogen gases in case of fire, making it suitable for environments with strict safety regulations. The yellow color provides instant identification as single-mode fiber, reducing the risk of misconnection. With a maximum insertion loss of 0.35 dB per connector and a minimum return loss of 50 dB, it ensures reliable transmission for 10G, 40G, and 100G applications.

Full specifications

• Connector A: MPO female (12 fibers, UPC polish)
• Connector B: MPO female (12 fibers, UPC polish)
• Fiber type: Single-mode OS2, 9/125 µm
• Cable length: 10 meters
• Polarity: Type B (cross-over)
• Jacket material: LSZH, yellow
• Cable diameter: 3.0 mm
• Insertion loss: ≤ 0.35 dB per connector
• Return loss: ≥ 50 dB
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Standards: IEC 61754-7, TIA/EIA-604-5, RoHS, CE

Final note

For high-density fiber infrastructure, the BlueOptics UACC-OFC-SA-MPMP-10M delivers consistent performance and easy installation, making it a practical choice for modern network architectures.
