BlueOptics X66211B-0.5-BL InfiniBand-kabel 0,5 m QSFP28 zwart

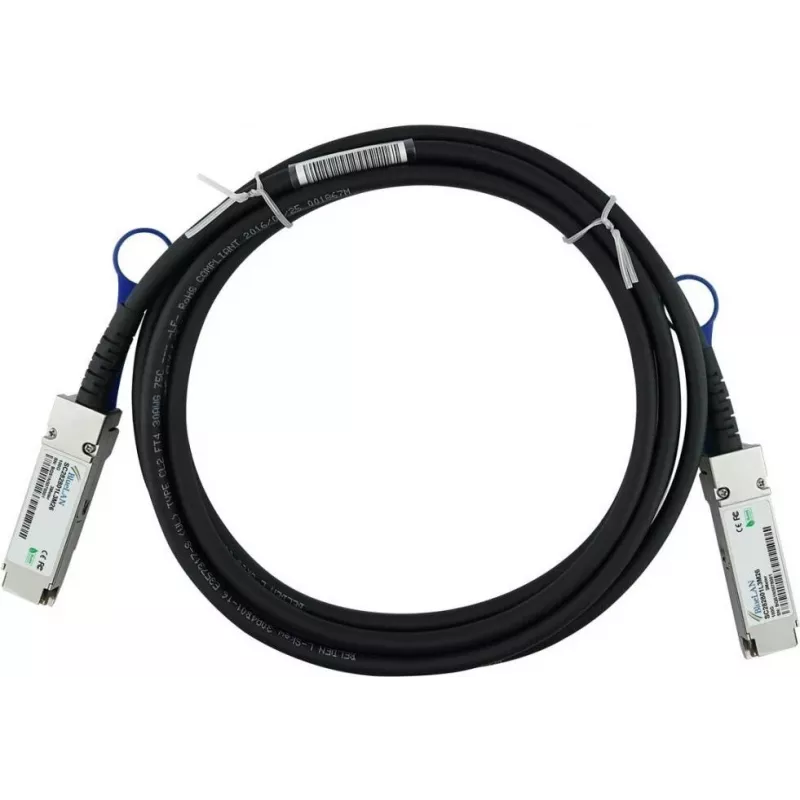

The BlueOptics X66211B-0.5-BL is a high-performance InfiniBand Direct Attach Copper (DAC) cable designed for high-speed data transmission in demanding environments. With a length of 0.5 meters and QSFP28 connectors on both ends, this passive copper cable supports EDR (Enhanced Data Rate) at 100 Gb/s, making it ideal for high-performance computing (HPC), data centers, and enterprise networking.

Advantages

This cable offers reliable, low-latency connectivity with zero power consumption, as it requires no external power source. Its passive design ensures durability and cost-effectiveness, while the gold-plated connectors provide excellent signal integrity and corrosion resistance. The black PVC jacket adds flexibility and protection for easy installation in tight spaces.

Suitable for

• High-Performance Computing (HPC) clusters
• Data center interconnects
• Enterprise networking equipment
• InfiniBand EDR switches and adapters

Key specifications

• Cable Type: InfiniBand Direct Attach Copper (DAC)
• Connector Type: QSFP28 to QSFP28
• Cable Length: 0.5 m
• Data Rate: 100 Gb/s
• InfiniBand Standard: EDR (Enhanced Data Rate)
• Cable Color: Black
• Cable Material: Copper
• Active/Passive: Passive
• Impedance: 100 Ohm
• Compliance: IBTA InfiniBand EDR, SFF-8665
• Hot-Swappable: Yes
• Jacket Material: PVC
• Connector Plating: Gold
• RoHS Compliant: Yes
• Power Consumption: 0 W
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, ensure that both connected devices support QSFP28 and InfiniBand EDR. This cable is a direct replacement for OEM part X66211B-0.5-BL and is compatible with BlueLAN SC282801L0.5M30.
