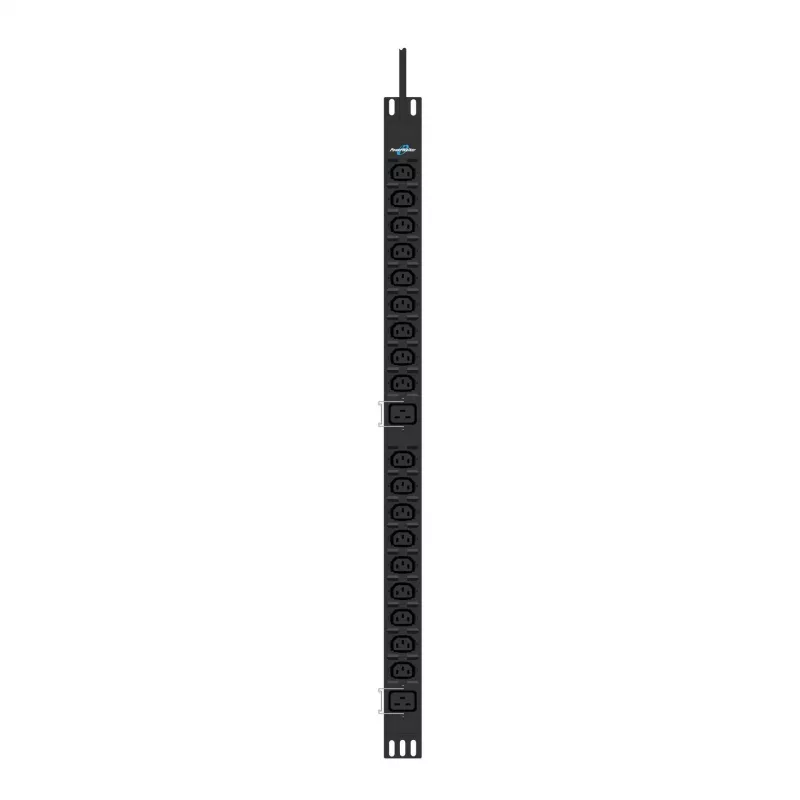

BLUEWALKER PowerWalker PDU PHB10 18xC13 2xC19 Basic Rack-PDU, 1U 19 inch rackmontage, 16A, IEC C20-ingang, 3680W

For data centers and server rooms that demand reliable, no-frills power distribution in a compact 1U form factor, the PowerWalker PDU PHB10 stands out with its generous 20-outlet configuration—18 IEC C13 and 2 IEC C19—all fed from a single IEC C20 inlet. This basic rack PDU delivers up to 16A at 200-240V, translating to a robust 3680W capacity, making it an ideal choice for high-density rack environments where every outlet counts.

Highlights

• 20 total outlets: 18x IEC C13 and 2x IEC C19 for versatile equipment compatibility
• 1U horizontal rackmount design saves valuable rack space
• 16A circuit breaker provides overload protection
• 3m input cable with IEC C20 connector for flexible installation
• Aluminum housing ensures durability and efficient heat dissipation
• CE and RoHS certified for safety and environmental compliance

In daily use

Installation is straightforward: mount the unit in any standard 19-inch rack using the included brackets, connect the 3-meter input cable to a compatible IEC C19 outlet (typically from a UPS or mains supply), and you're ready to distribute power to up to 20 devices. The mix of C13 and C19 outlets accommodates both standard servers and higher-power equipment like blade chassis or large network switches. The built-in 16A circuit breaker automatically trips in case of overload, protecting connected equipment from damage. With no management features, this PDU is perfect for environments where simple, reliable power distribution is all that's needed—no configuration, no network setup, just plug and power.

Full specifications

• PDU Type: Basic Rack PDU
• Form Factor: 1U Horizontal Rackmount
• Input Connector: 1x IEC C20
• Input Voltage: 200-240V AC
• Input Current: 16A
• Max Power Capacity: 3680W
• Output Connectors: 18x IEC C13, 2x IEC C19
• Output Voltage: 200-240V AC
• Circuit Breaker: 16A
• Input Cable Length: 3m
• Housing Material: Aluminum
• Mounting: 19-inch Rackmount
• Operating Temperature: 0 - 45°C
• Operating Humidity: 10 - 90% RH (non-condensing)
• Certifications: CE, RoHS
• Management Features: None (Basic PDU)
• Protection Features: Overload Protection
• Phase: Single-phase

Final note

Built for simplicity and reliability, the PowerWalker PDU PHB10 delivers essential power distribution without complexity, ensuring your critical equipment stays powered in any rack environment.
