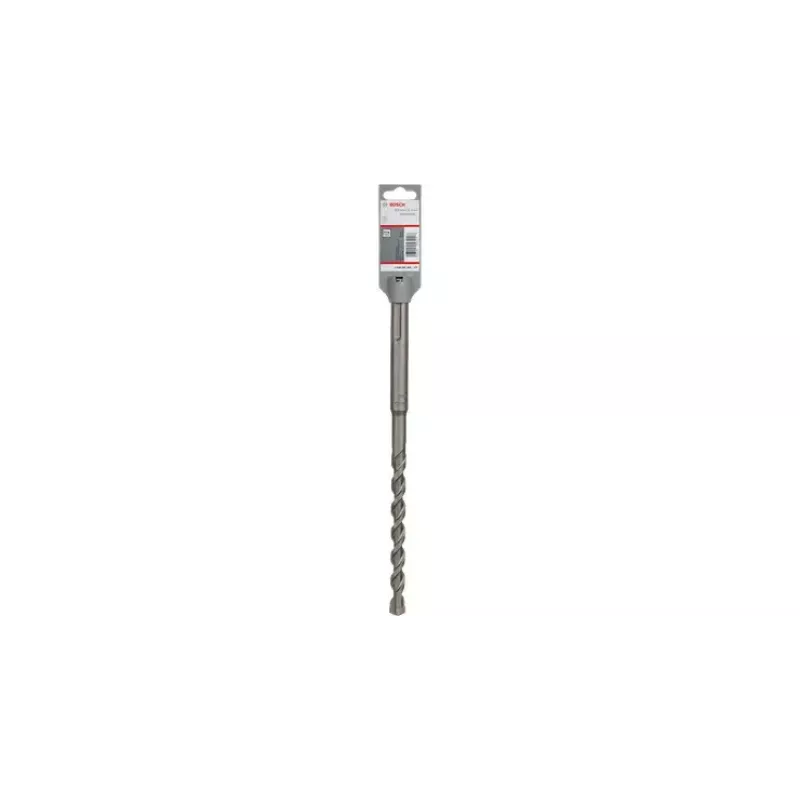

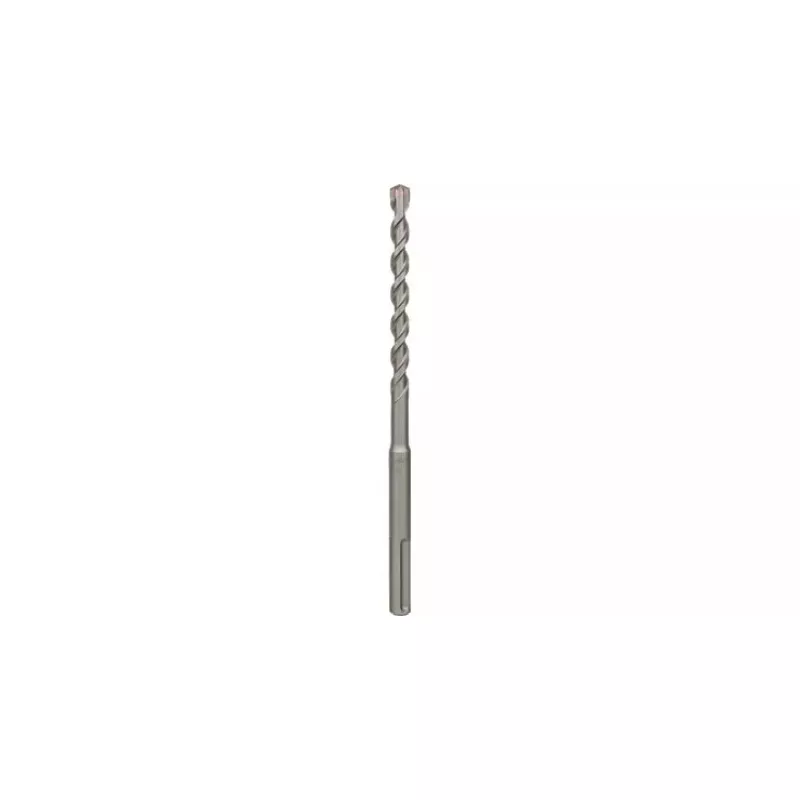

Boor Bosch SDS max-4 2608685865

SDS max-4 Drill Bits by Bosch (model 2608685865) are designed for drilling in concrete and masonry. The bit features a four-cutter head and a 2-flute U-shaped body that improves dust removal and extends service life. Constructed with a wear-resistant carbide tip, it is compatible with rotary hammers that accept SDS max holders.

Advantages

The four-cutter head reduces the risk of jamming when encountering rebar and provides consistent cutting performance in concrete. The U-shaped 2-flute geometry contributes to efficient dust evacuation and longer bit life. A durable carbide construction increases wear resistance for prolonged use under heavy-duty conditions.

Suitable for

• Drilling into concrete
• Drilling into masonry
• Use with SDS max rotary hammers
• Applications where rebar may be present

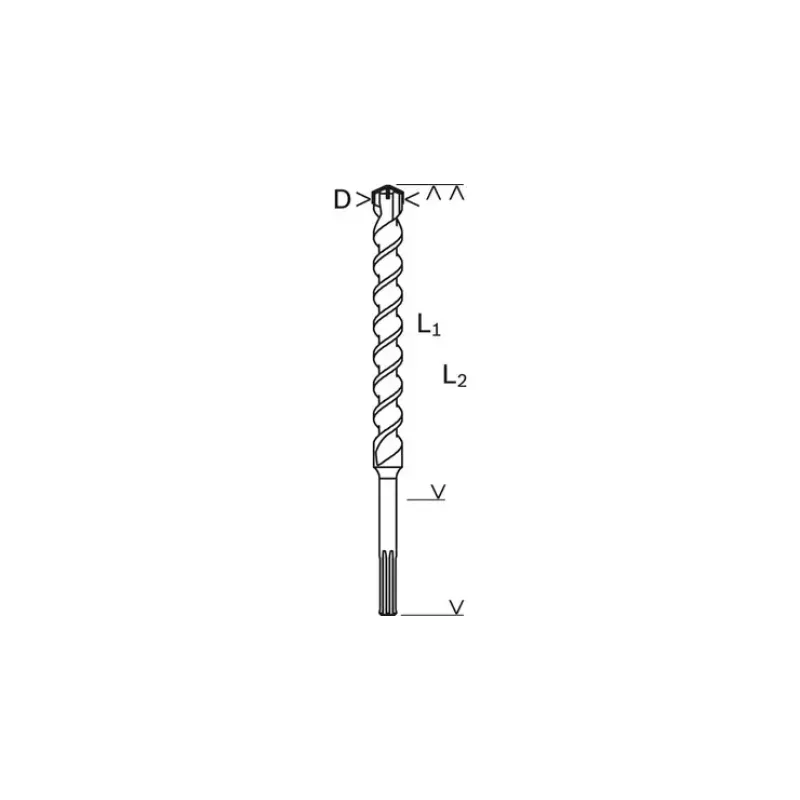

Key specifications

• Brand: Bosch
• Model / MPN: 2608685865
• Shank type: SDS max
• Tip material: carbide
• Head design: 4-cutter
• Flute: 2-flute, U-shaped for dust removal
• Suitable materials: concrete, masonry
• EAN: 3165140564168

How to use

Install the SDS max shank securely into a compatible rotary hammer. Select the appropriate drill diameter for the task and start drilling at a low speed to establish the hole, then apply steady pressure and increase speed as needed. Withdraw the bit periodically to clear dust and improve cooling. If the bit contacts rebar, reduce pressure and allow the bit to cut through without forcing to avoid damage.

Recommendations

Use appropriate personal protective equipment, including eye and hearing protection and a dust mask. For prolonged drilling or large holes, use water suppression only if compatible with the rotary hammer; otherwise, remove dust frequently. Store bits in a dry place to prevent corrosion of the shank.
