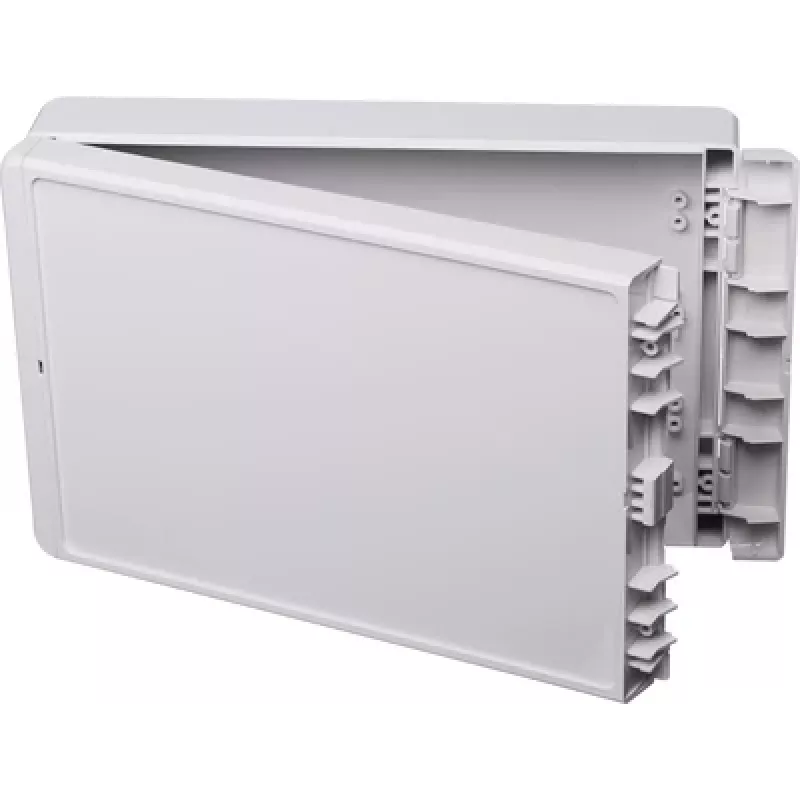

BOPLA EUROMAS II wandbehuizing, polycarbonaat, lichtgrijs (RAL 7035), 271 x 170 x 60 mm, IP65, IK08 96016325

The BOPLA EUROMAS II wall-mount enclosure stands out with its robust polycarbonate construction and IP65 protection, making it a reliable choice for housing electronics in demanding environments. Its light grey finish (RAL 7035) offers a professional appearance suitable for industrial and commercial installations.

Highlights

• High-impact polycarbonate (PC) body with IK08 impact resistance
• IP65 sealed against dust and water jets
• Captive stainless steel lid screws for secure closure
• Integrated polyurethane foam gasket ensures reliable sealing
• Wall mounting via screw channels outside the sealed area

In daily use

The enclosure provides internal mounting bosses for PCBs or mounting plates, simplifying assembly. Its wide operating temperature range from -40°C to +100°C and good UV and chemical resistance make it suitable for both indoor and outdoor applications. The halogen-free material meets strict environmental requirements.

Full specifications

• Material: Polycarbonate (PC)
• Colour: Light Grey (RAL 7035)
• External dimensions (W x H x D): 271 x 170 x 60 mm
• Protection class: IP65
• Impact resistance: IK08
• Flammability rating: UL 94 V-0
• Operating temperature range: -40°C to +100°C
• Lid fasteners: Stainless steel screws (captive)
• Gasket material: Polyurethane (PU) foam
• Mounting type: Wall mounting
• RoHS compliant: Yes
• Halogen-free: Yes

Final note

With its combination of durability, sealing, and ease of installation, the BOPLA EUROMAS II is a dependable enclosure for a wide range of electrical and electronic projects.
