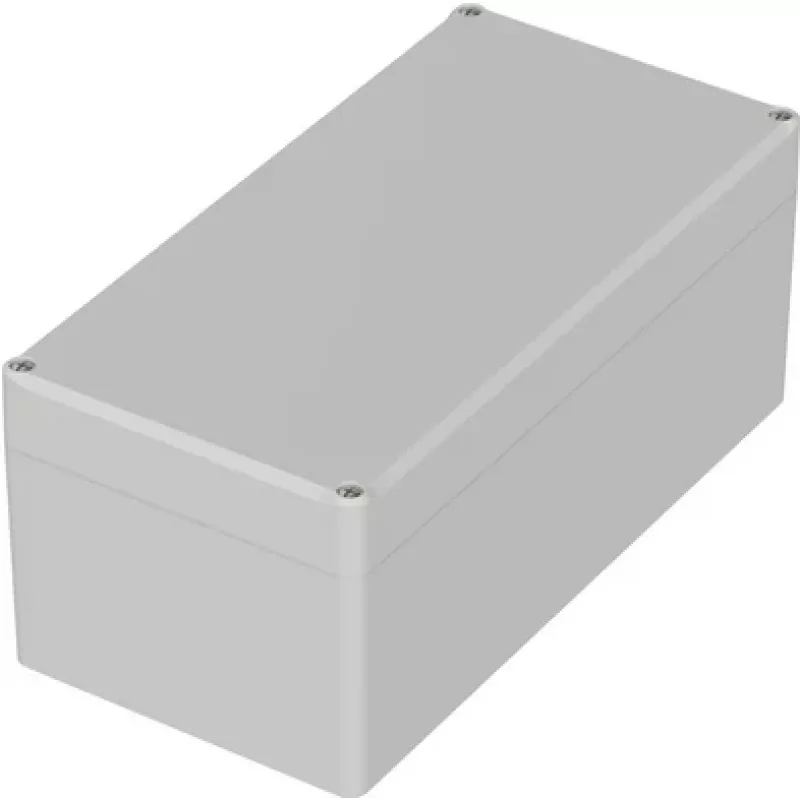

Bopla universele behuizing 240 x 120 x 102 mm ABS lichtgrijs RAL 7035 ET 242 63242000

For engineers and technicians building industrial control systems, measurement devices, or custom electronics, this Bopla universal enclosure provides a robust housing solution. The ET 242 model offers generous internal space and reliable protection for sensitive components in demanding environments.

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• External dimensions (L x W x H): 240 x 120 x 102 mm
• Internal dimensions (L x W x H): 234 x 114 x 95 mm
• Colour: Light Grey (RAL 7035)
• Protection class: IP65
• Temperature range: -40 °C to +80 °C
• Flammability rating: UL 94 HB
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PUR)
• Impact resistance: IK07
• Wall thickness: 3 mm

Why choose it

The enclosure's IP65 rating ensures dust-tightness and protection against water jets, making it suitable for use in harsh industrial settings. The ABS material offers a good balance of impact resistance and surface quality, while the polyurethane gasket maintains a reliable seal over time. Integrated mounting bosses simplify installation of PCBs or mounting plates.

Ideal use cases

• Industrial electronics housings
• Control systems and automation
• Measurement and instrumentation devices
• Custom electronics projects requiring environmental protection

Good to know

The enclosure includes a base, lid, four stainless steel lid screws, and a polyurethane gasket. It is RoHS compliant and suitable for a wide range of general-purpose applications.
