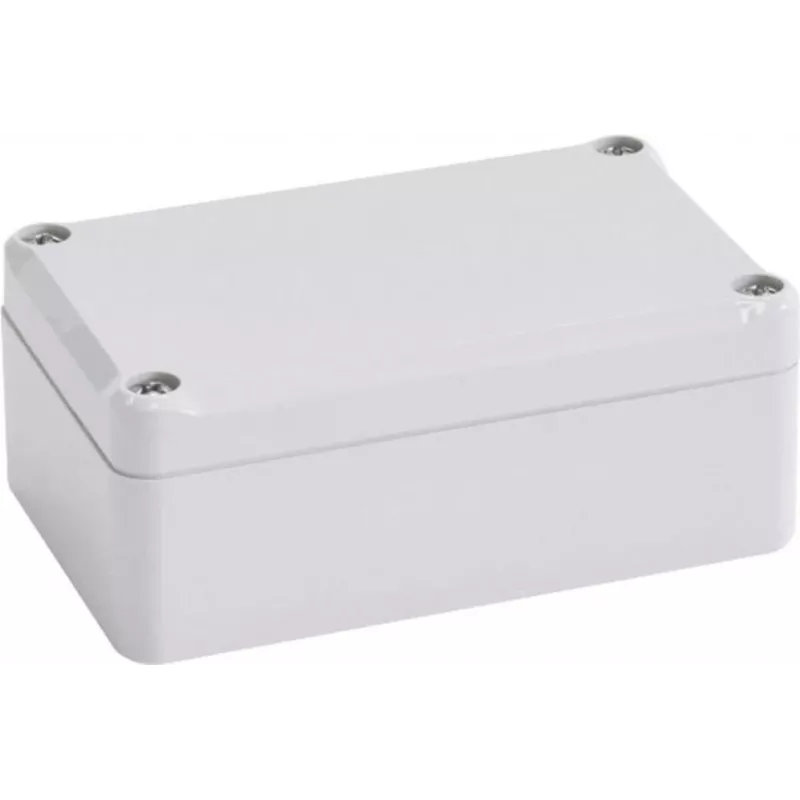

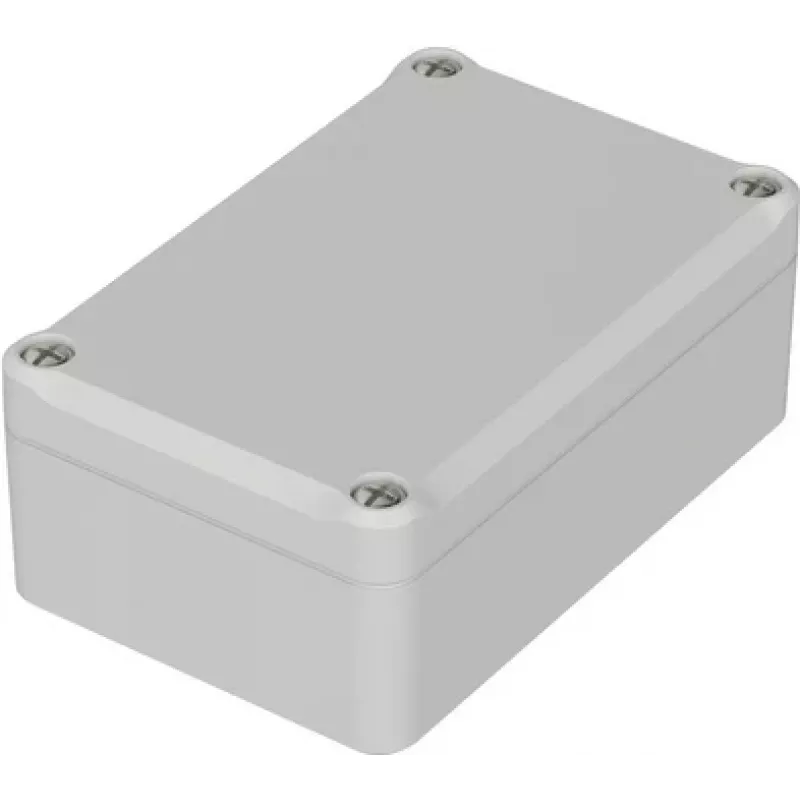

Bopla universele behuizing 98 x 64 x 38 mm ABS lichtgrijs RAL 7035 ET 208 63208000

Protecting sensitive electronics from dust and accidental contact in indoor environments requires a reliable housing. The Bopla ET 208 universal enclosure provides a practical solution with its two-part ABS construction and screw-on lid.

Who is it for

This enclosure is suitable for electronics developers, hobbyists, and industrial users who need a compact, light grey housing for small electronic assemblies, sensors, or control circuits.

Main features

• External dimensions: 98 mm length, 64 mm width, 38 mm height
• Material: ABS (Acrylonitrile Butadiene Styrene) with smooth surface finish
• Colour: Light grey, RAL 7035
• Two components: base and screw-on lid
• Integrated PCB mounting bosses for easy board installation
• Operating temperature range: -20 to +80 °C
• Flammability rating: UL 94 HB
• Chemical resistance: Good against aqueous acids, alkalis, salts, and oils

Tips

When designing your PCB, use the integrated mounting bosses to secure the board without additional hardware. The ABS material can be machined for custom cutouts, but avoid prolonged UV exposure as UV resistance is limited.
