TELEGÄRTNER H02000A0069 AMJ-S K Cat.6A afgeschermde 2-poorts RJ45 datadoos, lichtgrijs/wit

The TELEGÄRTNER H02000A0069 is a dual-port RJ45 data outlet built for 10 Gigabit Ethernet over Cat.6A cabling. Its die-cast zinc housing and integrated dust protection flaps set it apart from plastic alternatives, ensuring long-term reliability in flush-mount or duct installations.

Highlights

• 2 shielded RJ45 ports, Cat.6A (ISO/IEC 11801, EN 50173-1) with up to 500 MHz bandwidth
• Supports 10GBase-T and PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Tool-free IDC termination, LSA-Plus compatible, T568A/T568B wiring
• Die-cast zinc module housing, UL94 V0 flammability rating
• Light grey / pure white design with central plate included

In daily use

This outlet simplifies high-speed network deployment in offices or industrial environments. The shielded design reduces electromagnetic interference, while the dust protection flaps keep contacts clean when ports are unused. Gold-plated phosphor bronze contacts ensure consistent performance.

Full specifications

• Product Type: Data Outlet / Network Socket
• Number of Ports: 2
• Connector Type: RJ45
• Category: Cat.6A (ISO/IEC 11801, EN 50173-1)
• Shielding: Shielded
• Transmission Standard: 10 Gigabit Ethernet (10GBase-T)
• Mounting Type: Flush-mount (UPk) / Duct Installation
• Connection Technology: IDC (Insulation Displacement Connector), LSA-Plus compatible
• Cable Entry Direction: Straight
• Module Housing Material: Die-cast zinc
• Color: Light Grey / Pure White
• PoE Compatibility: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Contact Material: Gold-plated phosphor bronze
• Flammability Rating: UL94 V0
• Design Series: AMJ-S K

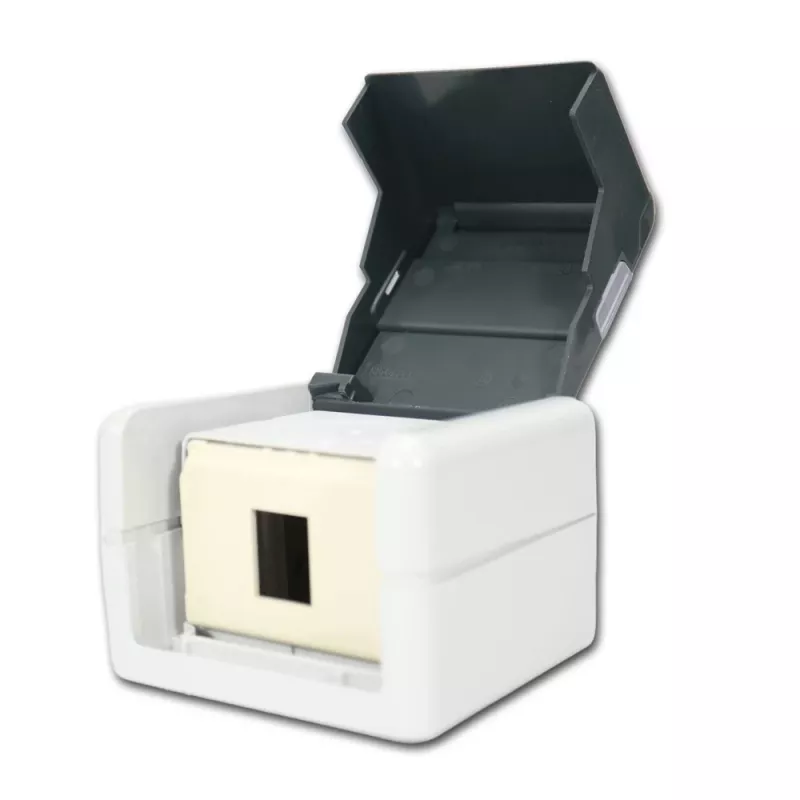

• Dust Protection: Integrated dust protection flaps
• Central Plate: Included
• Termination: Tool-free or LSA tool
• Wiring Scheme: T568A / T568B
• Frequency Range: Up to 500 MHz

Final note

For reliable 10G performance and robust construction, the TELEGÄRTNER H02000A0069 is a solid choice for professional network installations.
