Bosch GBH 18V-34 CF PROFESSIONAL 500 RPM SDS Plus

The Bosch GBH 18V-34 CF PROFESSIONAL is a battery-powered SDS Plus perforator designed for drilling and light chiselling in concrete, masonry and other construction materials. Operating on an 18 V battery platform, it delivers a rated speed of 500 RPM and supports drilling in concrete up to a maximum diameter of 32 mm. With a compact width of 93 mm and a depth of 430 mm, the tool balances power and maneuverability while weighing 4.9 kg to remain portable on job sites.

Advantages

This professional rotary hammer combines cordless convenience with performance suitable for demanding tasks. The SDS Plus system ensures quick bit changes and secure bit retention. The combination of a 500 RPM rated speed and a maximum drilling diameter of 32 mm provides efficient material removal in concrete and masonry. Compact dimensions and moderate weight improve handling in confined spaces and during extended use.

Suitable for

• Drilling holes in concrete and masonry up to 32 mm
• Installation of anchors, dowels and fasteners in structural substrates

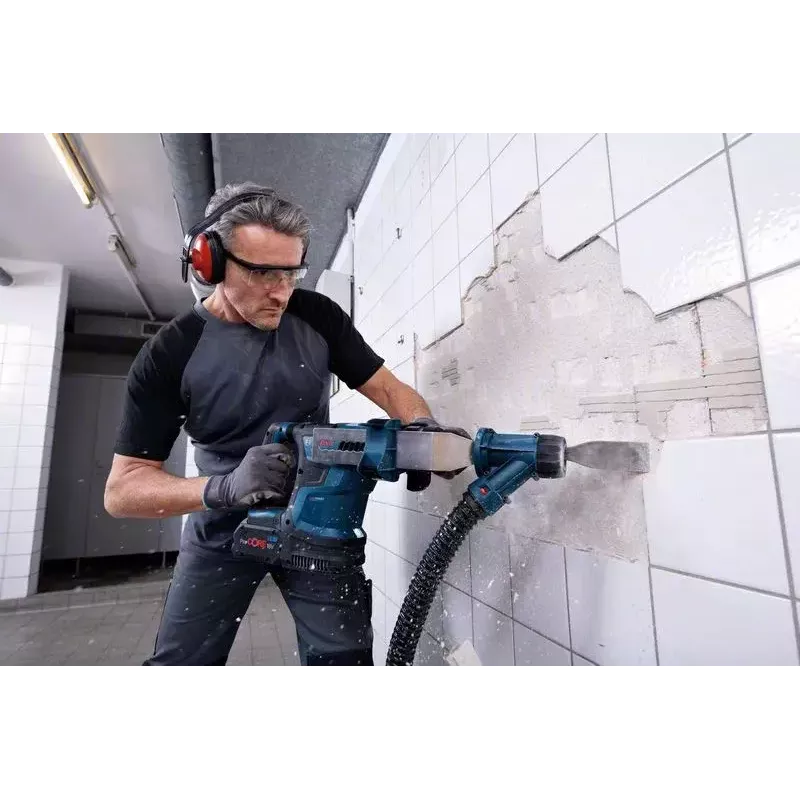

• Light chiselling and demolition tasks where a compact, cordless tool is required
• Work in areas without immediate access to mains power

Key specifications

• Power supply: 18 V battery
• Tool type: SDS Plus perforator (rotary hammer)
• Maximum concrete drilling diameter: 32 mm
• Rated speed: 500 RPM
• Chuck / bit system: SDS Plus
• Minimum chuck capacity: 1.5 mm
• Weight: 4.9 kg
• Width: 93 mm
• Depth: 430 mm

How to use

Install a compatible SDS Plus drill bit or chisel and ensure the battery is charged and properly seated. Select the appropriate mode (drilling or hammer drilling) according to the task and set the speed if the tool offers variable control. Position the bit on the marked drilling point, apply steady axial pressure and allow the tool to perform the work; avoid forcing the tool beyond its rated drilling capacity. For chiselling, use appropriate chisel attachments and control the angle and pressure to achieve the desired material removal.

Lietošanas ieteikumi

Use appropriate personal protective equipment such as eye and ear protection and dust extraction when working with concrete and masonry. Match drill bit type and size to the material and fastening system being installed. Allow the tool to cool during prolonged heavy use and inspect accessories for wear before each use.
