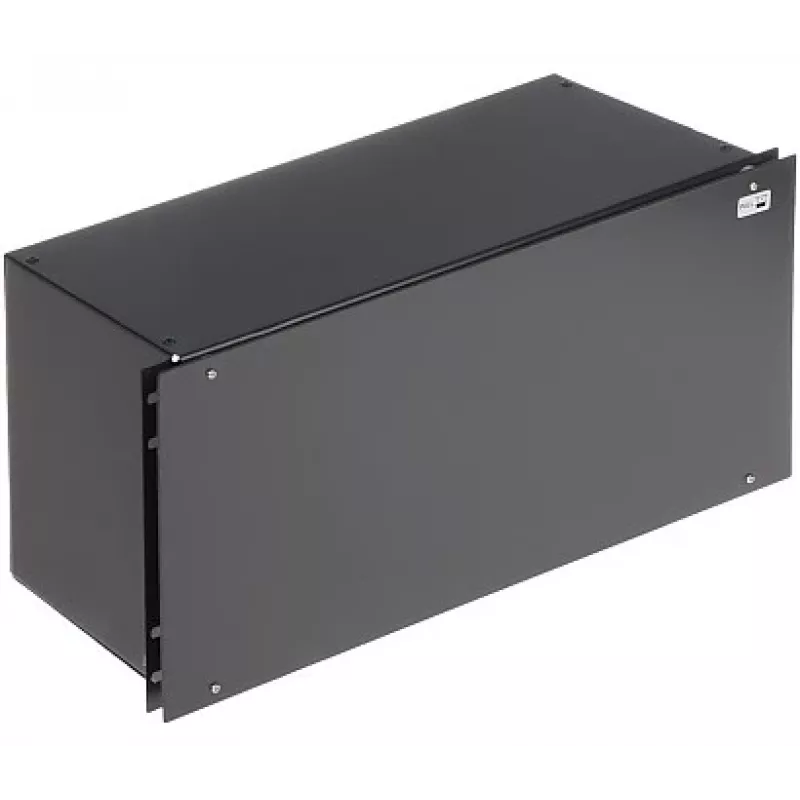

Bufferkit voor 16 IP-camera's switch PoE 16P+2G ATTE IPUPS-16-20-R5U0

The ATTE IPUPS-16-20-R5U0 is a 16-port PoE+ switch with integrated UPS functionality, designed for powering IP cameras and other network devices. It provides reliable power and data transmission with surge protection and battery backup support.

Advantages

Integrated UPS ensures continuous operation during power outages. Supports PoE+ (IEEE 802.3af/at) with up to 30W per port and a total budget of 200W. Gigabit uplink ports enable high-speed connectivity. Rackmount design saves space.

Suitable for

• IP camera surveillance systems
• Small to medium business networks
• Remote monitoring installations

Key specifications

• 16 PoE ports (10/100 Mbps) + 2 Gigabit uplink ports
• PoE standard: IEEE 802.3af/at, max 30W per port, total 200W
• Integrated UPS (requires external 2x 12V VRLA batteries)
• Switching capacity: 7.2 Gbps
• MAC address table: 8K
• Power input: 230V AC, 50/60Hz
• Mounting: 19-inch rackmount, 1U
• Operating temperature: -10°C to +40°C
• Surge protection: 4kV on PoE ports

Recommendations

For optimal UPS performance, use two 12V VRLA batteries connected in series. Configure battery charging current according to battery capacity (0.5A/1A/2A selectable).
