BUSCH-JAEGER 83-2FHAudio/SET twee-onder-een-kap audio-set 2-draads opbouwmontage (2CKA008300A1464)

Complete audio door communication set for two residential units, operating on the Busch-Welcome 2-wire bus. The outdoor station features an anodized aluminum front panel with IP44 protection, while the indoor stations are studio white handsets with door opener button, mute function, and call volume adjustment. System power supply mounts on DIN rail (4 TE) and outputs 28 V DC.

Overview

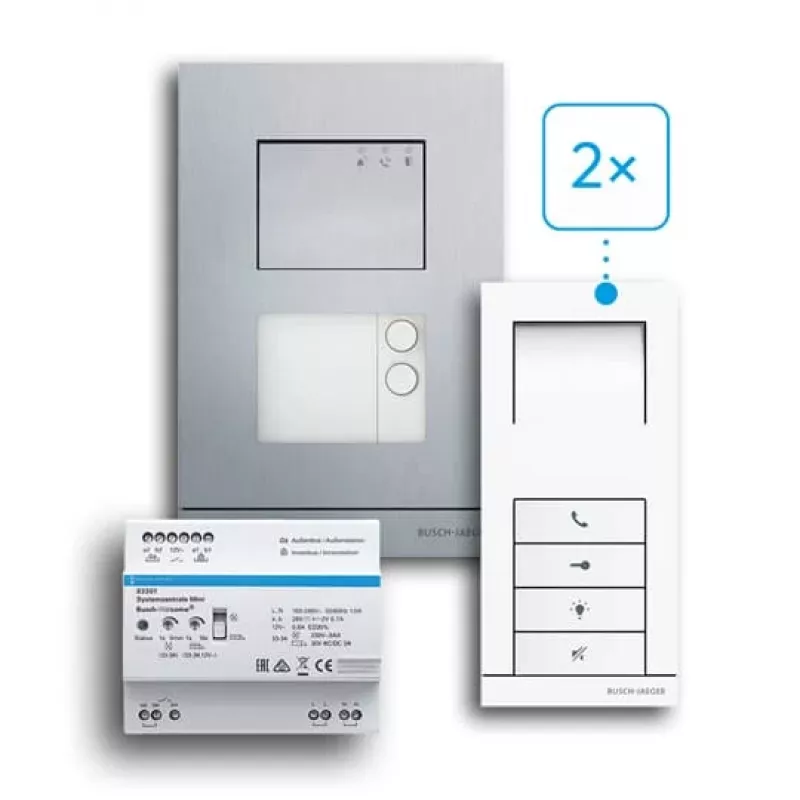

The BUSCH-JAEGER 83-2FHAudio/SET provides a ready-to-install audio intercom solution for two-family homes. It includes a surface-mounted outdoor station with a 2-gang design, two audio indoor stations with handset, and a system power supply. All components communicate via the reliable 2-wire Busch-Welcome bus, simplifying wiring and enabling future expansion.

What stands out

• Anodized aluminum outdoor station with IP44 weather resistance
• 2-wire bus technology for easy installation and expandability
• Indoor stations with mute function and adjustable call volume
• DIN rail power supply with 28 V DC output

Technical details

• Outdoor station dimensions (W x H x D): 128 x 220 x 28 mm
• Indoor station dimensions (W x H x D): 98 x 220 x 63 mm
• Outdoor station operating temperature: -25 to +55 °C
• Outdoor station colour: Aluminum
• Indoor station colour: Studio White

Our verdict

A complete and expandable audio door communication set for two-family homes, combining robust outdoor hardware with user-friendly indoor handsets.
