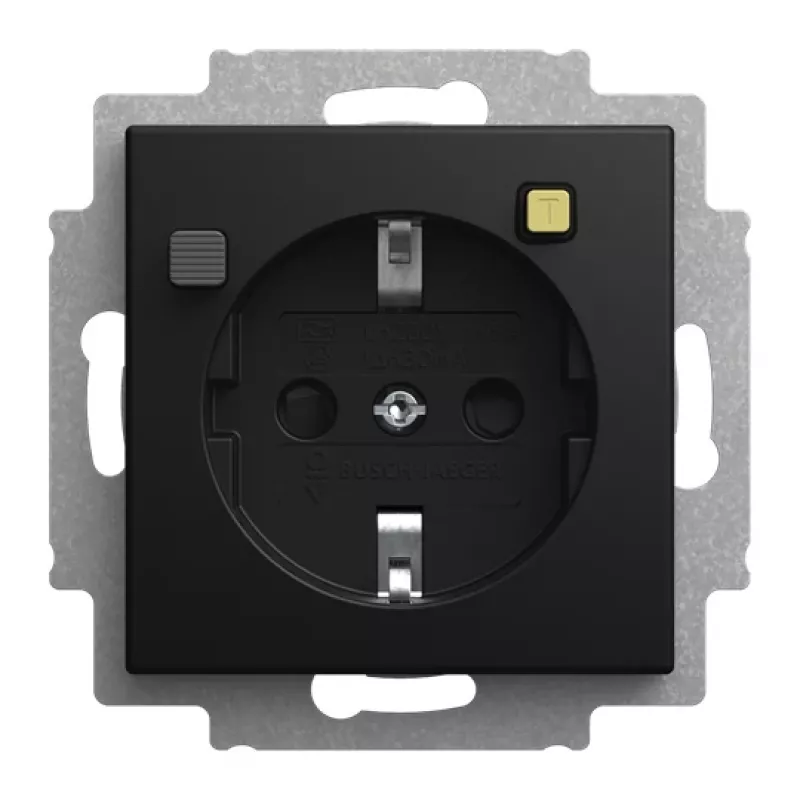

Busch-Jaeger aardlekschakelaar-SCHUKO stopcontact met aardlekschakelaar, 16 A, 10 mA, inbouw, zwart mat 2CKA003116A0673

Protect against residual currents with this flush-mounted SCHUKO socket outlet featuring integrated 10 mA RCD protection. Rated at 16 A and 230 V AC, it combines a standard Type F socket with two-pole switching for enhanced safety in residential and commercial installations.

Overview

The Busch-Jaeger FI-Schukomat is a SCHUKO socket outlet with built-in residual current device (RCD) type A, sensitive to AC and pulsating DC fault currents. It is designed for flush mounting in standard wall boxes and connects via screw terminals. The black matt thermoplastic housing is halogen-free and suitable for use with Busch-Jaeger switch ranges such as future® linear, carat®, solo®, alpha®, and pure® for central plates and frames.

What stands out

• Integrated RCD with 10 mA rated residual current for personal protection
• Two-pole switching (1P+N) disconnects both live and neutral on fault
• Test button and reset function for regular functional checks
• Compatible with multiple Busch-Jaeger design lines for a uniform look

Technical details

• Socket type: SCHUKO (Type F)
• Rated voltage: 230 V AC
• Rated current: 16 A
• Frequency: 50 Hz
• RCD type: Type A
• Rated residual current: 10 mA
• Number of poles (RCD): 2-pole switching (1P+N)
• Short-circuit breaking capacity: 3 kA
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Material: Thermoplastic, halogen-free
• Colour: Black Matt
• Operating temperature: -5 °C to +40 °C

Our verdict

A reliable safety solution for areas where additional residual current protection is required at the point of use, without the need for a separate RCD in the distribution board.
