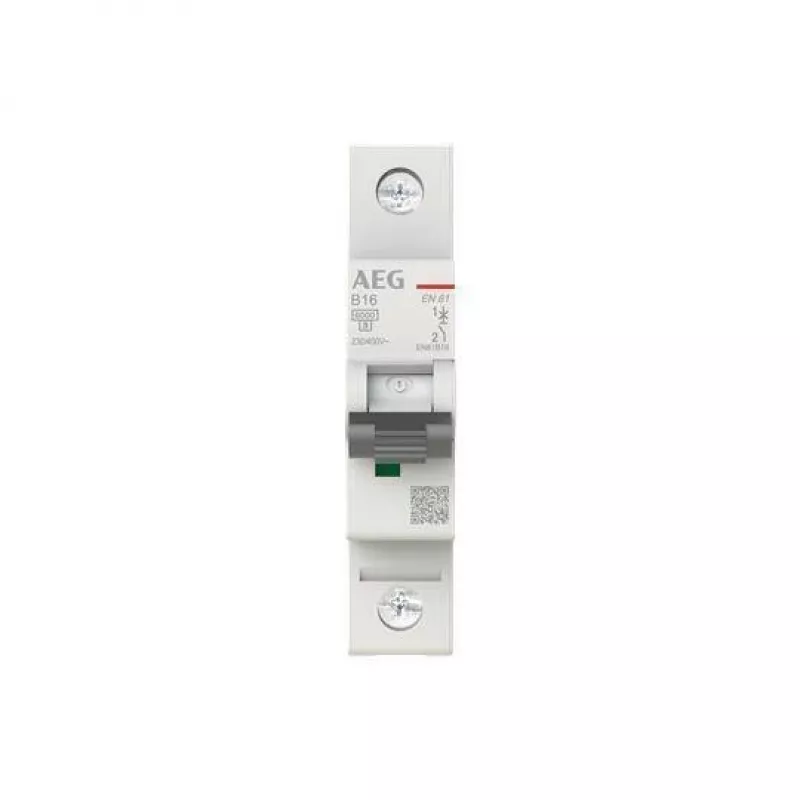

BUSCH-JAEGER AEG Elfaplus installatieautomaat 6kA B16A 1P (2CDS251088R0165)

The BUSCH-JAEGER AEG Elfaplus Miniature Circuit Breaker (MCB) is a high-quality protective device designed for reliable overcurrent protection in residential and commercial electrical installations. With a rated current of 16 A and a B-curve tripping characteristic, it ensures safe operation for lighting and general-purpose circuits. This 1-pole MCB offers a breaking capacity of 6 kA, complying with IEC/EN 60898-1 standards.

Advantages

Compact 1-module design saves space on DIN rail; thermal-magnetic release provides precise protection against overloads and short circuits; high electrical endurance of 10,000 cycles ensures long service life; easy installation with screw terminals accepting solid and flexible conductors.

Suitable for

• Overcurrent protection in distribution boards
• Lighting circuits, socket outlets, and small appliances
• Residential and commercial electrical systems
• DIN rail mounting in enclosures

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Series: Elfaplus
• Number of Poles: 1P
• Tripping Characteristic: B-curve
• Rated Current (In): 16 A
• Rated Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 230/400 V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail (TH35-7.5 / TH35-15)
• Terminal Type: Screw Terminals
• Terminal Capacity (Solid): 0.75 - 25 mm²
• Terminal Capacity (Flexible): 0.75 - 16 mm²
• Protection Degree: IP20 (Terminals), IP40 (Enclosure)
• Energy Limiting Class: 3
• Standard: IEC/EN 60898-1
• Operating Temperature Range: -25 to +55 °C
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Release Type: Thermal-Magnetic
• Module Width: 1 module (17.5 mm)

Recommendations

For optimal protection, ensure the MCB is installed by a qualified electrician and that the system's prospective short-circuit current does not exceed 6 kA. Always verify compatibility with your distribution board and load requirements.
