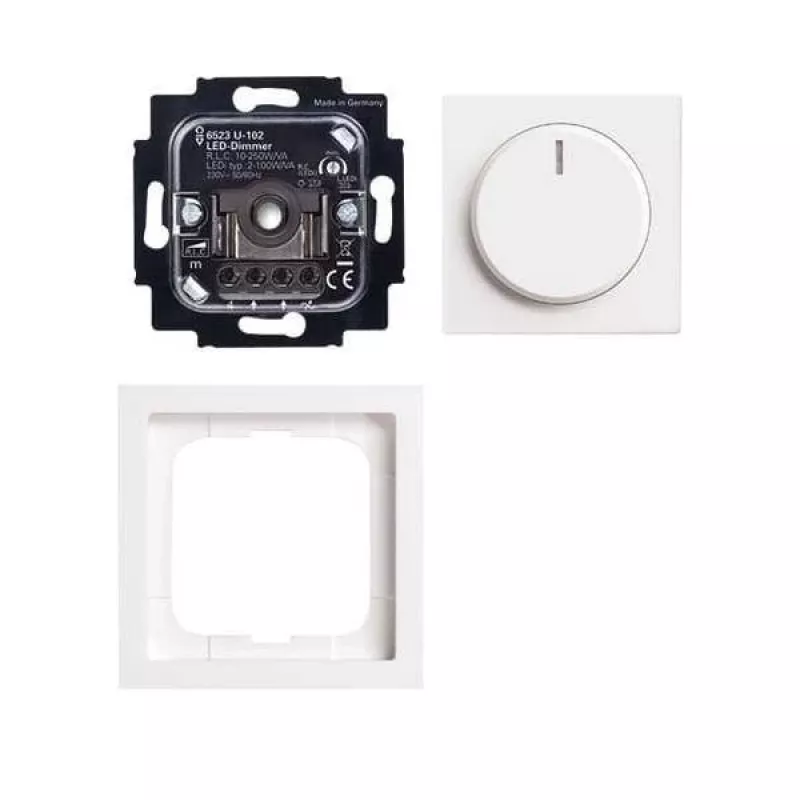

BUSCH-JAEGER BUSCH 6523 UJ-84-102 LED-dimmerset, inbouwmontage 2CKA006512A0350

Universal LED dimmer set for flush-mounted installation, with rotary control and push-button switch. It automatically detects the load type (R, L, C, LED) and supports both leading edge and trailing edge phase control, making it suitable for dimmable LED lamps, incandescent lamps, and halogen lamps with electronic or conventional transformers.

Advantages

Soft start function extends lamp life, while the memory function recalls the last brightness setting after switching off. Electronic short-circuit and overload protection provide safe operation. The set includes a rotary dimmer insert and a matching cover for a complete installation.

Suitable for

• Dimmable LED lamps (retrofit LEDi) with phase cut dimming
• Incandescent lamps and 230 V halogen lamps
• Low-voltage halogen lamps with electronic or conventional transformers

Key specifications

• Operating voltage: 230 V AC, 50 Hz
• Maximum load: 100 VA for LEDi (both phase cut modes), 250 W for incandescent/halogen, 250 VA for low-voltage halogen
• Minimum load: 2 VA for LEDi, 10 W for incandescent/halogen
• Connection: screw terminals, max. conductor cross-section 2.5 mm²
• Flush-mounted installation, protection class IP20

Recommendations

For optimal dimming performance, use dimmable LED lamps that are explicitly marked as suitable for phase cut dimmers. Ensure the connected load does not exceed the specified maximum values.
