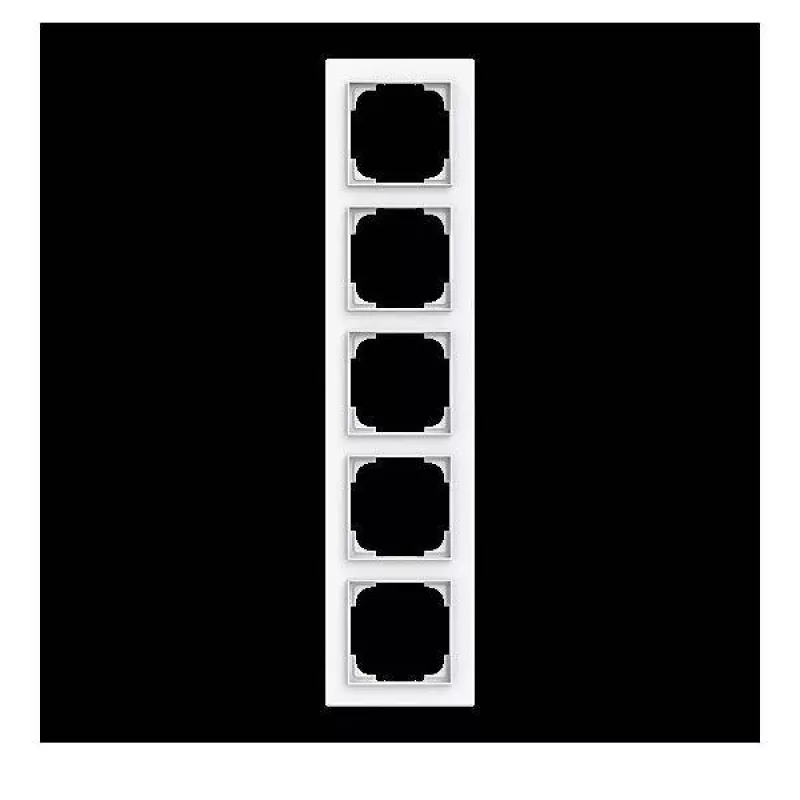

Busch-Jaeger future linear afdekraam, 5-voudig, studiowit 2CKA001754A4869

Electricians and installers use the Busch-Jaeger future linear cover frame to complete flush-mounted installations in residential and commercial buildings. This 5-gang frame accommodates switches, sockets, dimmers, and data outlets in a single, clean arrangement.

Key specifications

• Series: Busch-Jaeger future linear
• Number of gangs: 5
• Colour: Studio White
• Material: Thermoplastic (PC)
• Surface finish: Matt
• Halogen-free: Yes
• Mounting orientation: Horizontal and vertical
• Protection class: IP20
• Impact resistance: IK05
• UV resistance: Yes
• Installation type: Flush-mounted
• Operating temperature: -5 to +45 °C
• Storage temperature: -20 to +70 °C

Why choose it

The frame's flat design and matt Studio White finish complement modern interiors, while the halogen-free thermoplastic construction supports sustainable building practices. Its robust build withstands everyday impacts and UV exposure without discolouration.

Ideal use cases

• Grouping multiple electrical devices in a single wall opening
• Renovation projects requiring a uniform, contemporary look
• Commercial spaces needing durable, easy-to-clean frames

Good to know

The frame is suitable for both horizontal and vertical mounting, offering flexibility in installation. It is designed for flush-mounted installations and is compatible with Busch-Jaeger future linear inserts.
