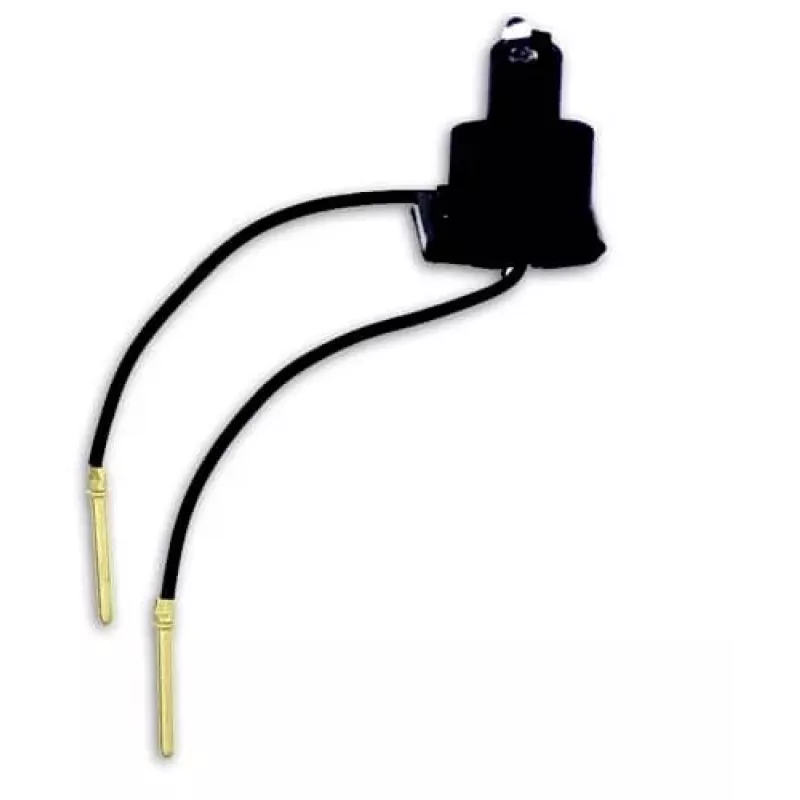

Busch-Jaeger glimlamp 8332-1 230V 0,6mA neon-indicator

The Busch-Jaeger Glow Lamp 8332-1 is a high-quality neon indicator lamp designed for use as a status indicator or orientation light in Busch-Jaeger switch systems. Operating at 230V AC with a low current consumption of 0.6 mA, this glow lamp provides a reliable orange/red light output with a power consumption of only 0.14 W. It is a plug-in module that fits seamlessly into Busch-Jaeger control switches and push-buttons, making it an ideal choice for illuminating switch rockers or indicating switch status.

Advantages

Energy-efficient neon technology with long lifespan of over 10,000 hours. Easy plug-in installation without tools. Compatible with a wide range of Busch-Jaeger switch series including Reflex SI, Future Linear, Solo, and Carat. Low power consumption reduces energy costs.

Suitable for

• Status indication in electrical installations
• Orientation lighting in dark areas
• Illuminating switch rockers for better visibility
• Integration into Busch-Jaeger switch systems

Key specifications

• Lamp Type: Glow Lamp (Neon)
• Operating Voltage: 230 V AC
• Operating Current: 0.6 mA
• Power Consumption: 0.14 W
• Light Color: Orange/Red
• Mounting: Plug-in module
• Lifespan: >10,000 hours
• Dimmable: No
• Material: Glass, Metal, Resistor

Recommendations

For optimal performance, use only with compatible Busch-Jaeger switch mechanisms. Ensure voltage matches your local supply. This glow lamp is not dimmable and should not be used with dimmers.
