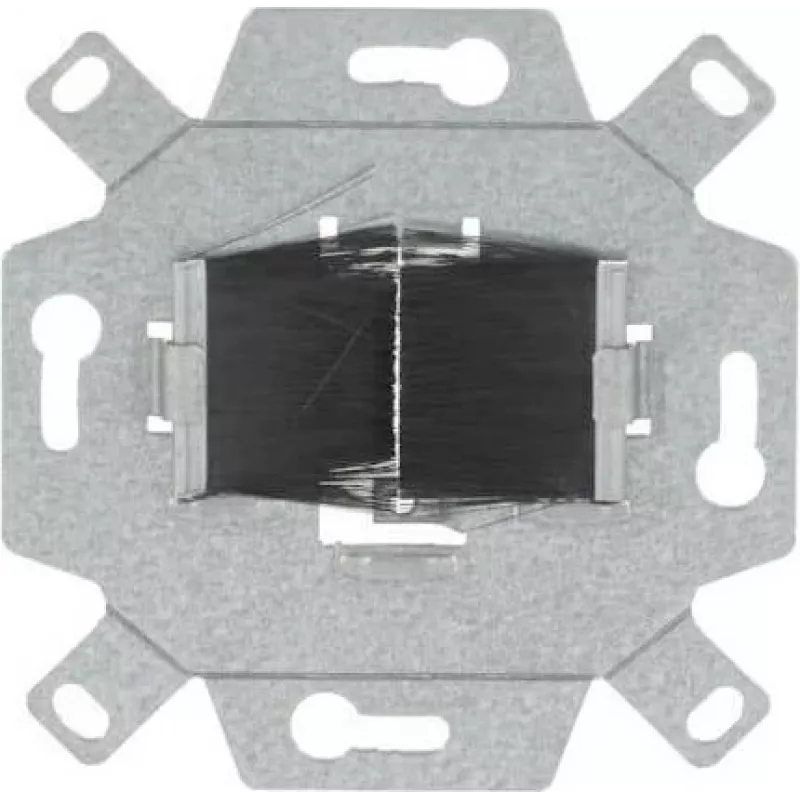

Busch-Jaeger kabeldoorvoer UP 0219/15 met borstel, alpinowit (2CKA000230A0472)

Running cables through walls or ceilings often leaves unsightly holes that compromise the look of a room and allow dust and drafts to pass through. The Busch-Jaeger Cable Grommet UP 0219/15 with Brush solves this problem elegantly. This flush-mounted cable entry point provides a neat, discreet passage for multiple cables while its integrated brush seal helps keep dust and insects at bay. Whether you're setting up a home office, a media wall, or a professional installation, this grommet delivers a clean, finished appearance that complements modern interiors.

Who is it for

Ideal for electricians, IT installers, and homeowners who need a tidy and functional way to route cables through walls, ceilings, or partition panels. It is particularly useful in meeting rooms, home theaters, and workstations where multiple cables (HDMI, network, power) converge. Compatible with standard Busch-Jaeger switch ranges such as Reflex SI and Duro 2000 SI, it integrates seamlessly into existing switch series.

Main features

• Flush-mounted design for a smooth, surface-level finish
• Integrated brush seal allows flexible cable routing while reducing dust ingress
• Made from halogen-free thermoplastic (PC/ABS) for safety and durability
• Alpine White color matches common switch and socket designs
• Compatible with standard flush-mounted boxes (Ø 60 mm)
• Certified to VDE and CE standards, ensuring reliable quality

Specifications

• Product Type: Cable Entry
• Mounting Type: Flush-mounted (UP)
• Sealing Mechanism: Brush seal
• Material: Thermoplastic (PC/ABS)
• Color: Alpine White
• Halogen-free: Yes
• Protection Class: IP20
• Operating Temperature: -5 °C to +45 °C
• Dimensions (Visible Plate): 71 x 71 mm
• Installation Depth: Approx. 32 mm
• Compatibility: Busch-Jaeger standard switch ranges (e.g., Reflex SI, Duro 2000 SI)
• Cable Capacity: Multiple cables (flexible opening)
• Dust Protection: Yes
• Installation Requirement: Standard flush-mounted box (Ø 60 mm)
• Design: Modern, discreet
• Certifications: VDE, CE

Tips

When installing, ensure the flush-mounted box is properly recessed to achieve a flush finish. The brush opening can accommodate various cable diameters; arrange cables neatly before pushing them through. For best results, pair with Busch-Jaeger switch covers from the same series to maintain visual consistency.
