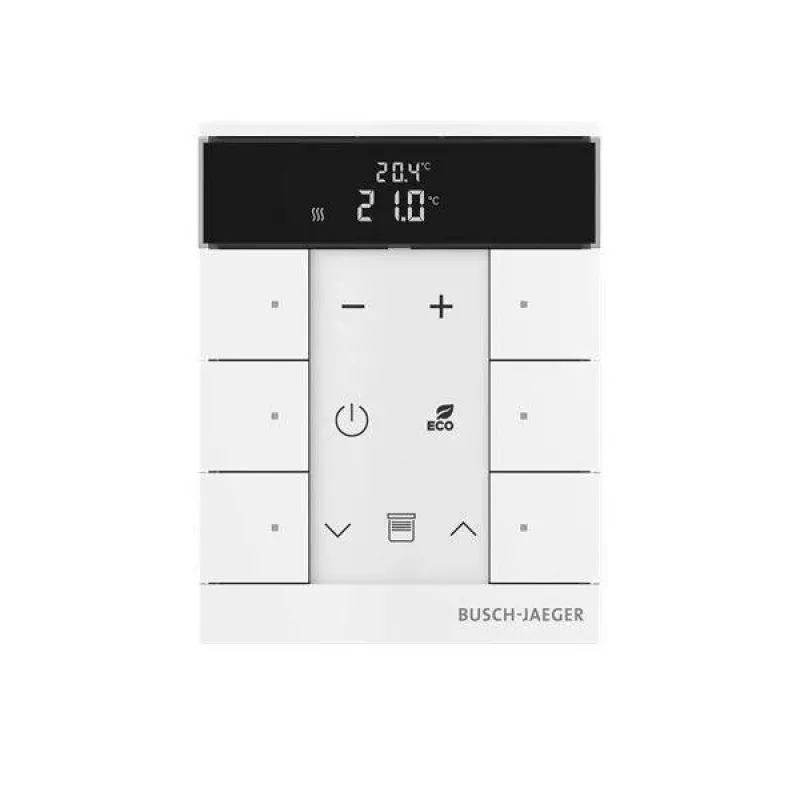

Busch-Jaeger ruimtetemperatuurregelaar 6-voudig, matwit SBR-F-6.0.11-884 2CKA006220A0894

For electricians and homeowners setting up a Busch-Jaeger free@home smart home, this 6-fold room temperature controller provides individual climate management for up to six zones. The matte white unit mounts flush in a standard wall box and connects directly to the free@home bus, eliminating the need for separate power supplies.

Key specifications

• Control channels: 6-fold, independent temperature zones
• System: Busch-Jaeger free@home
• Colour: Matte white
• Mounting: Flush-mounted (Unterputz)
• Display: LCD segment display
• Integrated sensor: Temperature
• Operating voltage: free@home bus voltage (24 V DC)
• Setpoint temperature range: 5 °C to 30 °C
• Operating temperature range: 5 °C to 45 °C
• Protection class: IP20
• Material: Thermoplastic (PC)
• Programming: Weekly program with 8 switching times per day, holiday function, frost protection
• Control: On-device buttons, free@home app, web interface
• Heating/cooling control: Yes

Why choose it

This controller integrates seamlessly into the free@home ecosystem, allowing precise temperature regulation for multiple rooms from a single device. The flush-mounted design keeps walls uncluttered, while the LCD display gives clear feedback. Programming options support energy-saving schedules and frost protection for unoccupied periods.

Ideal use cases

• Multi-zone residential heating and cooling control in free@home installations
• Retrofit projects where a flush-mounted, bus-powered temperature controller is required
• Energy management with weekly schedules and holiday mode

Good to know

The controller operates solely on the free@home bus voltage, so no additional power supply is needed. It is designed for indoor use with an IP20 rating and is made of durable thermoplastic.
