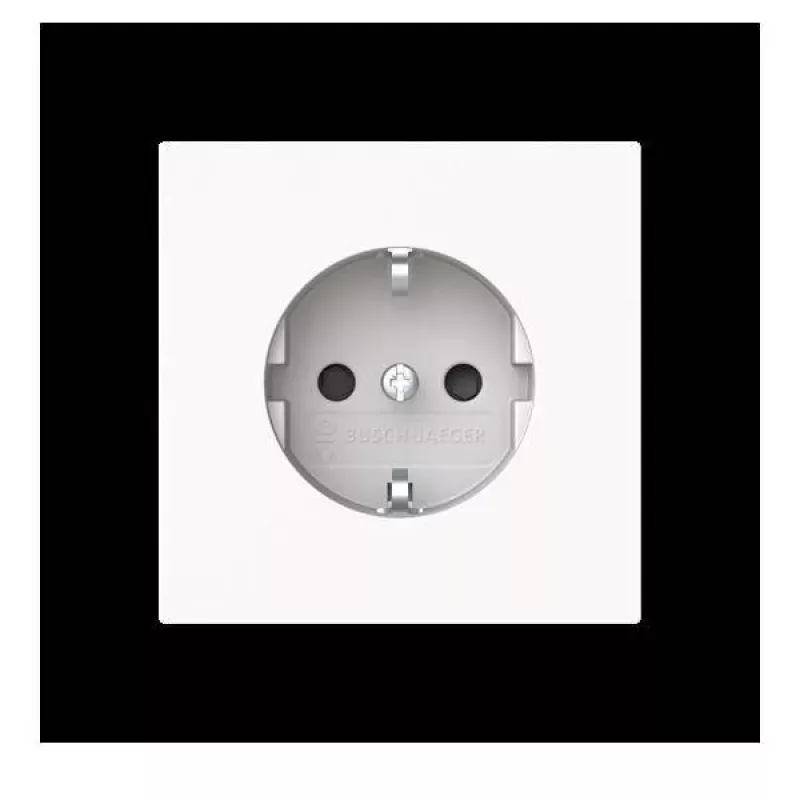

BUSCH-JAEGER SCHUKO stopcontact Safety+ 20-1 EUCBF-44M, alpinwit 2CKA002013A5522

Rated at 16 A and 250 V AC, this SCHUKO socket outlet with increased touch protection is built for safe, reliable power distribution in residential and commercial installations.

Overview

The BUSCH-JAEGER SCHUKO Steckdose Safety+ 20-1 EUCBF-44M (2CKA002013A5522) is a flush-mounted socket outlet with screw terminals, designed for 2-pole + earth connection. The thermoplastic housing in Alpine White (RAL 9010 equivalent) has a glossy surface finish.

What stands out

• Increased touch protection (Safety+) for added safety, especially in households with children
• Halogen-free material
• Compatible with Busch-Jaeger switch ranges such as Busch-Duro 2000® SI, Reflex SI, and future® linear
• VDE certified

Technical details

• Socket type: SCHUKO® (Type F)
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Number of poles: 2-pole + Earth
• Connection type: Screw terminals
• Mounting type: Flush-mounted
• Material: Thermoplastic (PC)
• Degree of protection: IP20
• Terminal capacity: Max. 2 x 2.5 mm² rigid wire
• Operating temperature: -5 °C to +40 °C
• Installation depth: Approx. 32 mm

Our verdict

A robust and safe SCHUKO socket outlet with child protection, ideal for modern electrical installations where safety and compatibility with Busch-Jaeger switch ranges are required.
