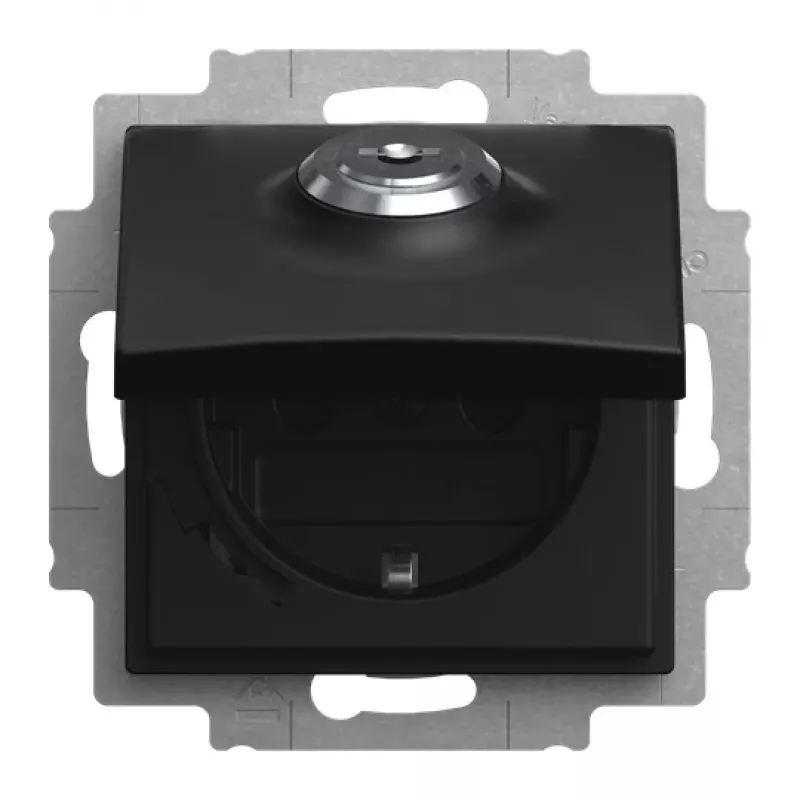

Busch-Jaeger stopcontactinzetstuk 20 EUKBSL-915-101 Schuko 1-voudig inbouw zwart mat 2CKA002018A1589

Rated at 16 A and 250 V AC, this Schuko socket outlet insert delivers robust power delivery in a compact flush-mounted design. The increased touch protection keeps fingers away from live contacts, making it a safe choice for homes and offices.

Overview

The Busch-Jaeger 20 EUKBSL-915-101 is a single-gang socket outlet insert for flush mounting. It features screw terminals for secure wiring and is constructed from halogen-free thermoplastic in Black Matt. The insert is part of the central plate system and is compatible with multiple design lines, including Busch-Duro 2000® SI, Reflex SI, future® linear, alpha, carat®, solo®, and pure integral.

What stands out

• Increased touch protection for enhanced safety
• Halogen-free thermoplastic material
• Compatible with a wide range of Busch-Jaeger design lines
• Earthed Schuko socket for standard European plugs

Technical details

• Socket type: Schuko (Type F)
• Number of sockets: 1-gang
• Mounting type: Flush-mounted
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection type: Screw terminals
• Material: Thermoplastic
• Colour: Black Matt
• Halogen-free: Yes
• Protection class: IP20
• Frequency: 50/60 Hz
• Terminal capacity (rigid): 1.5 - 2.5 mm²
• Earthed: Yes

Our verdict

A reliable and safe socket outlet insert that integrates seamlessly with popular Busch-Jaeger switch ranges, offering a clean and professional finish.
