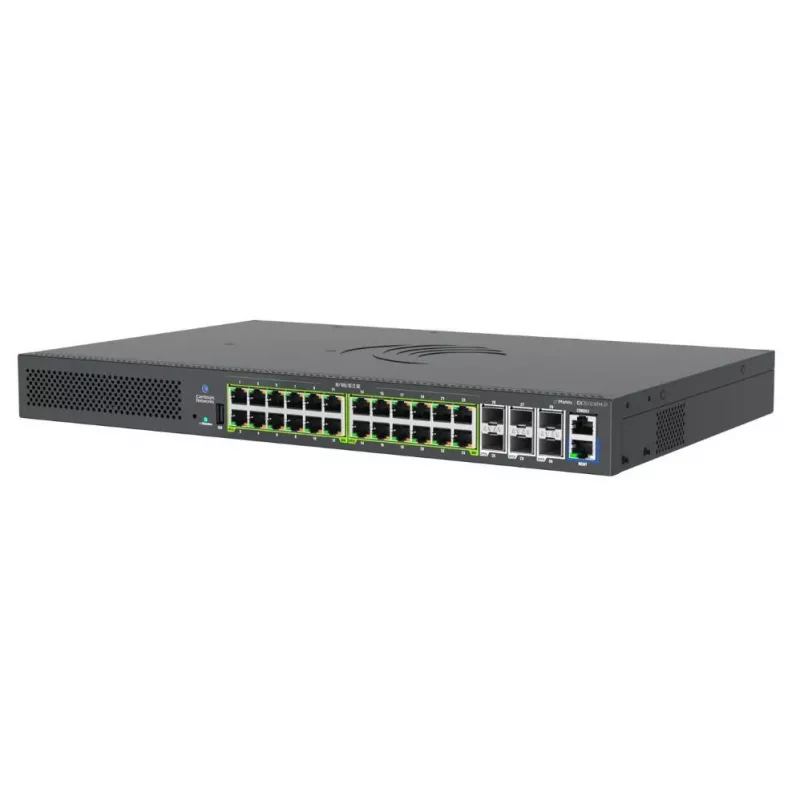

Cambium Networks cnMatrix EX3030RM-P 24-poorts Gigabit PoE+ managed switch met 4x 10G SFP+ uplinks

In a busy enterprise network closet, the cnMatrix EX3030RM-P delivers reliable connectivity and power for access points, IP phones, and surveillance cameras. This 1U rack-mountable switch combines 24 Gigabit PoE+ ports with four 10G SFP+ uplinks, making it a versatile aggregation or access layer solution for growing businesses, schools, and hospitality venues.

Key specifications

• 24 x 10/100/1000Base-T PoE+ ports (IEEE 802.3af/at) with 370 W total power budget
• 4 x 1/10GbE SFP+ uplink ports for high-speed fiber connectivity
• 128 Gbps switching capacity and 95.2 Mpps forwarding rate
• Layer 2 and Layer 3 Lite features: static routing, RIP, 4094 VLANs, QoS, and 16K MAC address table
• Cloud management via cnMaestro, plus web GUI, CLI, and SNMP
• Robust security: 802.1X, port security, DHCP snooping, and ACLs
• Jumbo frame support up to 9 KB; internal AC power supply

Why choose it

The EX3030RM-P offers an excellent balance of performance, power, and manageability. Its PoE+ budget can support a full complement of modern devices without additional power injectors, while the 10G uplinks prevent bottlenecks when aggregating multiple switches or connecting to high-speed servers. With cnMaestro cloud management, you can provision, monitor, and troubleshoot the entire network from a single pane of glass—even across distributed sites.

Ideal use cases

• Enterprise access layer for offices and campuses
• PoE-powered device deployments: Wi-Fi 6 access points, VoIP phones, IP cameras
• Small-to-medium business core switching with 10G uplinks to servers or storage
• Hospitality and education networks requiring VLAN segmentation and security

Good to know

The switch operates reliably in temperatures from 0°C to 50°C and includes comprehensive security features to protect network integrity. It is designed for standard 19-inch racks and includes rack-mount ears. Cambium Networks provides a limited lifetime warranty on cnMatrix switches, ensuring long-term peace of mind.
