Camera Garmin BC50 HD 1280x720 30fps AC DC zwart

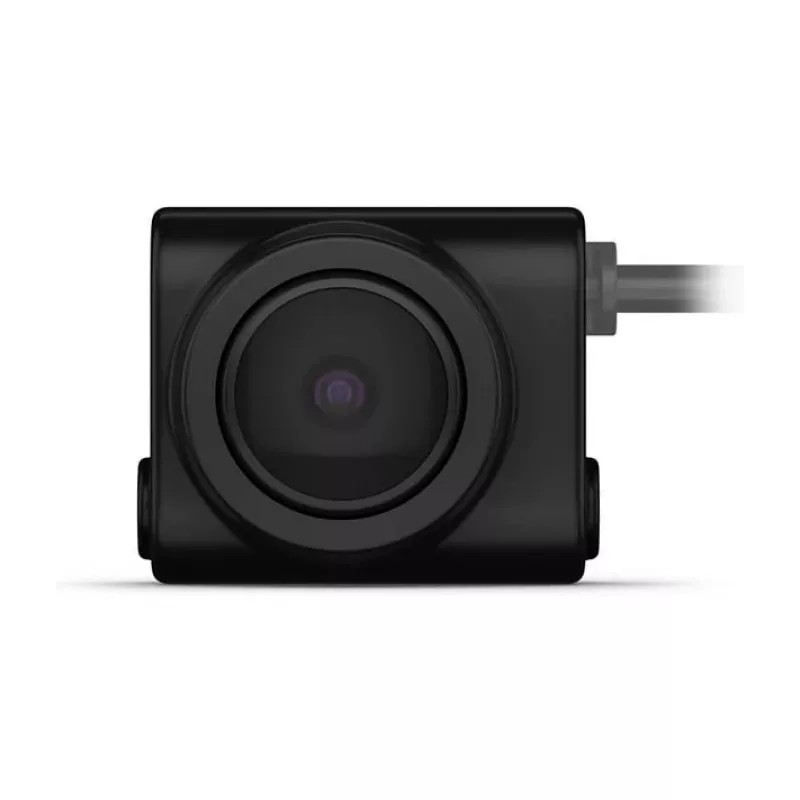

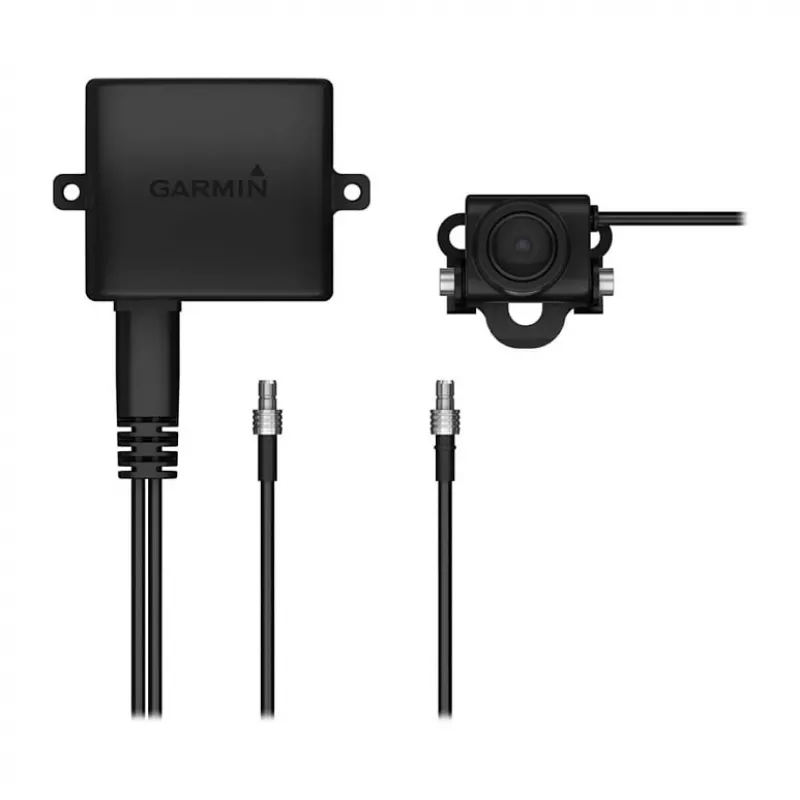

The Garmin BC50 HD wireless reverse camera with license plate mount provides a clear rear view on compatible Garmin navigation units. Designed for use on longer vehicles and trailers, it transmits a live image to the display to help you see what is behind the vehicle while reversing. The camera supports up to 720p HD resolution at 30 fps, has a wide 160° field of view and a robust, weather-resistant IP67-rated housing. It requires connection to a switched power source such as the vehicle's reverse lights; professional installation is recommended.

Advantages

The BC50 offers a long wireless transmission range of up to 15 m and can be extended to 30 m with an optional 15 m extension cable. Its 1280 x 720 HD image and 160° viewing angle capture a wide area behind the vehicle, while the IP67-rated, rugged design withstands road and off-road conditions. Compact dimensions make it easy to mount on a license plate bracket and integrate with compatible Garmin units for a reliable rearview feed.

Suitable for

• Motorhomes and camper vans
• Delivery vans and light commercial vehicles
• Trucks and vehicles towing trailers
• Any vehicle fitted with a compatible Garmin navigation unit

Key specifications

• Model: Garmin BC50 (MPN 010-02609-00, EAN 0753759277482)
• Resolution: up to 1280 x 720 (720p) at 30 fps
• Field of view: 160°
• Wireless range: up to 15 m (up to 30 m with 15 m optional extension)
• Power: AC/DC compatible, requires 24 V switched power source (connect to reverse lights recommended)
• Ingress protection: IP67

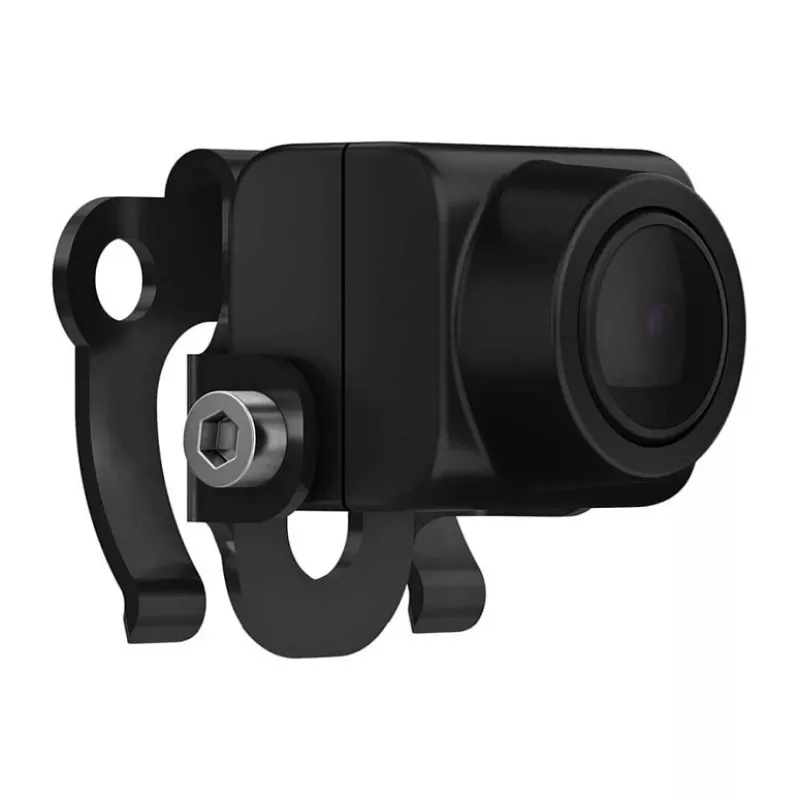

• Mounting: license plate bracket
• Dimensions (approx.): 25 mm × 17 mm × 21.8 mm

How to use

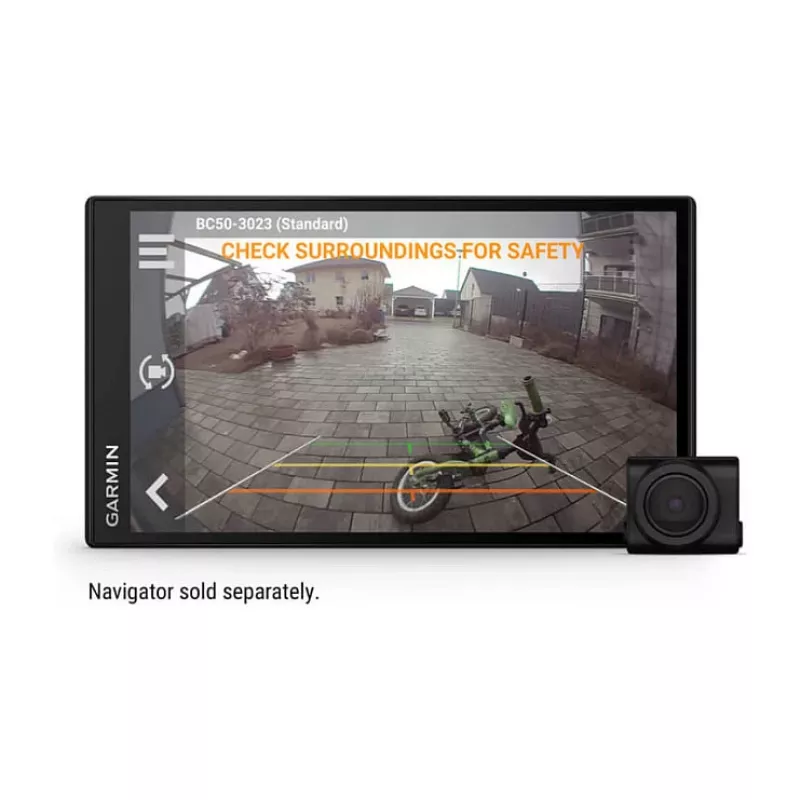

Mount the camera on the vehicle using the supplied license plate bracket so the lens has an unobstructed rear view. Connect the camera's power to a switched 24 V source such as the vehicle's reverse lights; follow the Garmin installation instructions and local electrical standards. Pair the camera wirelessly with a compatible Garmin navigation unit and put the vehicle into reverse to display the live rearview image. If needed for longer vehicles, install the optional 15 m extension cable before pairing.

Recommendations

Professional installation by an automotive electrician is recommended for power connections and optimal camera placement. Regularly check the lens and housing for dirt or damage and clean with a soft cloth to maintain image clarity.
