Capture CA-CF460-680S kassalade

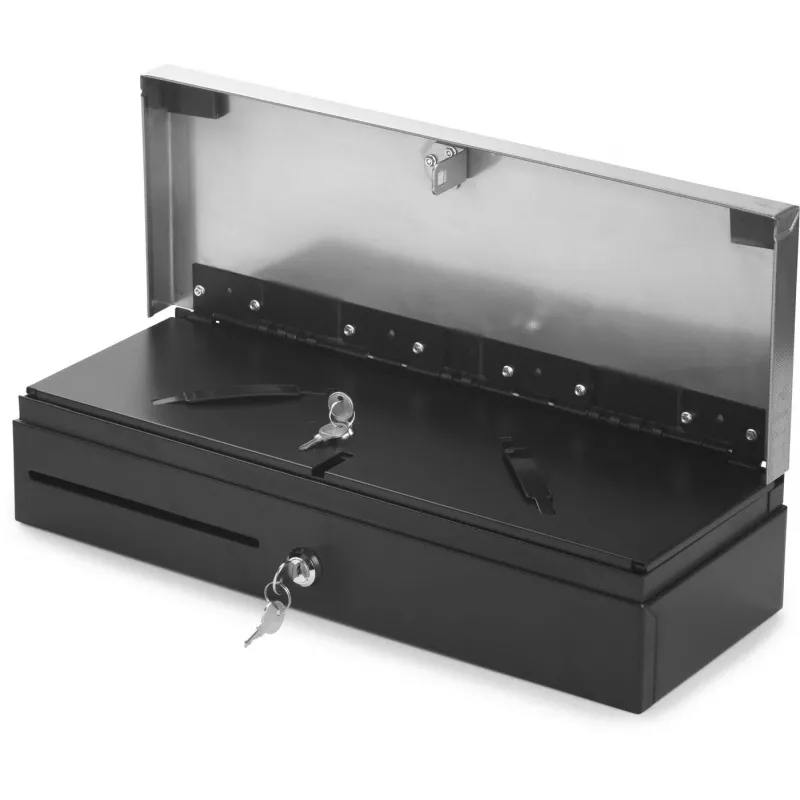

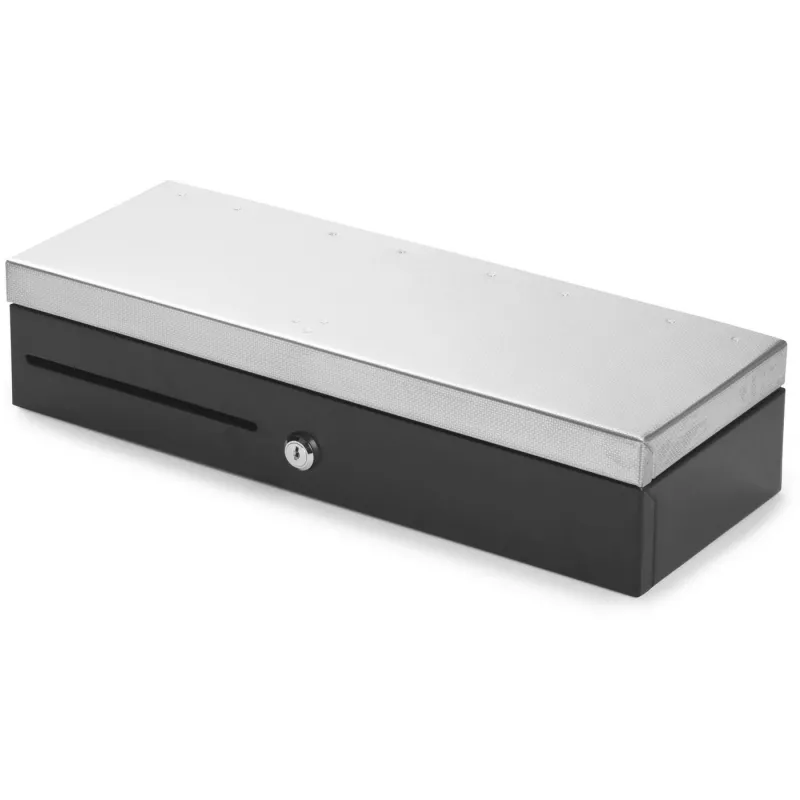

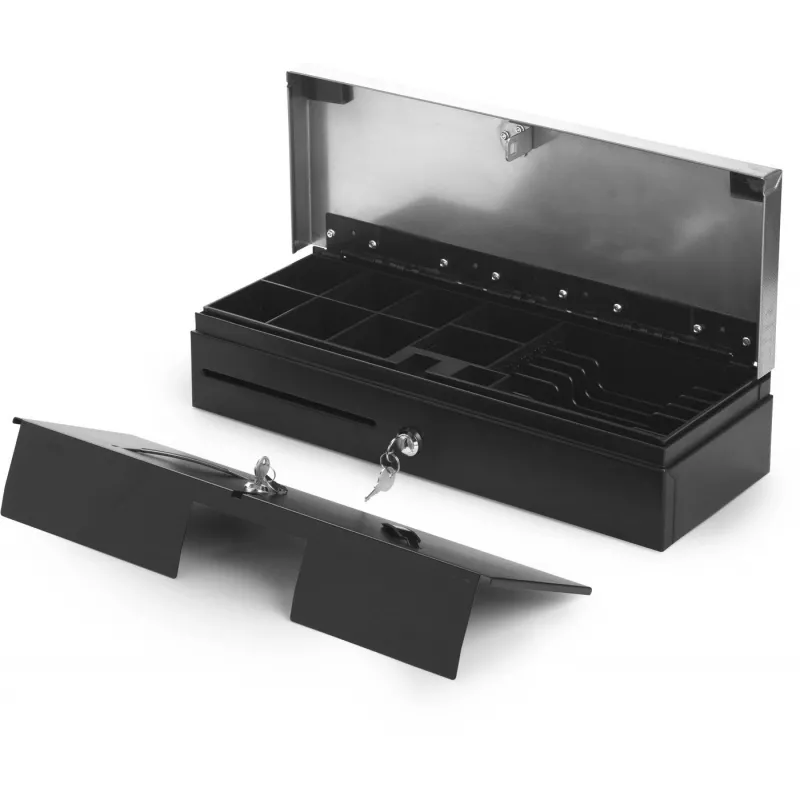

The Capture CA-CF460-680S cash drawer is constructed from durable steel and includes a plastic cash tray with flexible coin compartments and metal bill clips. It measures 460 mm (width) x 170 mm (depth) x 100 mm (height) and is supplied with two keys for secure manual locking. The drawer supports 12/24 V operation, features a 3-position lock and an internal micro switch, and provides a front access slot for checks and credit card receipts.

Advantages

Designed for retail and hospitality environments, this cash drawer offers a compact footprint and robust steel construction for long-term use. The included plastic tray with flexible coin dividers and metal bill clips keeps cash organized, while the 3-position lock and two keys provide basic physical security. Compatibility with receipt-printer triggering and the included RJ12 cable enable automatic opening when receipts are printed.

Suitable for

• Point-of-sale counters in shops and cafés
• Small retail and hospitality businesses
• Environments requiring printer-triggered cash drawer opening

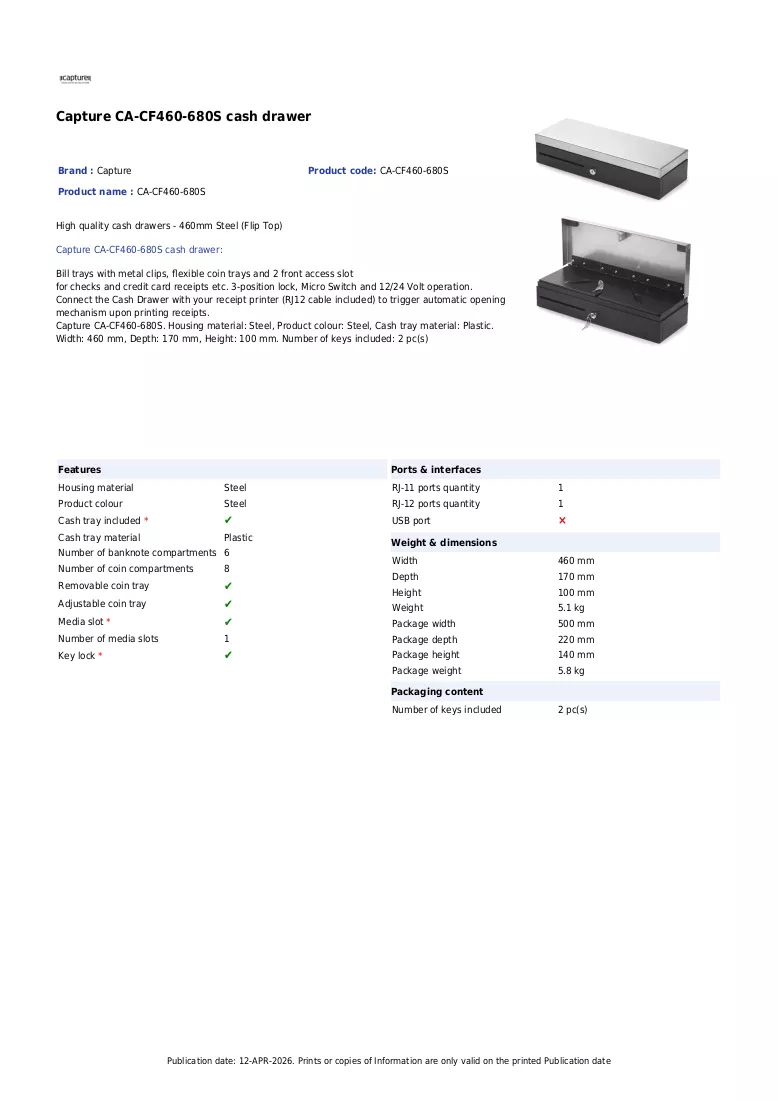

Key specifications

• Brand: Capture
• Model: CA-CF460-680S
• Dimensions (W×D×H): 460 × 170 × 100 mm
• Weight: 5.1 kg
• Material: Steel body with plastic cash tray
• Power: 12/24 V operation
• Lock: 3-position lock, includes 2 keys
• Interface: RJ12 cable included for printer-triggered opening

How to use

Install the cash drawer under or on the counter near your point-of-sale printer and connect it to the printer using the supplied RJ12 cable. Configure your POS or printer settings to enable drawer kick-out on receipt print if supported. Use the 3-position lock for normal operation, locked storage, or manual opening as required. The front slot allows insertion of checks and receipts without opening the drawer.

Recommendations

Use the drawer with a compatible receipt printer and the supplied RJ12 cable to ensure reliable automatic opening. Secure the drawer with the provided keys when unattended and avoid exposing the steel body to prolonged moisture to prevent corrosion.
