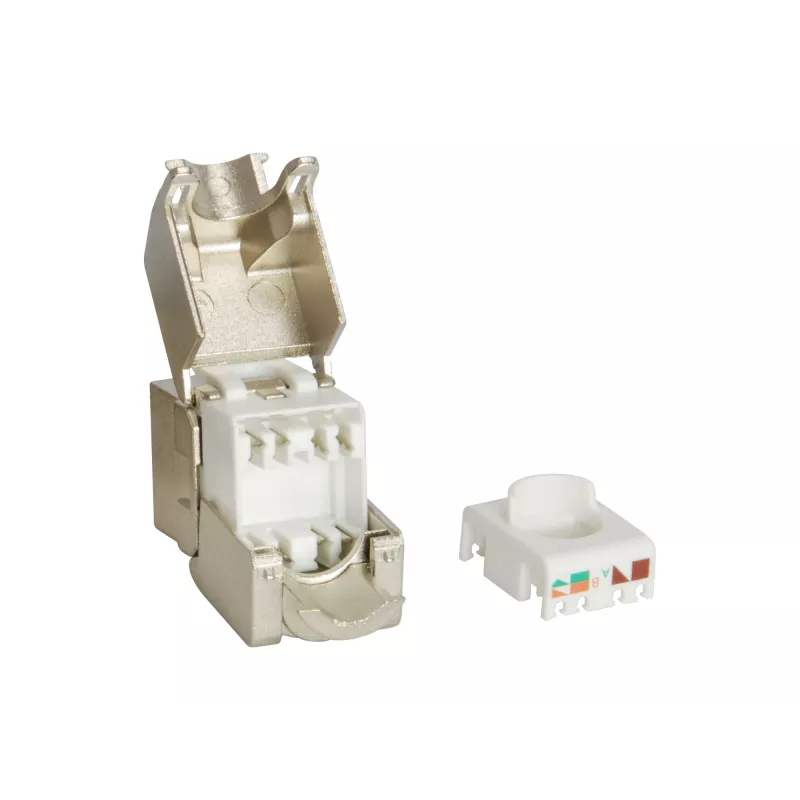

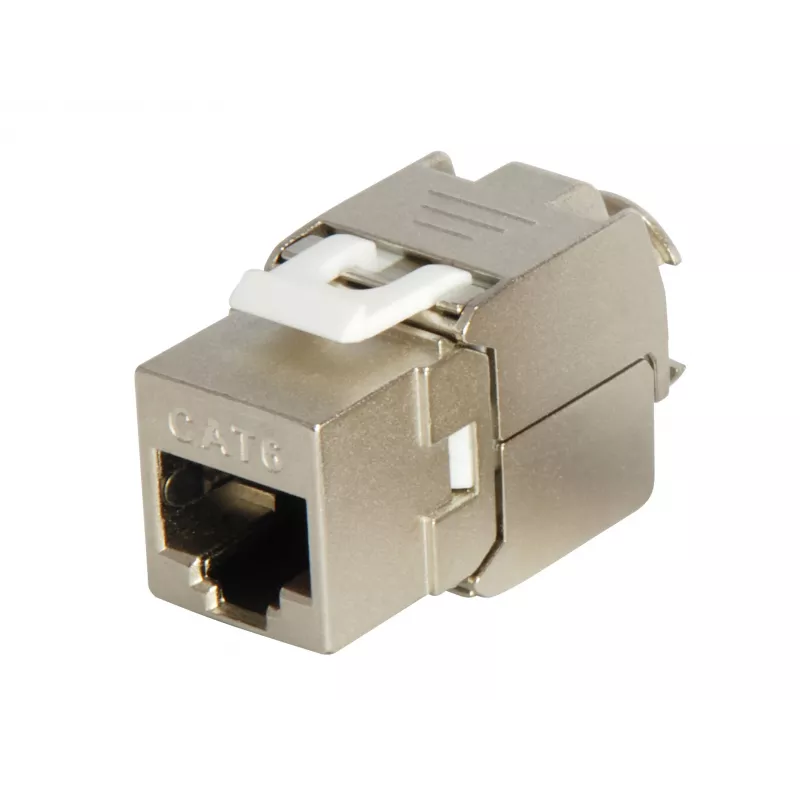

Cat.6 afgeschermde keystone-bus gereedschapsvrij Equip 767213

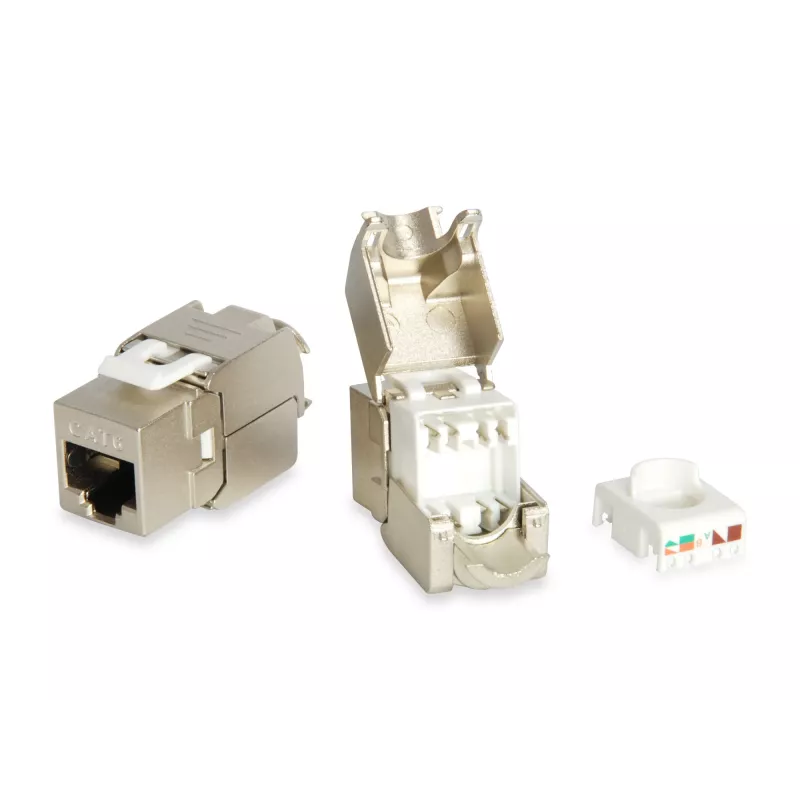

The equip® Cat.6 Shielded Keystone Jack Toolfree (model 767213) is a shielded RJ-45 module designed for Cat.6 cabling systems. Constructed with an aluminum housing and gold‑plated contacts, this keystone jack provides a durable, low‑loss connection for data and network installations. The tool‑free termination and LSA-style connection points allow quick assembly without special tools, and the jack fits standard faceplates, wall outlets and patch panels.

Advantages

The shielded aluminum body and gold‑plated contacts reduce electromagnetic interference and ensure consistent signal transmission. Tool‑free termination speeds up installation and reduces the need for additional tools. Compatibility with standard keystone openings gives flexible use in faceplates, wall‑mount outlets and patch panels for Cat.6 networks.

Suitable for

• Structured Cat.6 copper LAN installations
• Wall plates and patch panel mounting
• Environments requiring extra EMI/RFI protection
• Quick tool‑free terminations for professional or DIY installations

Key specifications

• Brand: EQUIP
• Model / MPN: 767213
• EAN: 4015867206720
• Category: Cat.6, shielded
• Connector: RJ‑45 keystone, LSA termination style
• Contacts: gold‑plated
• Housing: aluminum (shielded)
• Tool‑free installation: yes

How to use

Prepare the Cat.6 cable by stripping the outer sheath and aligning pairs according to the required wiring standard (T568A or T568B). Insert the individual conductors into the LSA-style slots of the keystone jack following the colour code printed on the module. Press the internal termination mechanism to secure the conductors; no punch‑down tool is required. Snap the keystone jack into a compatible faceplate, wall outlet or patch panel and connect an RJ‑45 plug to the front port.

Recommendations

For best performance, use stranded or solid Cat.6 cable of appropriate quality, maintain correct pair untwisting length, and ensure the shield continuity is properly connected to the system ground when installing in environments with elevated EMI/RFI.
