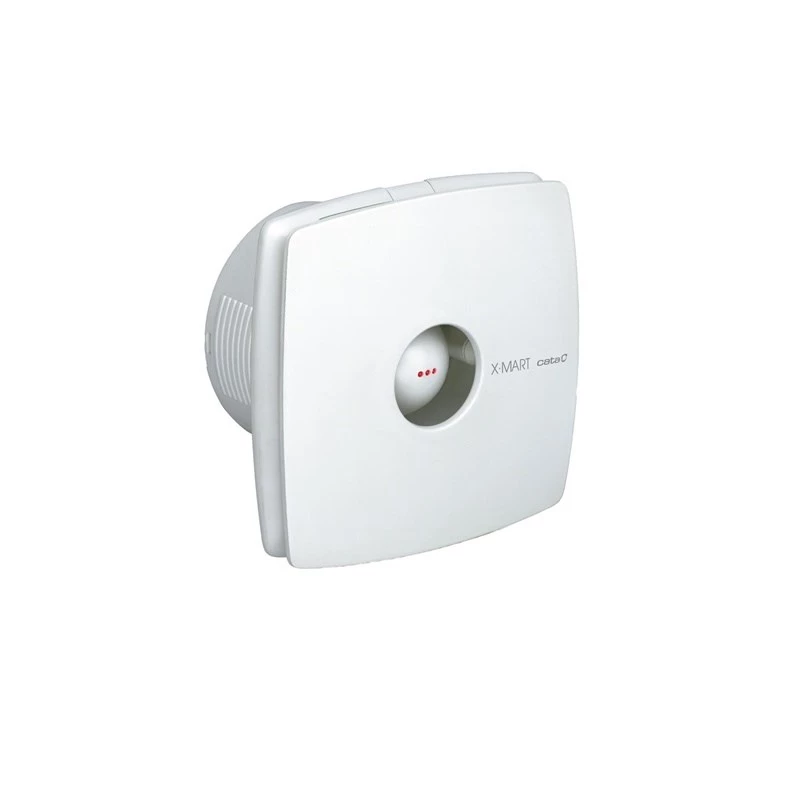

CATA X-MART 12 T wit timer badkamerafzuiger 190 m³/h

The CATA X-MART 12 T stands out with its integrated adjustable timer and IPX4 splash protection, making it a dependable choice for bathrooms and other moisture-prone spaces. Unlike basic axial fans, this model combines a long-life ball bearing motor with a backdraft shutter to prevent cold air ingress when not in use.

Highlights

• Extraction rate of 190 m³/h for efficient ventilation
• Adjustable timer (3–15 minutes) for automatic shut-off
• IPX4 rating: protected against splashing water
• Integrated backdraft shutter to block reverse airflow
• Long-life ball bearing motor for quiet, durable operation
• Surface-mounted design for easy wall or ceiling installation

In daily use

The X-MART 12 T operates at a low 38 dB(A), ensuring minimal disturbance. Its 120 mm duct connection fits standard ventilation pipes, and the white ABS plastic front grille blends seamlessly into modern interiors. The timer can be set to keep the fan running after you leave the room, effectively removing residual humidity and odours.

Full specifications

• Extraction rate: 190 m³/h
• Power consumption: 15 W
• Noise level: 38 dB(A)
• Duct diameter: 120 mm
• Timer: adjustable 3–15 minutes
• Voltage: 230 V / 50 Hz
• Current: 0.11 A
• Motor speed: 2400 rpm
• IP rating: IPX4
• Mounting: wall or ceiling, surface mounted
• Material: ABS plastic
• Colour: white
• Front grille dimensions: 170 x 170 mm
• Total depth: 98 mm
• Backdraft shutter: integrated

Final note

With its robust build, practical timer, and silent performance, the CATA X-MART 12 T is an excellent solution for continuous or intermittent ventilation in residential bathrooms and utility rooms.
