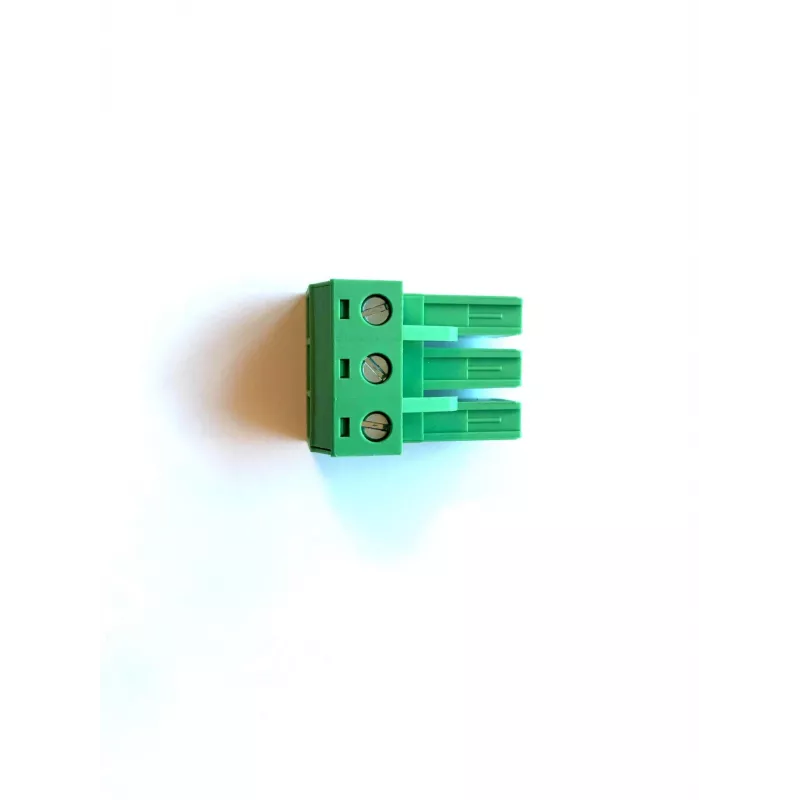

CHARGE AMPS aansluitklem steekbaar 16-32, 4-polig, 5,08 mm rastermaat, schroefaansluiting, groen

Secure electrical connections in compact spaces can be challenging, especially when you need a reliable, reusable solution for industrial or charging infrastructure. The CHARGE AMPS Terminal Block Plug-in 16-32 solves this by offering a robust pluggable terminal block with screw connections, designed for easy wiring and maintenance.

Who is it for

This terminal block is ideal for electricians, panel builders, and technicians working on EV charging stations, industrial control systems, or any application requiring a detachable, high-quality connection point. It suits installations where space is limited but performance cannot be compromised.

Main features

• Pluggable design with screw flange for secure mounting and easy disconnection
• 4 positions with 5.08 mm pitch, accommodating wires from 0.2 to 2.5 mm² (24-12 AWG)
• Rated for 320 V and 12 A, suitable for low-voltage power and signal circuits
• Polyamide (PA) housing in green, UL 94 V0 flammability rated
• Front conductor entry with M3 screw terminals and 7 mm stripping length
• Operating temperature range from -40 °C to 100 °C

Specifications

• Product Type: Plug-in Terminal Block
• Number of Positions: 4
• Pitch: 5.08 mm
• Connection Method: Screw Connection
• Wire Gauge (Solid): 0.2 - 2.5 mm²
• Wire Gauge (Stranded): 0.2 - 2.5 mm²
• Wire Gauge (AWG): 24 - 12 AWG
• Rated Voltage (IEC/EN): 320 V
• Rated Current (IEC/EN): 12 A
• Insulating Material: Polyamide (PA)
• Color: Green
• Mounting Type: Free-hanging (with screw flange)
• Conductor Entry Direction: Front
• Screw Thread: M3
• Stripping Length: 7 mm
• Flammability Rating (UL 94): V0
• Operating Temperature: -40 °C to 100 °C
• Number of Rows: 1
• Series: MSTBT 2,5
• Contact Surface: Tin-plated

Tips

When wiring, strip exactly 7 mm of insulation for optimal contact and torque the M3 screws to the manufacturer's recommendation. The pluggable nature allows for quick disconnection during testing or replacement without rewiring the entire block.
