Charge Amps Dawn Professional DE Eichrecht 131626

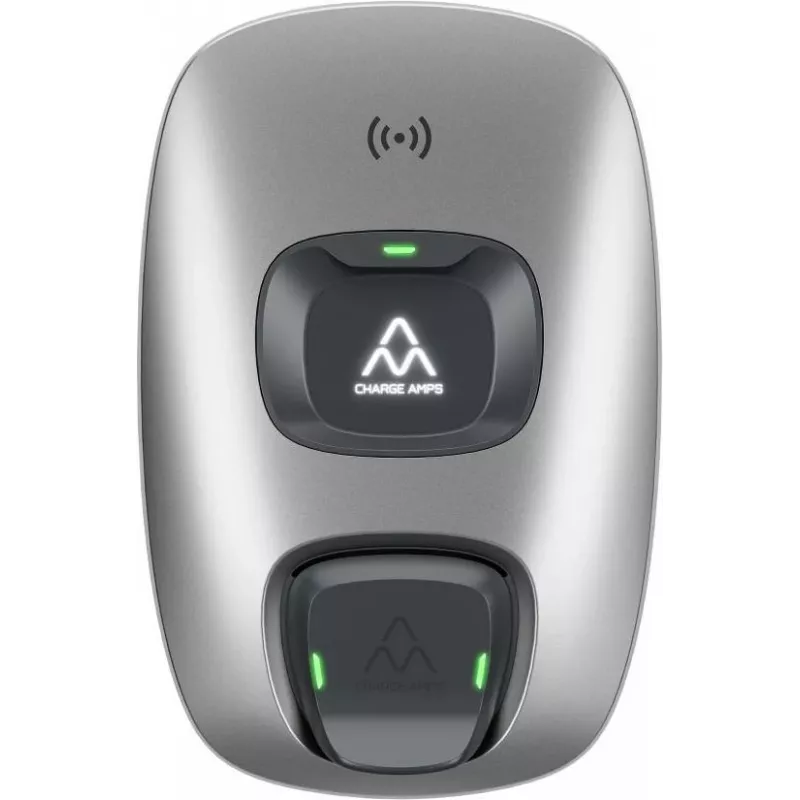

The Charge Amps Dawn Professional DE Eichrecht 131626 is a German-compliant EV charging station that integrates a certified MID energy meter for transparent billing. Unlike standard charging points, it delivers up to 22 kW through a Type 2 socket and includes both AC and DC residual current protection, eliminating the need for external RCDs.

Highlights

• Eichrecht-compliant with integrated MID meter for accurate energy measurement
• Up to 22 kW charging power (32 A, 1-phase or 3-phase)
• Integrated 6 mA DC and 30 mA Type A RCD protection
• Robust IP55 and IK10 rated enclosure made from recycled aluminum
• Multiple connectivity options: Wi-Fi, Bluetooth, Ethernet, and 4G
• OCPP 1.6 J protocol for smart charging and load management
• RFID and app authentication for controlled access
• Wall- or pole-mountable with integrated cable holder

In daily use

Designed for professional and semi-public installations, the Dawn Professional handles harsh Nordic conditions with an operating range of -30°C to +50°C. The LED status indicator provides clear charging feedback, while dynamic load balancing (with optional Amp Guard) optimizes power distribution across multiple stations.

Full specifications

• Charging power: up to 22 kW
• Charging current: up to 32 A
• Phases: 1-phase or 3-phase
• Connector type: Type 2 socket
• Eichrecht compliance: Yes, certified for Germany (MID meter integrated)
• DC fault current protection: integrated 6 mA DC RCD
• AC fault current protection: integrated 30 mA Type A RCD
• Connectivity: Wi-Fi, Bluetooth, Ethernet (RJ45), 4G (integrated)
• Communication protocol: OCPP 1.6 J
• Authentication: RFID, Charge Amps App
• Load management: dynamic load balancing (with optional Charge Amps Amp Guard)
• Enclosure protection: IP55
• Impact resistance: IK10
• Operating temperature: -30°C to +50°C
• Material: recycled aluminum
• Installation type: wall-mounted or pole-mounted
• User interface: LED status indicator
• Cable management: integrated cable holder

Final note

A future-proof charging solution that meets German calibration law and supports OCPP for seamless integration into existing EV charging networks.
