Chenbro HDD-behuizing 4xSAS/SATA 12Gb/s SR107+ OEM

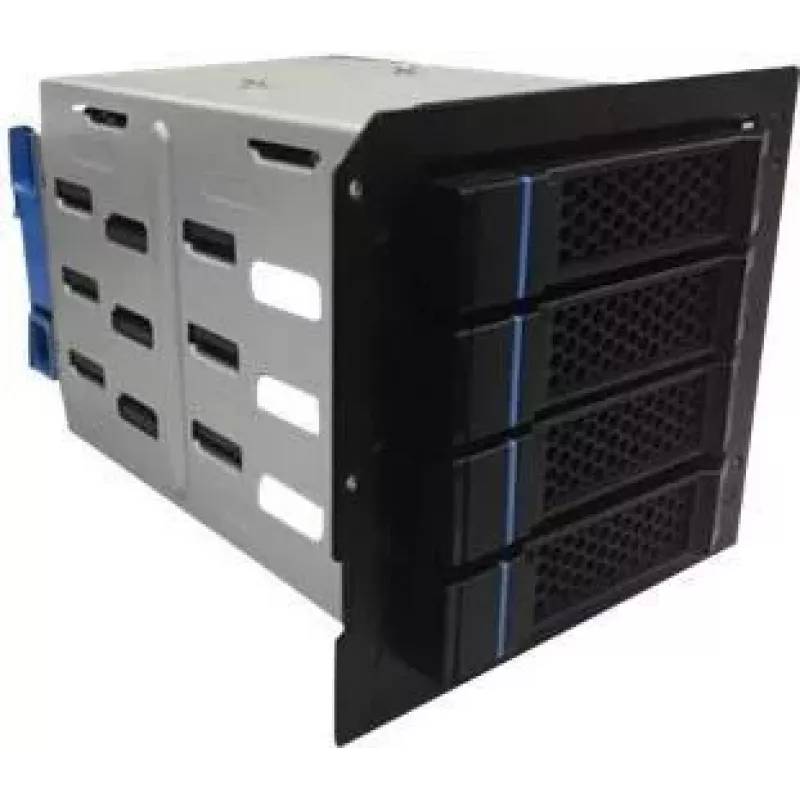

The Chenbro HDD Cage SR107+ is a high-performance 4-bay storage enclosure designed for 3.5-inch SAS/SATA hard drives and SSDs. It supports data transfer rates up to 12Gb/s per drive, making it ideal for enterprise and data center environments requiring reliable hot-swap storage expansion.

Advantages

This drive cage offers exceptional flexibility and performance. With support for both SAS-3 and SATA-3 interfaces, it ensures compatibility with a wide range of drives. The hot-swap capability allows for drive replacement without system downtime, while the built-in 80mm cooling fan with 3-speed control maintains optimal operating temperatures. The key lock feature provides security for drive trays, preventing unauthorized removal.

Suitable for

• Server and workstation storage expansion
• Data centers requiring high-speed SAS/SATA connectivity
• RAID arrays and NAS systems
• Video surveillance and media production storage

Key specifications

• Drive Bay Capacity: 4 Bays
• Supported Drive Types: 3.5" SAS/SATA HDDs/SSDs
• Drive Interface: SAS-3 / SATA-3
• Data Transfer Rate: Up to 12Gb/s per drive
• Installation Bays Required: Three 5.25" external drive bays
• Hot-Swap Support: Yes
• Backplane Interface: 2 x Mini-SAS HD (SFF-8643)
• Power Connector: 2 x SATA 15-pin power connectors
• Cooling System: 1 x 80mm cooling fan
• Fan Speed Control: 3-speed switch
• LED Indicators: Power, Drive Activity (per bay)
• Security Features: Key lock for drive trays
• Construction Material: SECC Steel
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 80% (non-condensing)
• Compatibility: Compatible with most standard 3.5" SAS/SATA drives

Recommendations

For optimal performance, pair this drive cage with enterprise-grade SAS or SATA SSDs. Ensure your system has three available 5.25-inch drive bays and a compatible SAS/SATA controller with Mini-SAS HD connectors.
