Chief LSA1U bewegwijzeringsdisplay-beugel 160 cm (63 inch) zwart

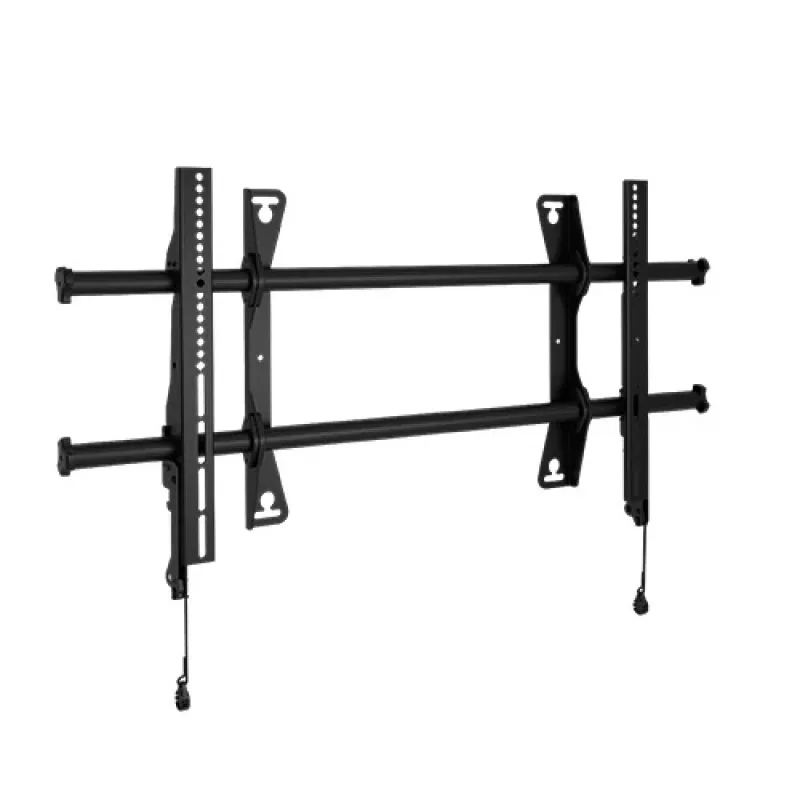

Chief LSA1U signage display mount supports single flat-panel screens from 94 cm (37") up to 160 cm (63") with a maximum weight capacity of 90.9 kg. The mount fits VESA patterns from 100 x 100 mm to 870 x 400 mm and features a low-profile black design intended for secure, stable wall installation of large signage displays.

Advantages

This installer-inspired fixed wall mount includes an integrated teardrop wall plate for faster wall-plate installation, Centerless Shift offering up to 17.4" (441 mm) of post-installation lateral adjustment, and ClickConnect latching that provides an audible click when the display engages. Set screws maintain rigidity and security over the life of the installation, while built-in cable stand, improved end caps and Quick-Store Cords simplify cable management. The mount also supports multiple stud distances, nesting spacers for adjustable depth, integrated security and a custom hardware kit that can hang from the rails for staged installations.

Suitable for

• Commercial signage and digital displays in retail or hospitality environments
• Conference rooms and boardrooms requiring large fixed displays
• Public information screens in transportation hubs or lobbies
• Any wall-mounted single display from 37" to 63" up to 90.9 kg

Key specifications

• Supported screen size: 94 cm (37") to 160 cm (63")
• Maximum weight capacity: 90.9 kg
• VESA compatibility: 100 x 100 mm to 870 x 400 mm
• Number of displays supported: 1
• Product colour: Black
• Post-installation lateral shift: up to 17.4" (441 mm)

How to use

Mount the teardrop-style wall plate to a suitable wall surface and secure bolts; the design allows pre-installation of bolts to speed up the process. Attach the display brackets to the display using the appropriate VESA pattern and lift the display onto the mount until the ClickConnect latch audibly engages. Use the Centerless Shift feature to laterally centre the display as needed and tighten the set screws to keep the installation rigid. Route cables into the built-in cable stand and use the Quick-Store Cords and end caps for organised cable storage.

Recommendations

Ensure the wall structure and mounting location can support the display weight (up to 90.9 kg) and that the chosen stud spacing and VESA pattern match the display. Follow local building codes and use the supplied hardware kit; for staged installations, hang the hardware from the mount rails as provided. Tighten set screws after final positioning and secure integrated security features where required.
