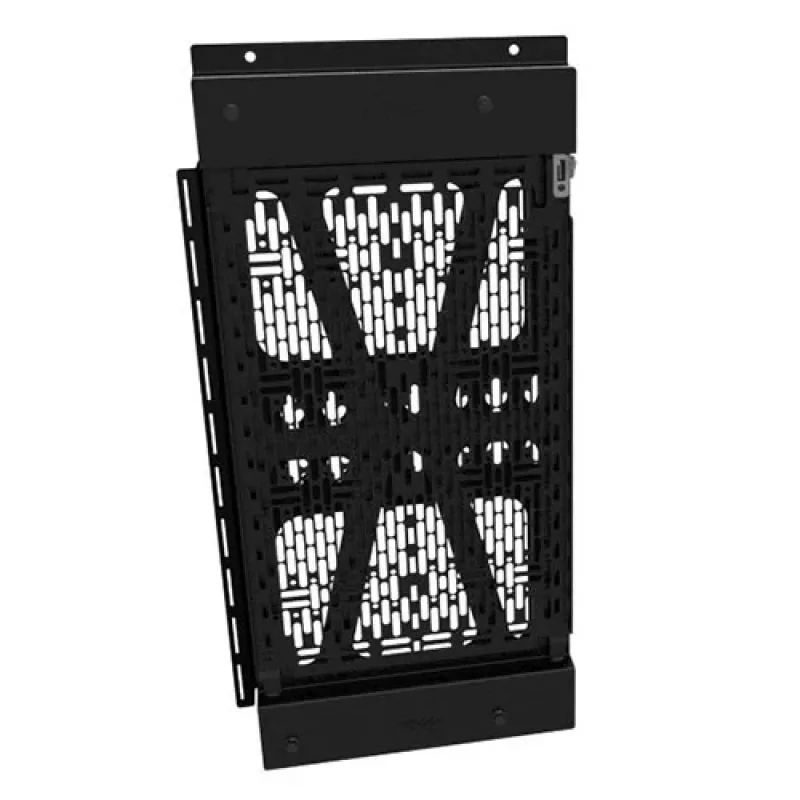

Chief Proximity Component Storage Slide-Lock paneel zwart 6,8 kg wandmontage

The Proximity® Component Storage Slide-Lock Panel facilitates easy, concealed mounting of AV equipment behind displays. To simplify service and accessibility to the equipment simply slide the storage panel out. Install on wall or attach to Fusion® mounts* left, right, or below the display. The built-in and tool-free 15” x 10” Lever Lock™ plate is easily removed and replaced from the slide-lock panel to service the equipment post-installation without touching the display. With a 15 lb. (6.8 kg) weight capacity, this storage panel will hold most small devices for AV installations.

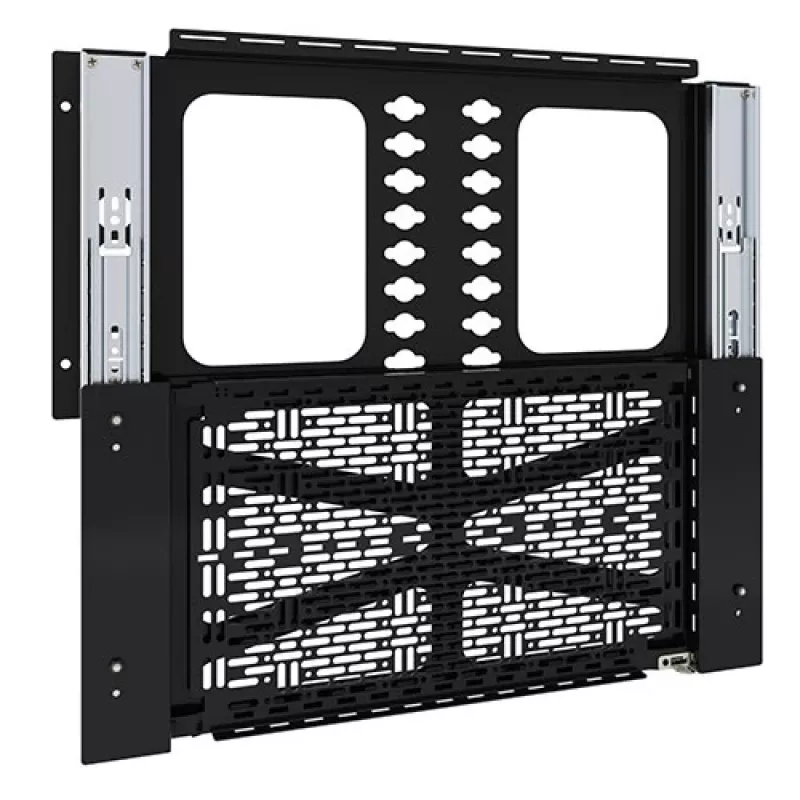

The innovative slides on the CSSLP15X10 secure the storage panel and stop it from falling out or down with a push-to-open and push-to-close mechanism. This gives designers, consultants, and installers the flexibility to decide where to best position the storage panel behind the display.

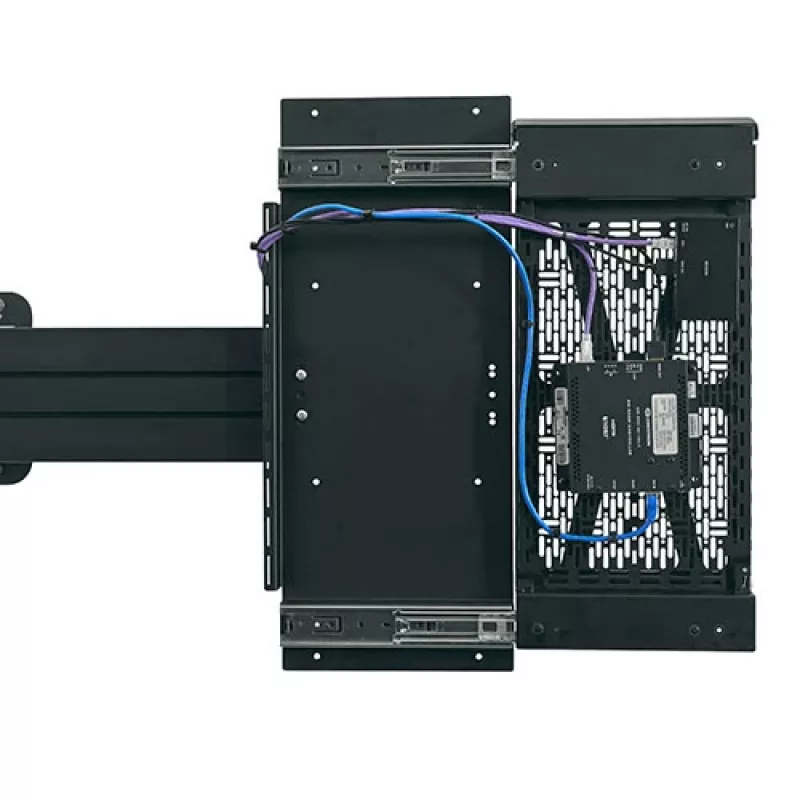

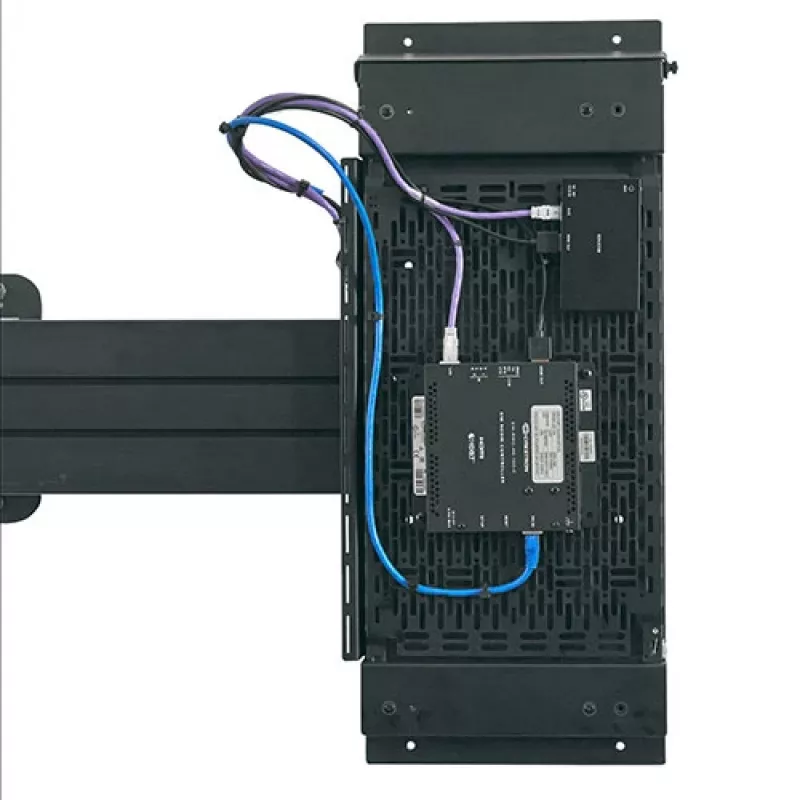

The patented universal small device mounting pattern of the Lever Lock plate offers the versatility to mount devices with cable ties, hook and loop fasteners, or nuts and bolts. Use Forward accessories to speed up cable management and small device mounting.

- CSSLP15x10 supports a range of small devices and components on a 9.85" x 15.86" (25 x 40 cm) mounting plate footprint.
- Facilitate offsite integration and service with removable Lever Lock™ panel
- Compatible with Middle Atlantic Forward® small device mounting clips and cable management
- Plastic removable rivet included to secure the Lever Lock™ plate to the Slide-Lock Panel

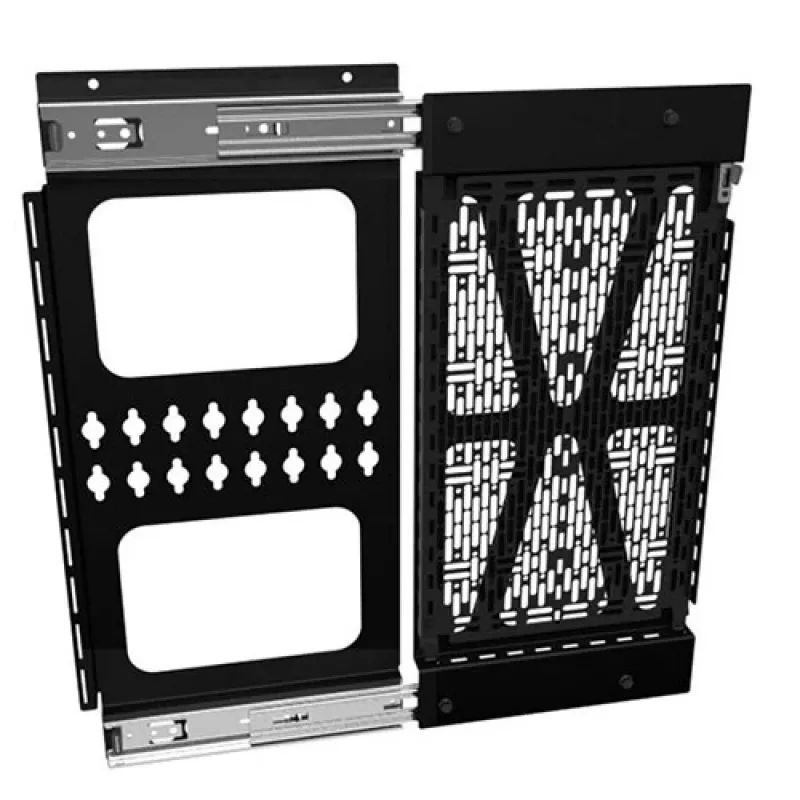

- Simple push-to-open operation to extend and retract slide-lock panel behind displays
- Ultimate storage flexibility!

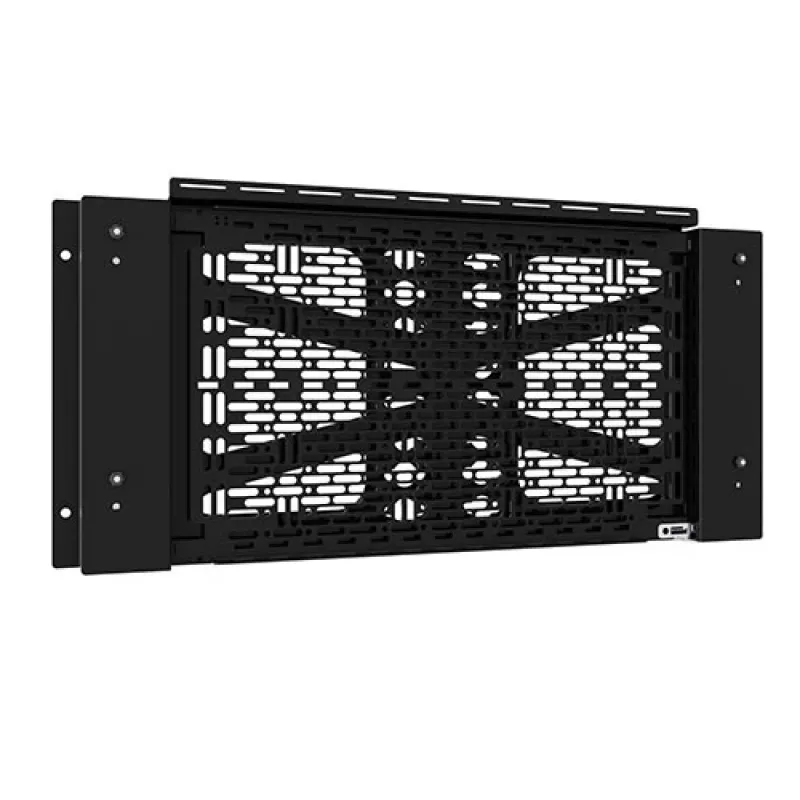

- Mounting options in portrait or landscape

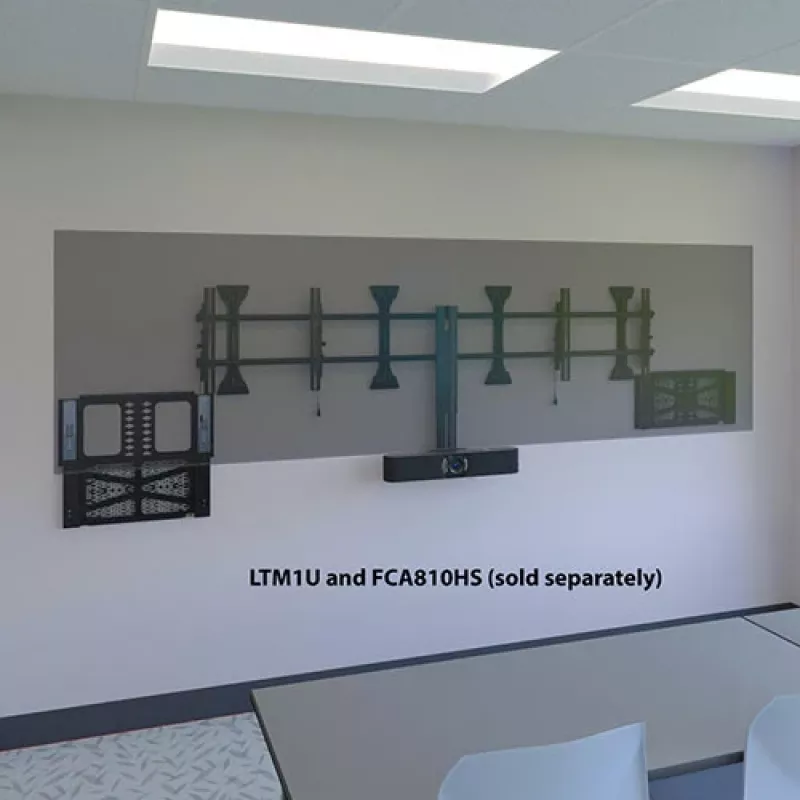

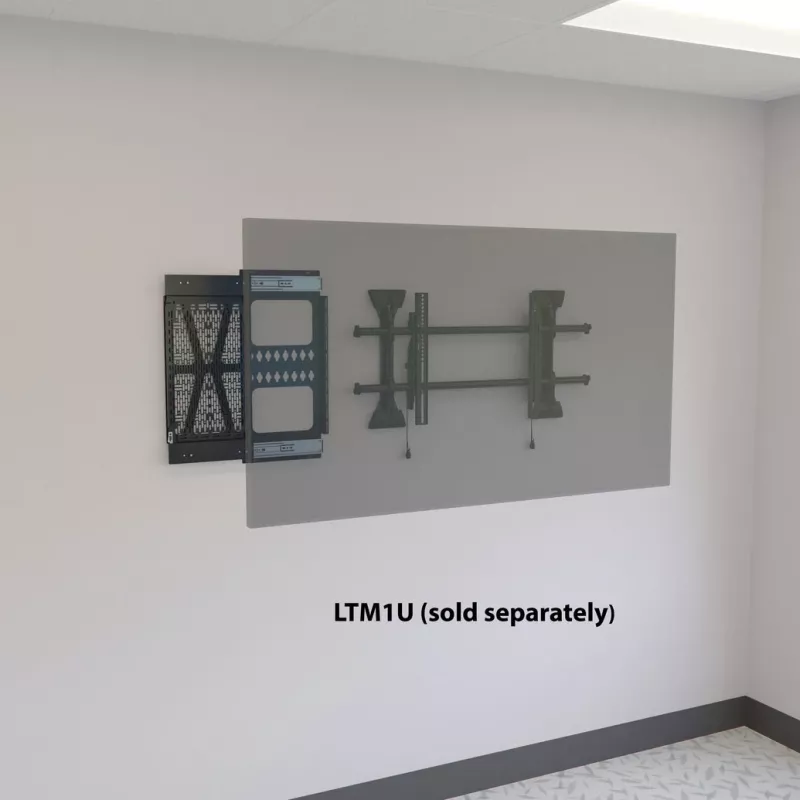

- Install to the left, right or below display
- Attach to wall or Fusion mounts*

*The CSSLP15X10 can attach to Fusion ceiling mounts (including LCM & LWM menu boards) or carts and stands.

Chief Proximity Component Storage Slide-Lock Panel. Product colour: Black, Maximum weight capacity: 6.8 kg, Mounting type: Wall. Width: 272 mm, Depth: 35 mm, Height: 577 mm

How to use

Install the slide-lock panel to a suitable wall surface or attach it to compatible Fusion® mounts, aligning the panel to the left, right or below the display as required. Use the push-to-open mechanism to slide the panel out for device installation or maintenance, then push to close and secure it behind the display. Fit small devices to the removable Lever Lock™ plate using cable ties, hook-and-loop fasteners, or screws as appropriate, then reattach the plate to the slide-lock panel and secure it with the provided removable rivet.

Recommendations

Do not exceed the 15 lb (6.8 kg) weight capacity. For reliable airflow and heat dissipation, position heat-generating components where ventilation is adequate and follow device manufacturer installation instructions. Use compatible Middle Atlantic Forward® accessories for improved cable management and security.
