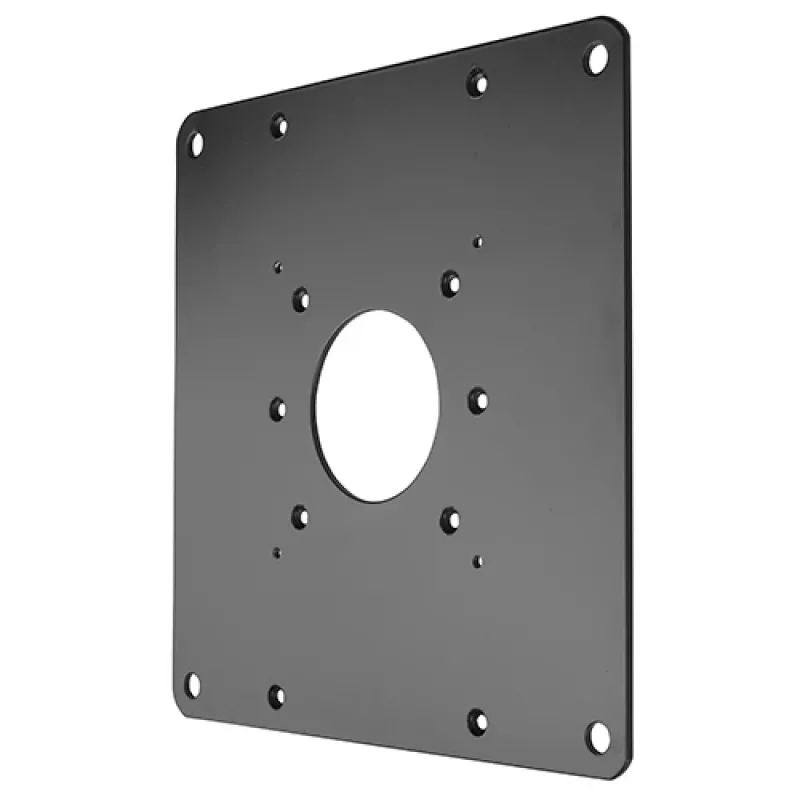

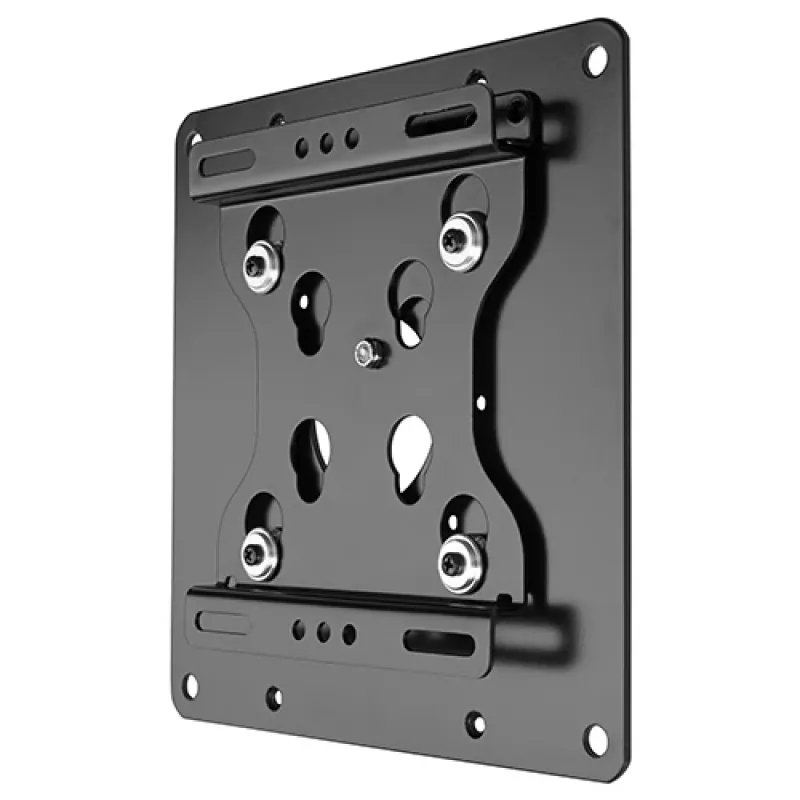

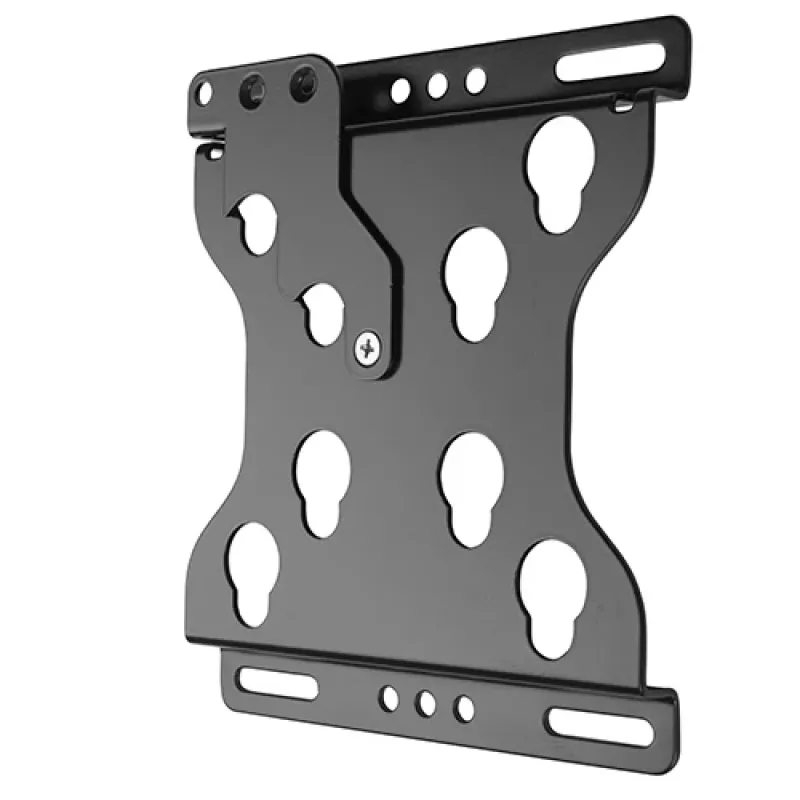

Chief Small flat Panel vaste wandbeugel voor displays

FSR1U is a low-profile fixed wall display mount designed for small flat panel digital signage and hospitality applications. It supports a wide range of VESA patterns for displays from 10" to 32" and provides a secure, space-saving installation with a maximum installation depth of 0.75" (19 mm).

Advantages

The mount offers an ultra-low-profile installation depth of only 0.75" (19 mm) and can be mounted in either portrait or landscape orientation. Chief's Q-Latch™ mounting system speeds up installation and a Latch Extender is included to simplify latch access when used with larger displays. Compatible with multiple VESA patterns, the FSR1U accommodates a variety of small displays while maintaining security for use in public spaces.

Suitable for

• Small digital signage screens (10"–32")
• Hospitality displays in hotels, restaurants, and lobbies
• Compact office or meeting-room monitors
• Public spaces where a low-profile, secure mount is required

Key specifications

• Model: Chief FSR1U
• Supported screen size: 10" to 32"+
• Maximum weight capacity: 20.4 kg
• VESA compatibility: 50 x 50 mm to 200 x 200 mm
• Installation depth: 0.75" (19 mm)
• Orientation: portrait or landscape
• Color: black
• Mounting system: Q-Latch™ with included Latch Extender

How to use

Position the FSR1U on the wall at the desired height, mark and drill mounting holes according to the included template and secure the mount to a suitable wall structure. Attach the display to the mount using the appropriate VESA holes and hardware for the display's pattern and weight. Engage the Q-Latch™ to lock the display in place; use the supplied Latch Extender if access to the latch is restricted by larger displays. Verify the mount is secure before releasing the display.

Recommendations

Ensure the wall structure and mounting hardware are rated to support the display weight (maximum 20.4 kg). Use proper anchors for drywall or consult a professional installer for masonry or uneven surfaces. Regularly check the mount and fasteners for security in public installations.
