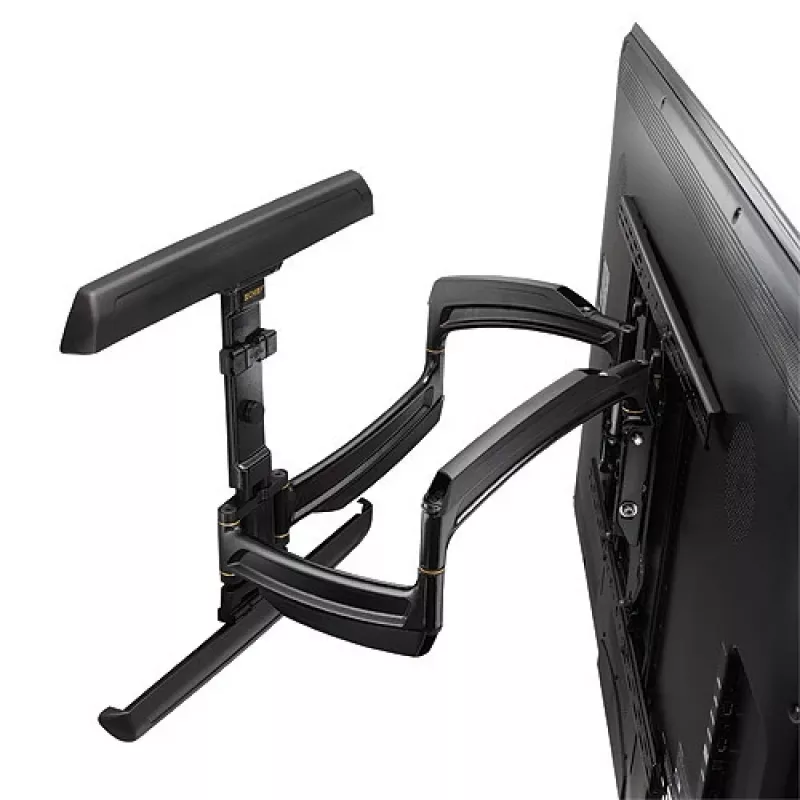

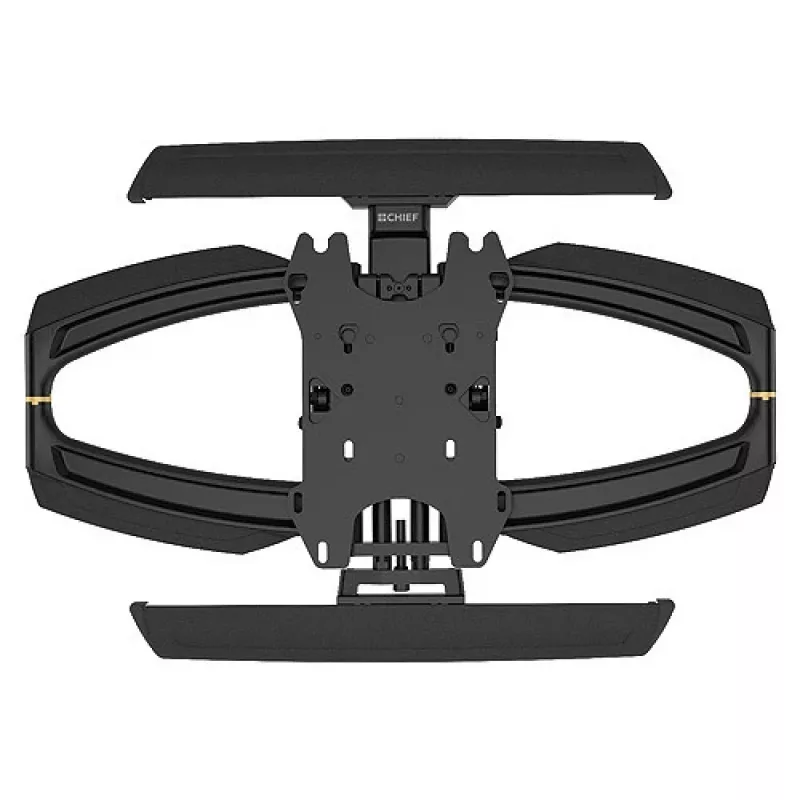

Chief TS525TU tv-wandbeugel 147,3 cm (58 inch) zwart

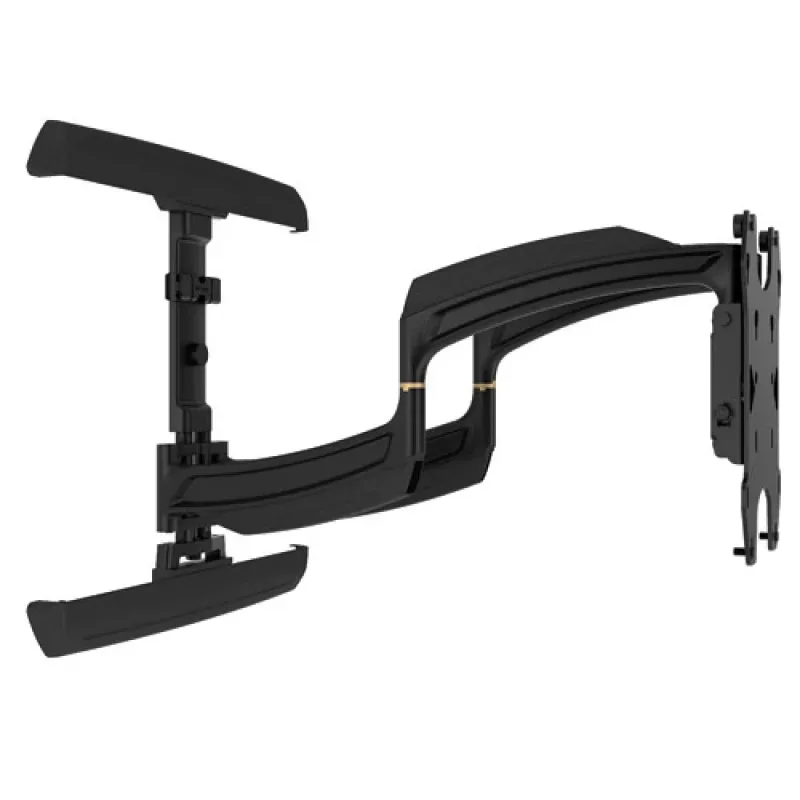

The Chief TS525TU is a lightweight, low-profile full-motion wall mount for TVs 37–58" (94–147.3 cm). Designed for LED, LCD and plasma screens, it supports a maximum weight of 56.7 kg and VESA patterns from 100 x 100 mm up to 800 x 400 mm. The mount offers a compact appearance at the wall while enabling full extension, tilt and lateral adjustment for precise positioning.

Advantages

The ultra low-profile design collapses to 1.5" (38 mm) for a slim look when retracted, while full extension to 25" (635 mm) provides broad viewing range. Centris™ low-profile tilt allows effortless fingertip tilt up to 15° for optimal viewing angles. Centerless™ lateral shift provides up to 16" (406 mm) of side-to-side adjustment after installation to achieve perfect centering. Integrated cable management includes enclosed, tool-free cable covers and a wide open wall plate for easy routing of power and signal cables. Post-installation height adjustment of 1" (25 mm) enables final fine-tuning of screen placement.

Suitable for

• Home living rooms and media rooms with 37–58" TVs
• Office meeting spaces and conference rooms
• Retail displays and public information screens
• Installations requiring low-profile appearance with full articulation

Key specifications

• Supported screen size: 94–147.3 cm (37–58")
• Maximum weight capacity: 56.7 kg
• VESA compatibility: 100 x 100 mm up to 800 x 400 mm
• Tilt range: -15° to 15° (Centris™ low-profile tilt)
• Extension: retracts to 1.5" (38 mm); extends to 25" (635 mm)
• Lateral shift: up to 16" (406 mm) post-installation
• Post-installation height adjustment: 1" (25 mm)
• Colour: Black

How to use

Install the top rail level on the wall, then lift and slide the assembled mount onto the rail for a one-person installation. Attach the TV to the mount using the appropriate VESA holes and fasteners, route power and signal cables through the enclosed cable covers and secure them to the wall plate. Use the fingertip Centris™ tilt to set the viewing angle and extend or retract the arm to achieve the desired viewing distance. Perform lateral shift and the 1" post-installation height adjustment as needed to center and align the screen.

Recommendations

Check the TV's VESA pattern and weight to confirm compatibility with the Chief TS525TU. Use appropriate anchors or studs rated for the mount's load and follow all local mounting codes. When routing cables, ensure sufficient slack for full extension and articulation.
