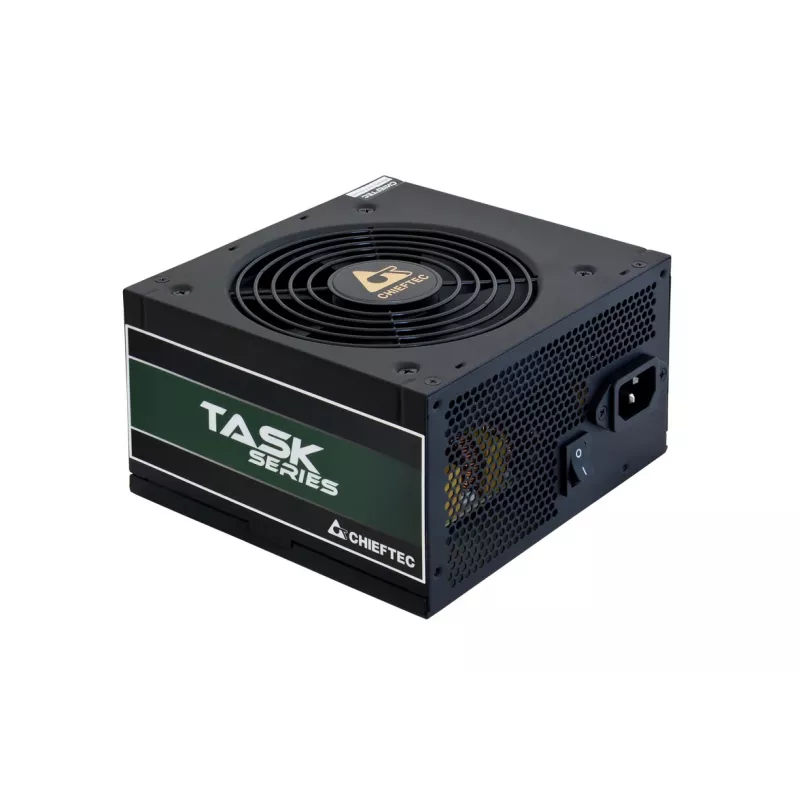

Chieftec Task TPS-600S voeding 600 W 20+4 pin ATX ATX zwart

Chieftec Task TPS-600S is a 600W power supply unit designed for desktop PCs, offering reliable power delivery with 80 PLUS Bronze efficiency. The unit includes a 20+4 pin ATX connector, wide 100–240V AC input range and a 120 mm cooling fan. Extended cable lengths (up to 650 mm for motherboard and CPU) make it suitable for larger cases while meeting RoHS and ErP requirements.

Advantages

The TPS-600S provides certified 80 PLUS Bronze efficiency for reduced energy losses and stable voltage delivery under typical loads. It features modern protection and safety functions and a 120 mm fan for effective cooling. Black housing and standard connectors, including a 20+4 pin ATX, support compatibility with a wide range of PC builds.

Suitable for

• Home and office desktop builds requiring up to 600 W
• Mid-tower and full-tower cases (cable lengths extended for easier routing)
• Systems needing an 80 PLUS Bronze certified PSU for energy-conscious builds

Key specifications

• Total power: 600 W
• Motherboard power connector: 20+4 pin ATX
• Input voltage: 100–240 V AC
• 80 PLUS certification: 80 PLUS Bronze

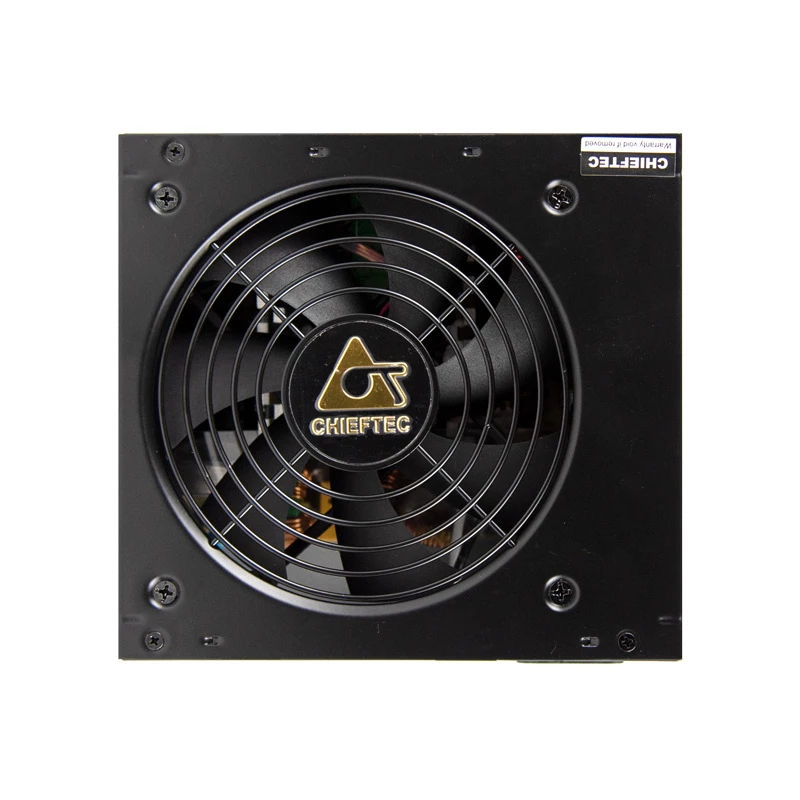

• Fan diameter: 120 mm
• Product colour: Black
• Weight: 1.67 kg

How to use

Install the Chieftec Task TPS-600S into a compatible PC case following standard PSU mounting procedures. Connect the 20+4 pin ATX to the motherboard and route extended CPU and peripheral cables to their respective connectors. Ensure mains voltage matches the unit's 100–240 V AC range and secure all connectors before powering on the system.

Recommendations

For optimal performance, allow unobstructed airflow to the 120 mm fan and use the extended cable lengths to reduce cable clutter. Verify system power draw does not exceed the 600 W rating and periodically check connections for firmness and dust accumulation.
