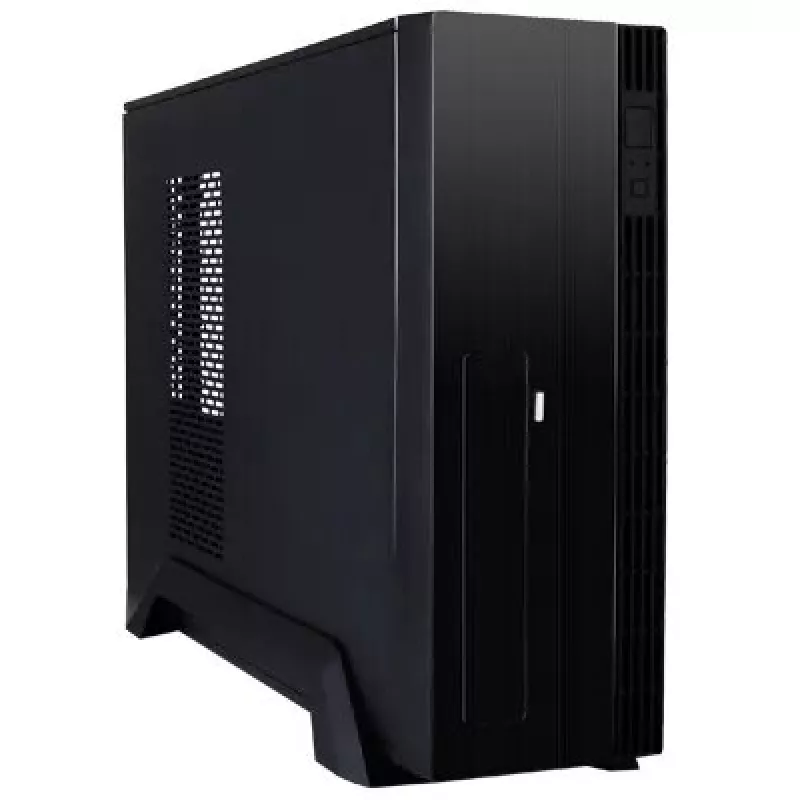

Chieftec UE-02B Computerbehuizing Mini Tower zwart 250 W

The Chieftec UE-02B Mini Tower Black is a compact mATX PC case that combines a simple all-black design with practical features for budget systems. The chassis measures 105 mm (W) × 410 mm (D) × 300 mm (H) and supports Micro ATX motherboards, one 3.5" and one 5.25" bay, and both 2.5" and 3.5" drives. A factory-fitted SFX-250VS 250 W power supply is included with some units, and the case supports up to four half-height expansion cards and optional cooling with two 8 cm fans.

Advantages

The UE-02B offers a compact footprint and straightforward internal layout that simplifies installation and cable management. Its included 250 W SFX power supply (when present) and support for multiple drive sizes make it suitable for basic desktop builds. The metal construction and modern stand provide stability and a corporate appearance while keeping weight low at 2.3 kg.

Suitable for

• Budget office or home desktop builds
• Compact Micro ATX systems
• Systems requiring both 2.5" and 3.5" drives
• Small footprints where space is limited

Key specifications

• Brand: CHIEFTEC
• Model: UE-02B
• Form factor: Mini Tower (supports Micro ATX)
• Power supply: SFX-250VS, 250 W (included in some units)
• Bays: 1 × 3.5", 1 × 5.25"
• Front I/O: 2 × USB 3.2 Gen 1 Type-A
• Drive support: 2.5" and 3.5"
• Expansion: up to four half-height cards
• Dimensions: 105 × 410 × 300 mm (W × D × H)
• Weight: 2.3 kg
• Material: Metal
• Colour: Black

How to use

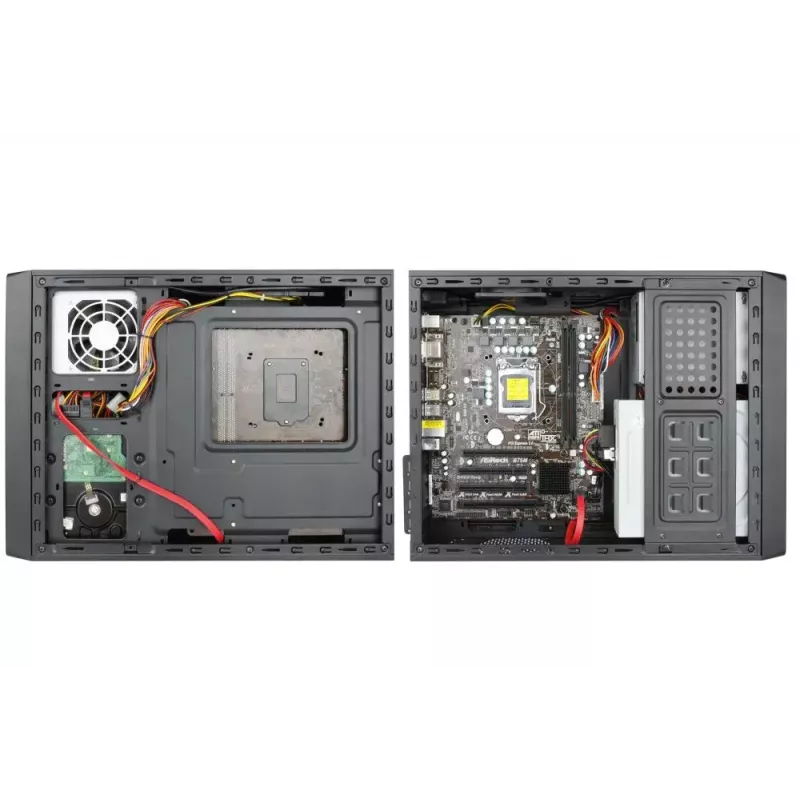

Install a Micro ATX motherboard onto the standoffs, fit storage drives into the appropriate 2.5" or 3.5" bays, and secure any half‑height expansion cards in the rear slots. Connect the included SFX-250VS power supply if present, or install a compatible SFX unit. Arrange cables to maintain airflow and, if desired, install up to two 8 cm fans to improve cooling.

Recommendations

For best results use low-power components that match the 250 W PSU capability when the factory power supply is included; if planning a higher-power graphics card or multiple drives, choose a higher-capacity SFX PSU. Maintain unobstructed airflow by routing cables cleanly and consider adding the optional 8 cm fans for improved cooling.
