Cinch (RCA)-busmodule DELOCK 90860 verguld extern

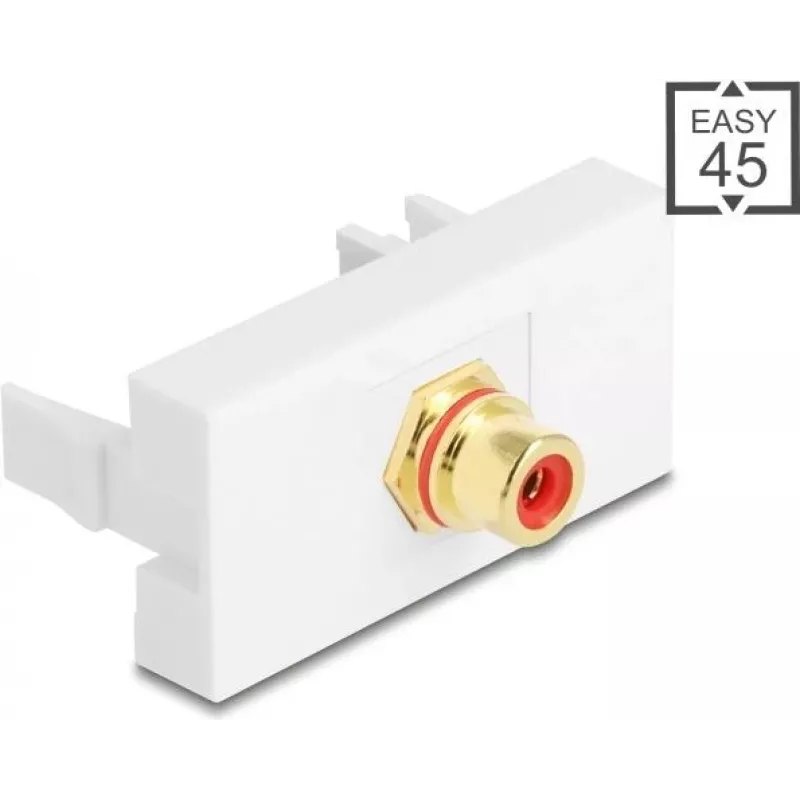

The DELOCK Cinch (RCA) Socket Module 90860 Gold Plated External provides a robust external RCA connection point for audio and video equipment. This module features gold-plated contacts to improve conductivity and resist corrosion, making it suitable for installations that require a stable signal path. The compact external module is intended for mounting in panels, enclosures or cases where an accessible RCA socket is needed for connecting cables, adapters or AV devices.

Advantages

Gold-plated contacts reduce oxidation and maintain low contact resistance over time, supporting reliable audio and video transmission. The external module design enables easy access to an RCA socket without opening the device enclosure, simplifying cable changes and maintenance. The module is compatible with standard RCA (Cinch) connectors and is built for stable mechanical and electrical connection.

Suitable for

Key specifications

How to use

Install the module into a suitable panel opening or enclosure cutout and secure it according to the mounting method provided by your chassis or case. Connect the RCA cable by inserting the male RCA plug into the female socket until it seats securely. Ensure correct signal wiring on the device side and verify grounding and shield continuity where applicable. For best results, use quality RCA cables and avoid excessive bending or strain on the connector during installation and use.

Recommendations

To preserve contact quality, avoid exposing the module to corrosive environments and perform periodic inspections of the connector mating surfaces. Use snug-fitting RCA plugs and route cables to minimize stress on the module. If connectors show wear or intermittent contact, replace the cable or module to maintain optimal audio/video performance.
