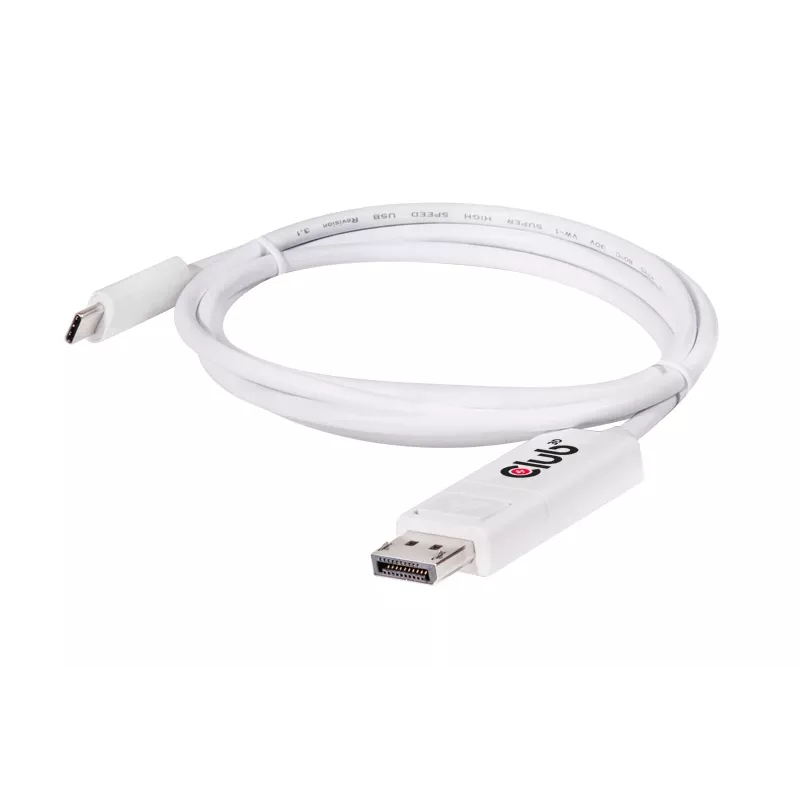

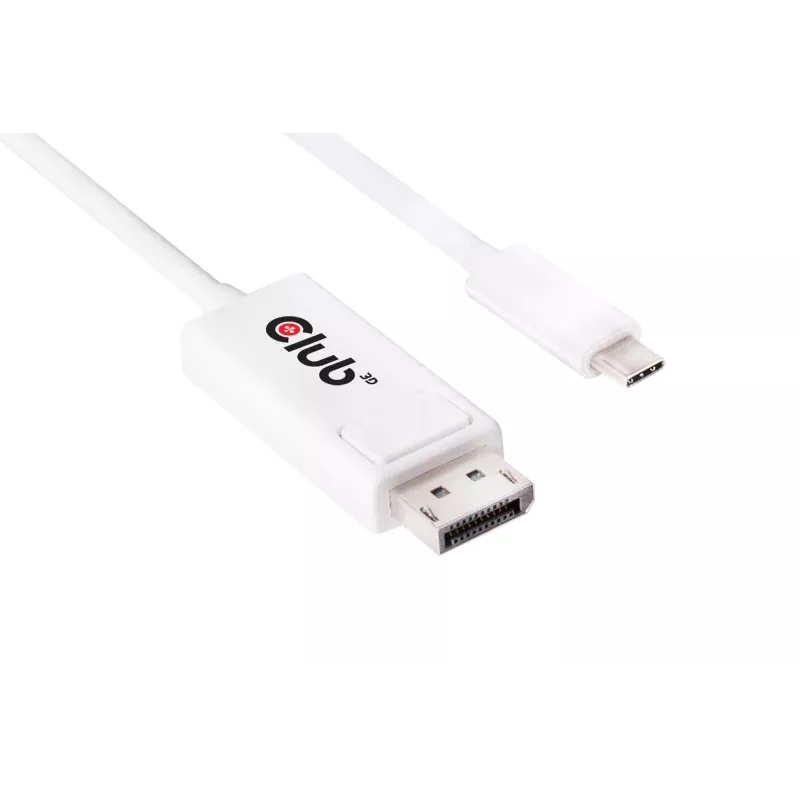

CLUB3D USB 3.1 type C kabel naar DisplayPort 1.2 UHD adapter

Connect your USB-C laptop or tablet to a DisplayPort monitor with the Club 3D CAC-1517. This active adapter cable uses DisplayPort Alternate Mode to deliver 4K UHD video at 60Hz and multi-channel audio from a single USB-C port, with no external power needed. The 1.2m white cable is ideal for presentations, video streaming, or extended desktop setups in the office or at home.

Key specifications

• Input: USB Type-C male (DisplayPort Alt Mode)
• Output: DisplayPort 1.2 female
• Max resolution: 3840 x 2160 @ 60Hz (4K UHD)
• Audio: Up to 8 channels digital audio
• Power: Bus-powered via USB-C

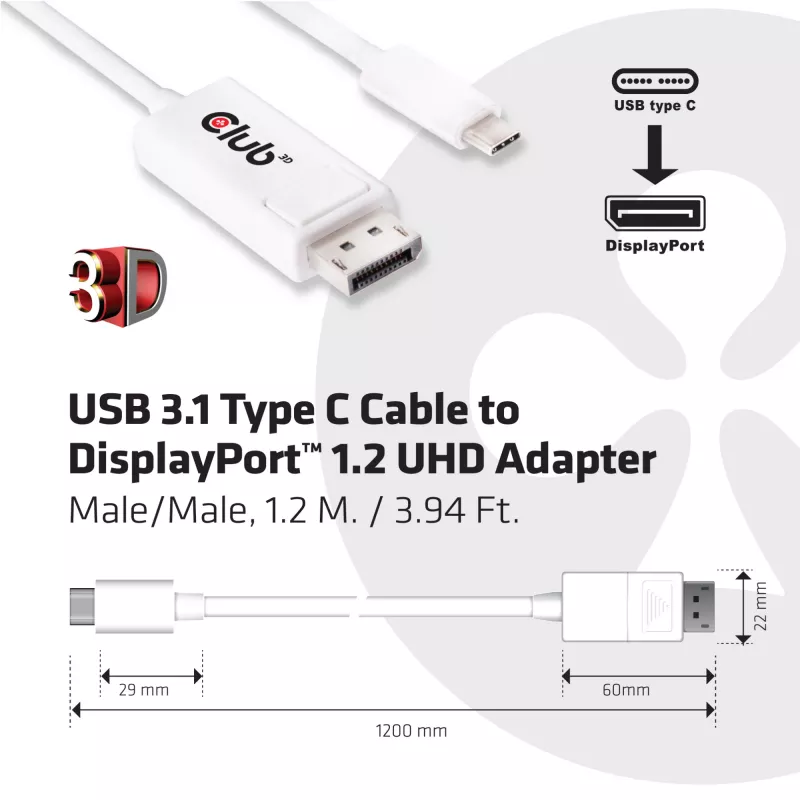

• Cable length: 1.2 m
• Colour: White
• Chipset: Parade PS176
• HDCP support: 1.3 and 2.2
• Plug & Play, no drivers required

Why choose it

The CAC-1517 offers a simple single-cable solution for high-resolution video and audio. It supports 4K UHD at 60Hz for smooth motion and crisp detail, and its active design ensures compatibility with a wide range of USB-C devices that support DisplayPort Alt Mode. The bus-powered operation eliminates the need for an external power adapter, keeping your setup clean and portable.

Ideal use cases

• Connecting modern laptops (including MacBook Pro) to 4K DisplayPort monitors
• Driving UHD displays for video playback, streaming, or presentations
• Using with TVs or projectors that accept DisplayPort 1.2 input
• Situations requiring digital audio transfer alongside video

Good to know

The adapter is compatible with Windows, macOS, Chrome OS, and Linux, provided the host USB-C port supports DisplayPort Alternate Mode. It supports 8-bit and 10-bit colour depth and up to 21.6 Gbps bandwidth (HBR2). The integrated cable length is 1.2m, and the housing is made of durable ABS plastic.
