CLUB3D USB Gen1 Type-C triple display DP Alt Mode Displaylink dynamic PD charging dock met 120-watt voeding

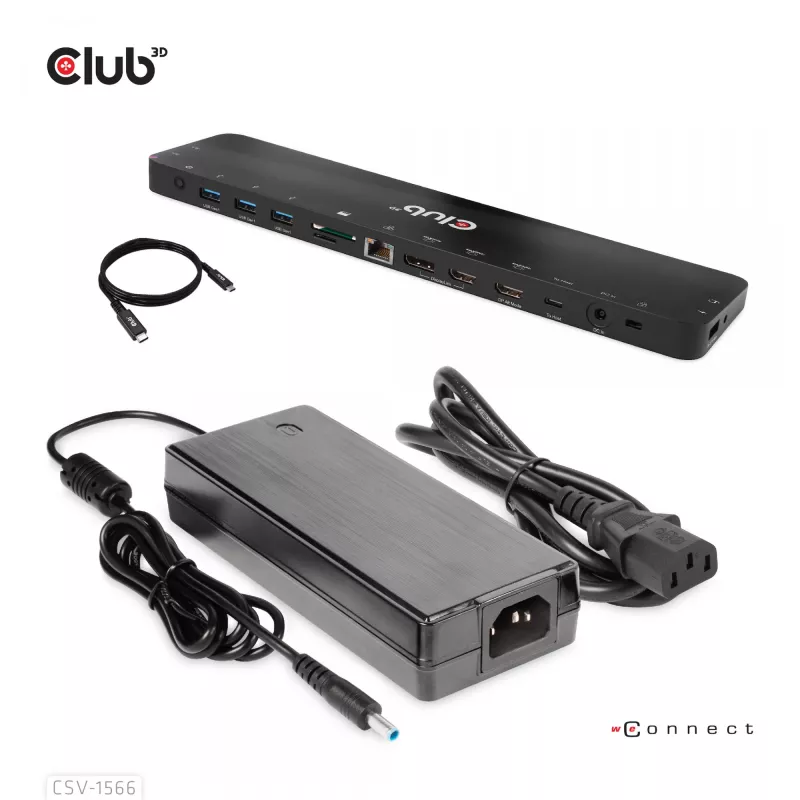

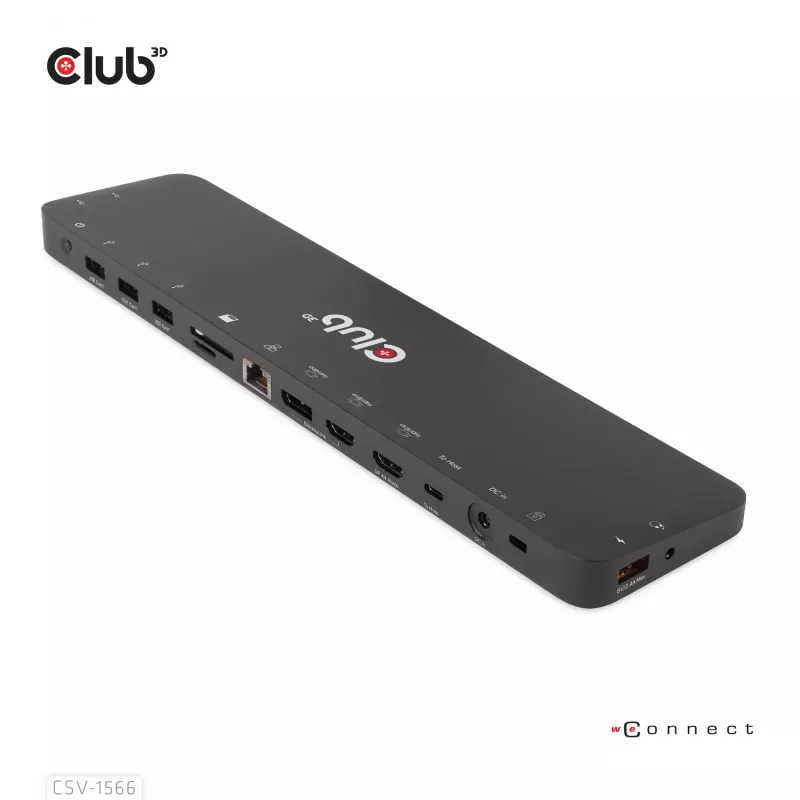

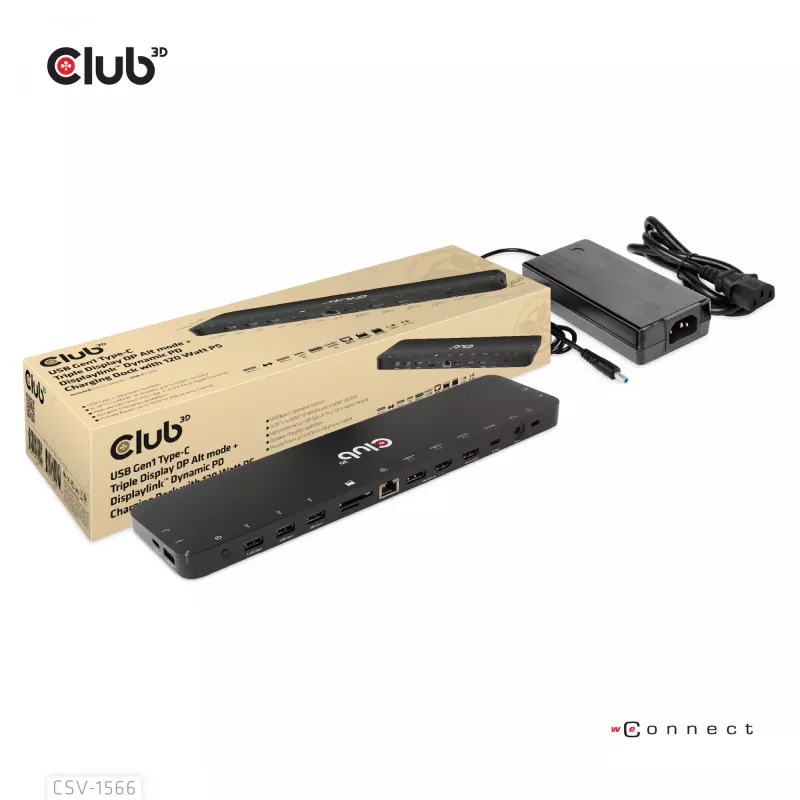

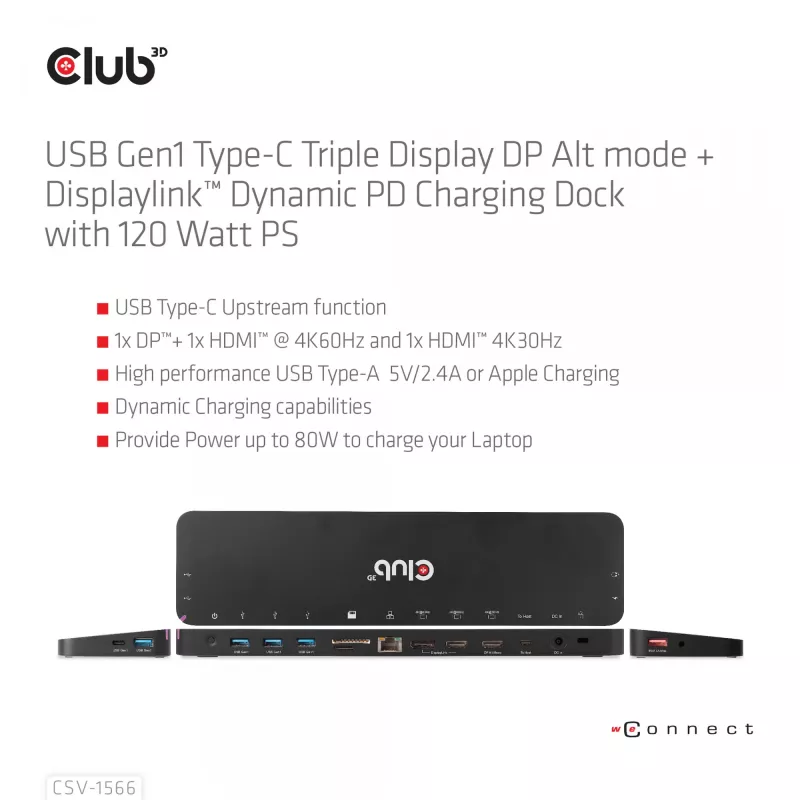

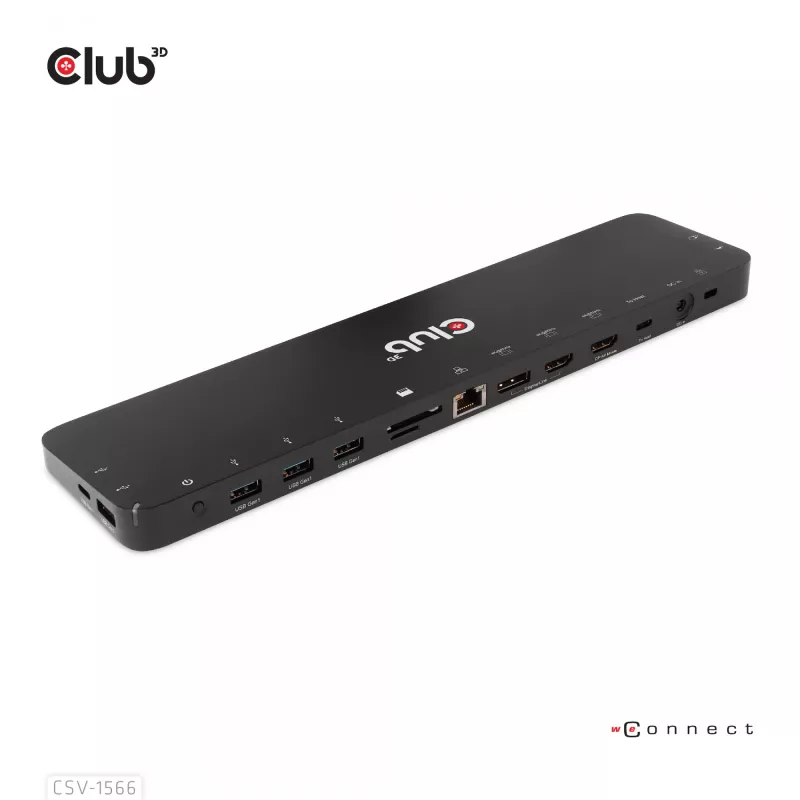

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display Dock is an integrated docking station that combines video, data, power, Ethernet and audio in a compact horizontal housing. It supports DisplayPort 1.2 Alt Mode and DisplayLink/USB mode to provide up to three external displays, multiple USB connections and dynamic PD charging with a 120 W power supply. The dock is compatible with USB Type-C hosts that support DP Alt Mode and can also be connected to USB-A hosts via a Type-C to USB adapter; it charges the host with up to 80 W (20V/4A).

Advantages

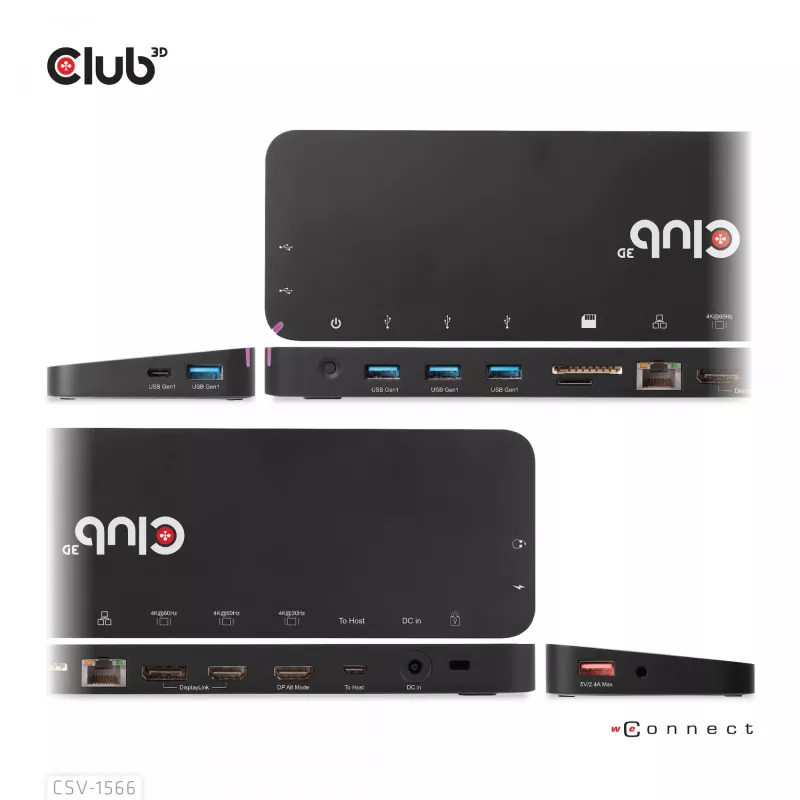

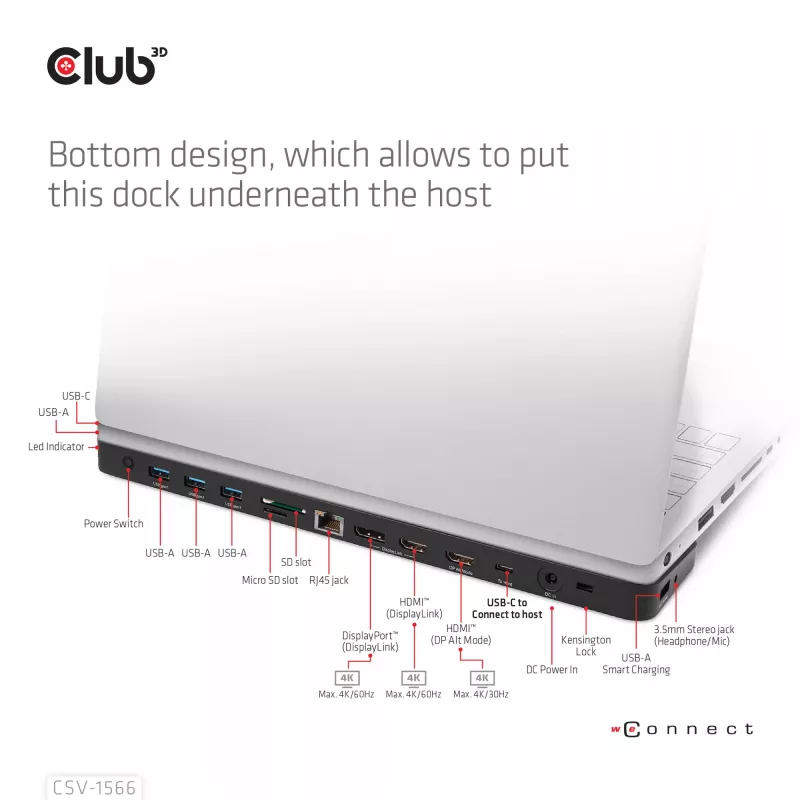

This docking station offers three video outputs (two HDMI and one DisplayPort) for flexible multi-monitor setups, plus five USB Gen1 ports (four Type-A and one Type-C) for peripheral connectivity. It includes an RJ45 Ethernet port for wired network access and SD/TF card slots for memory card reading. The integrated 120 W power adapter supplies the dock and enables fast device charging through a smart PD charging port. Its low-profile bottom design lets the dock sit beneath the host for a tidy workspace.

Suitable for

• Extending a laptop or PC with a single USB-C port to multiple external displays
• Connecting peripherals such as keyboard, mouse and external drives via USB Gen1 ports
• Providing wired Gigabit-class Ethernet connectivity for stable network access
• Reading SD or microSD (TF) cards from cameras and mobile devices
• Charging host laptops and mobile devices while using multiple displays

Key specifications

• Model: CLUB3D CSV-1566

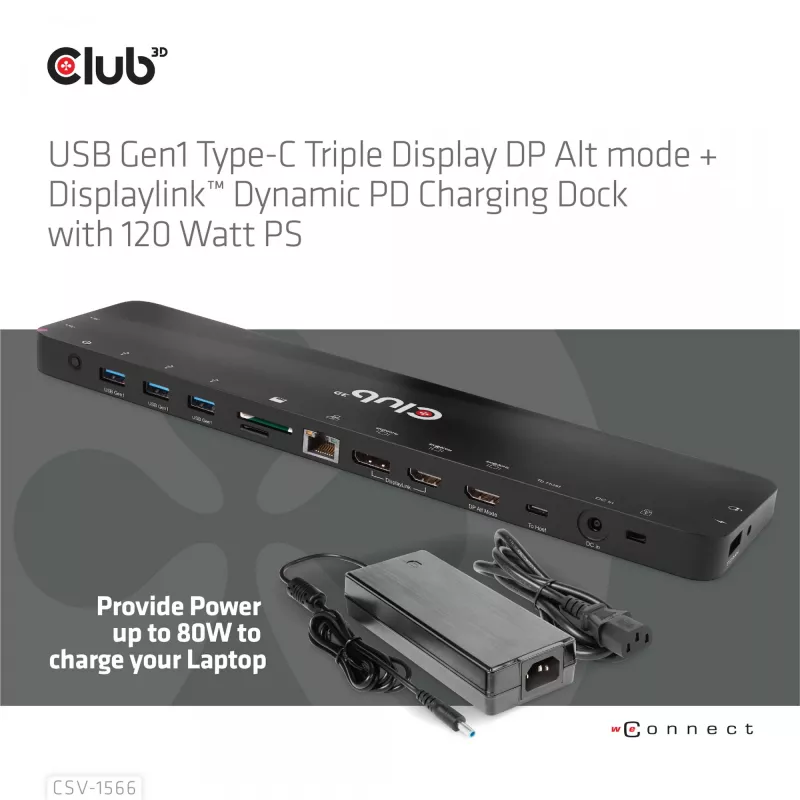

• Power adapter: 120 W (dock); host charging up to 80 W (20V/4A)

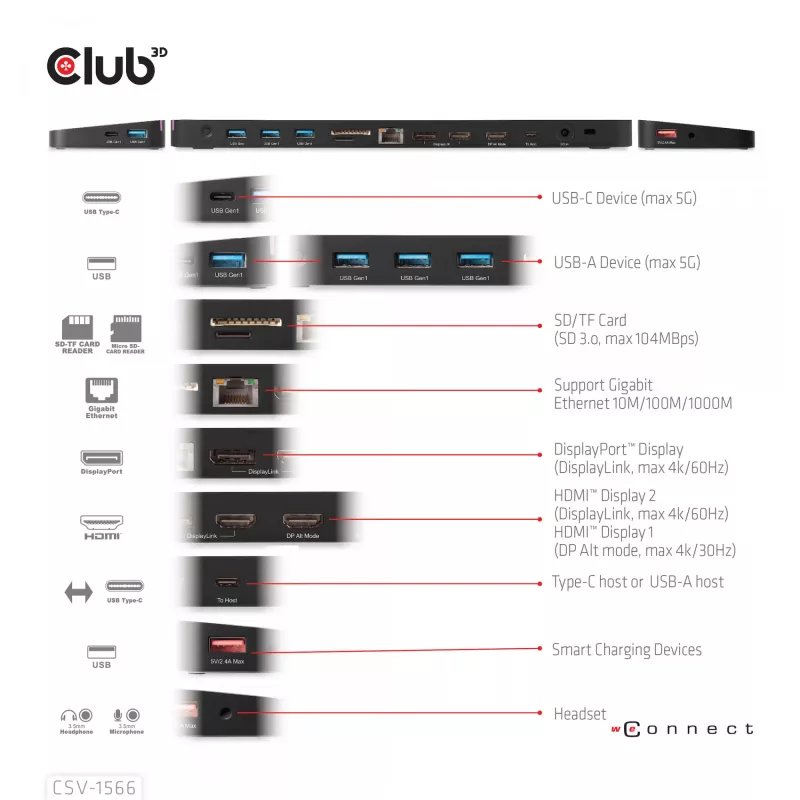

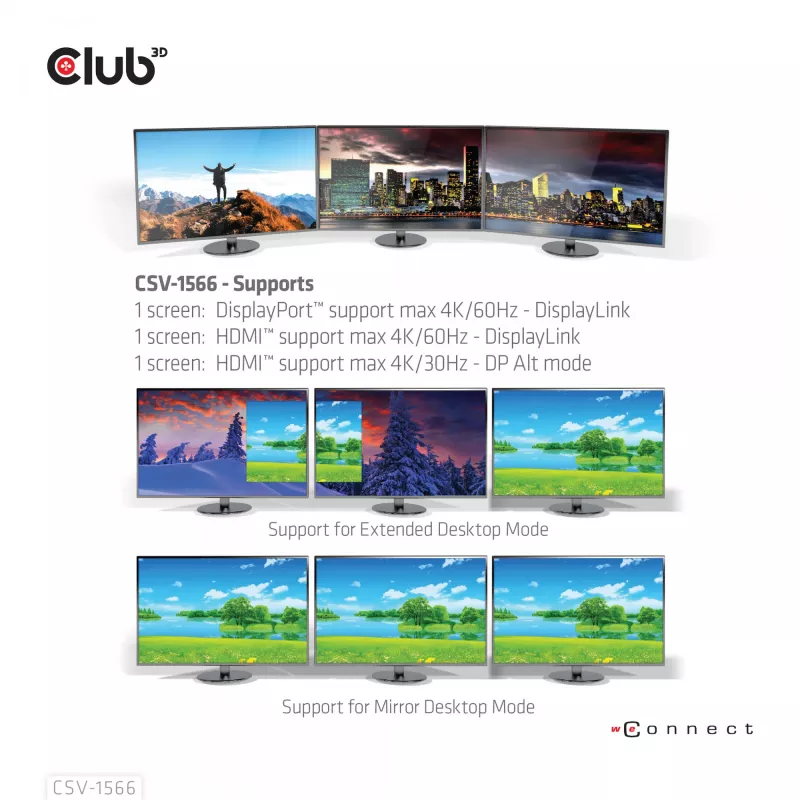

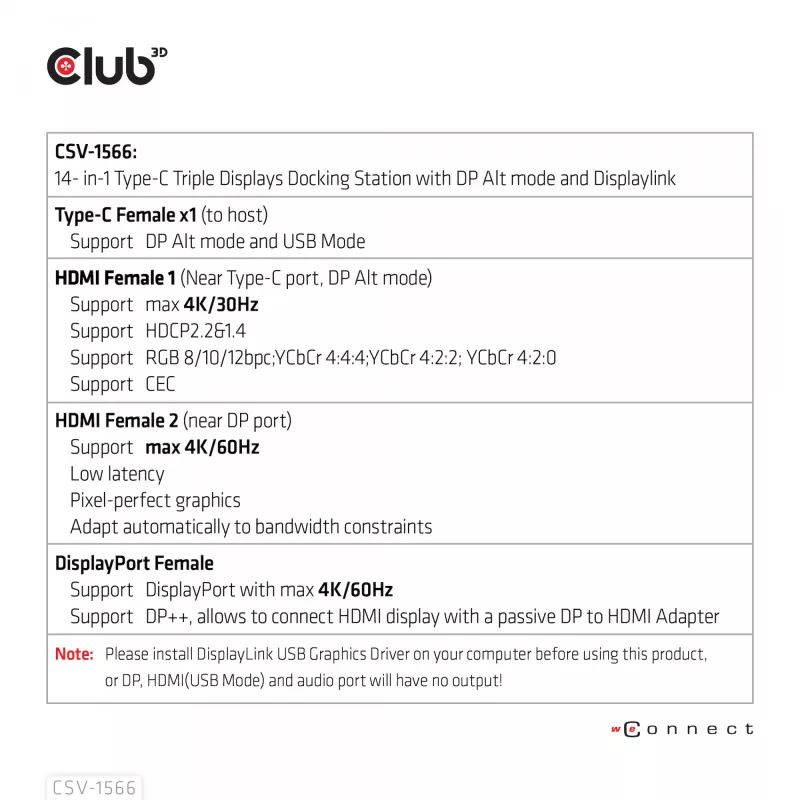

• Video outputs: 2 × HDMI, 1 × DisplayPort (DP 1.2 Alt Mode + DisplayLink/USB mode)
• USB ports: 4 × USB 3.2 Gen1 (Type-A), 1 × USB 3.2 Gen1 (Type-C)
• Ethernet: 1 × RJ45
• Card readers: SD and TF (microSD) slots
• Compatibility: USB Type-C hosts with DP Alt Mode; USB-A via adapter

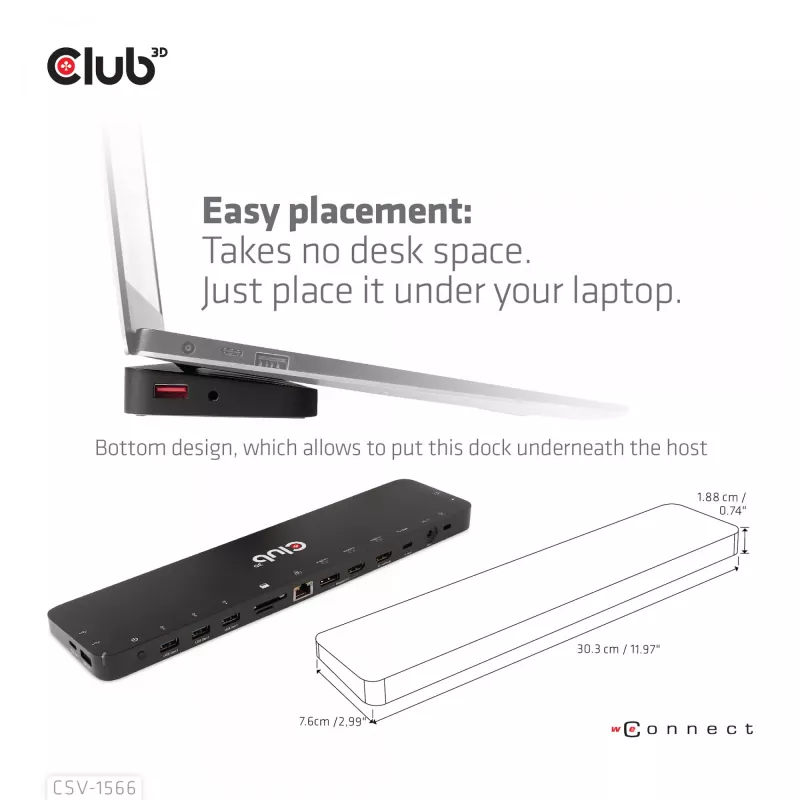

• Dimensions: 304 mm × 77 mm × 18 mm
• Weight: 0.358 kg
• Colour: Black

How to use

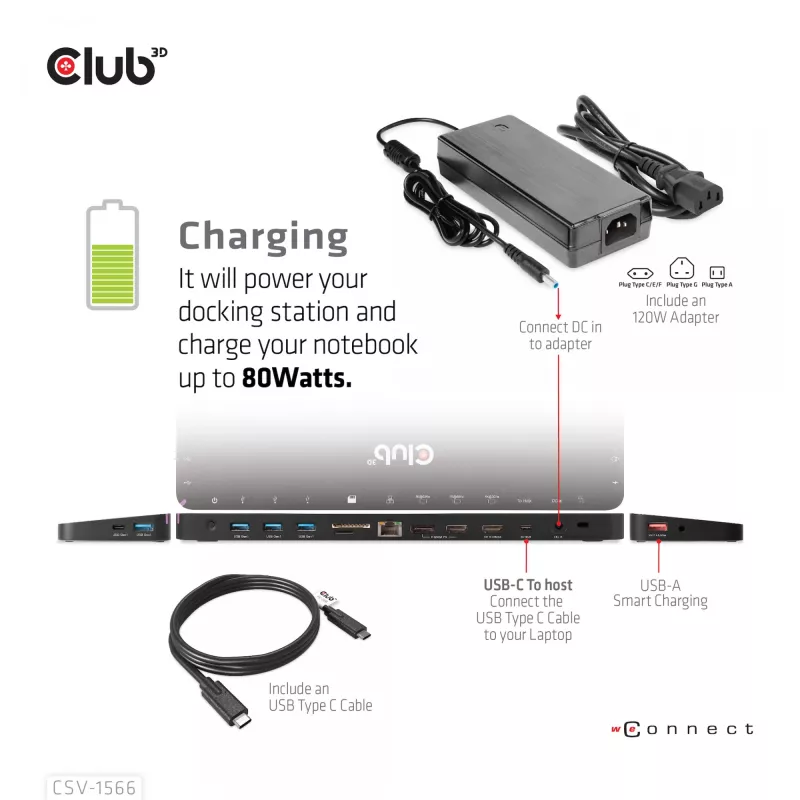

Place the dock beneath your laptop or on a flat surface and connect the included 120 W power adapter to the dock. Use a USB-C cable to connect the dock to a host device that supports DP Alt Mode for native multi-display output; alternatively connect to a USB-A host via a Type-C to USB adapter to enable DisplayLink/USB mode features. Attach external monitors to the HDMI and DisplayPort outputs, plug peripherals into the USB ports, insert memory cards into the SD/TF slots and connect Ethernet via the RJ45 port. The dock will provide power to the host up to 80 W and supply charging to connected mobile devices through the smart charging port.

Recommendations

For best multi-monitor performance, use a USB Type-C host that supports DisplayPort 1.2 Alt Mode. When connecting to USB-A hosts via an adapter, expect to use DisplayLink/USB mode which may require driver installation for optimal display performance.
