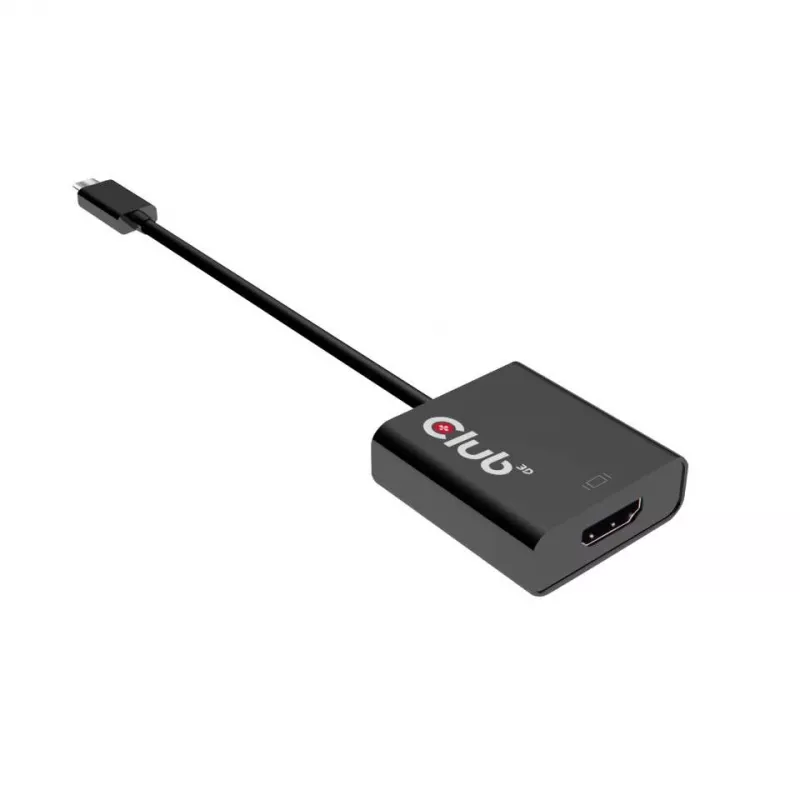

USB 3.1 Type-C naar HDMI 2.0 UHD 4K 60Hz actieve adapter CLUB3D CAC-2504

The Club 3D CAC-2504 is an active USB 3.1 Type‑C to HDMI 2.0 adapter that connects a USB‑C source with DisplayPort Alternate Mode to an HDMI 2.0 monitor, TV or projector. The compact, bus‑powered adapter supports UHD output and transfers both video and audio over a single connection without requiring external power.

Advantages

The adapter supports up to 4K UHD resolution at 60 Hz with up to 8 audio channels, ensuring smooth video playback and high‑definition digital audio. Its copper‑plated connector contacts and short integrated cable provide reliable signal quality. Being USB‑C bus powered, it is portable and convenient for use with notebooks and ultrabooks.

Suitable for

• Connecting laptops or smartphones with USB‑C (DisplayPort Alt Mode) to HDMI displays
• Streaming video and media to an HDTV or UHD monitor
• Presentations and external display extension for productivity
• Gaming on an external 4K@60Hz screen

Key specifications

• Brand: CLUB 3D, model CAC‑2504
• Input: USB 3.1 Type‑C (with DisplayPort Alternate Mode)
• Output: HDMI 2.0
• Maximum resolution: 4K UHD (3840×2160) at 60 Hz
• Audio: Up to 8 channels (digital)
• Power: Bus‑powered from USB‑C (no external power required)

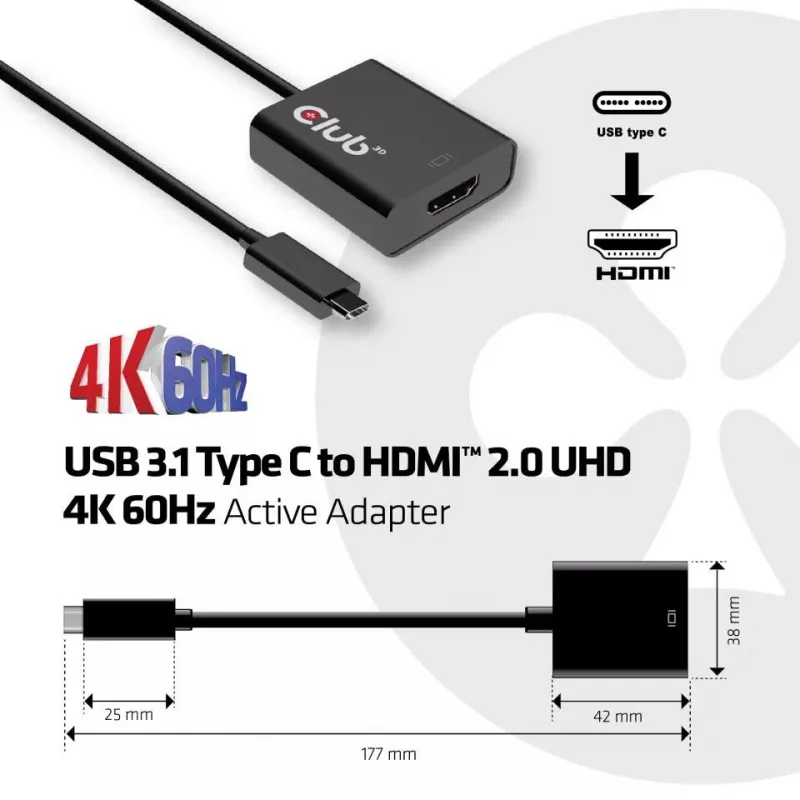

• Cable length: 0.15 m (integrated)
• Colour: Black; Weight: 0.021 kg

How to use

Connect the USB‑C plug of the adapter to a source device that supports DisplayPort Alternate Mode. Plug an HDMI cable from the adapter’s HDMI port to the HDMI input of a monitor, TV or projector. Set the display settings on the source device to the desired resolution and refresh rate (up to 4K @ 60 Hz). The adapter is bus‑powered and does not require any drivers on most modern operating systems; consult the device manual if the USB‑C port’s capabilities are unclear.

Recommendations

For best results, use a high‑quality HDMI 2.0 cable and ensure the source device’s USB‑C port supports DisplayPort Alt Mode. Verify your operating system and device specifications—compatible systems include Apple macOS, Windows 8.1/10, and Chrome OS—to ensure full 4K@60Hz output.
