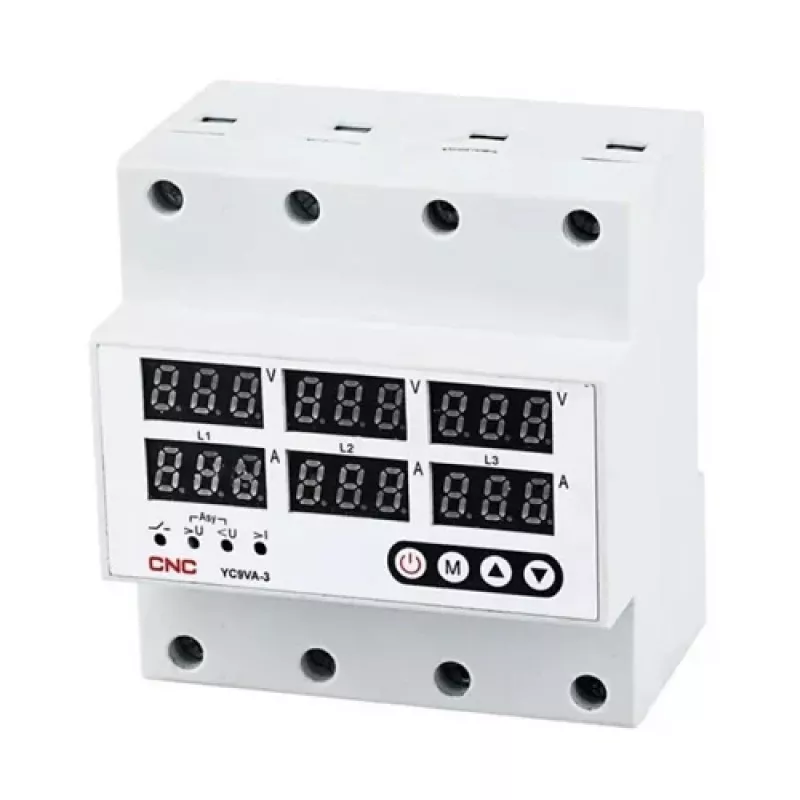

CNC EL240333 spannings- en stroombewakingsrelais, 63A, 3-fasen, DIN-railmontage, instelbare beveiliging

Three-phase voltage and current control relay engineered for robust protection of motors and electrical equipment. This 63A monitoring device continuously checks over/under voltage, over/under current, phase sequence, phase loss, and phase imbalance, ensuring reliable operation in industrial and commercial installations.

Advantages

Comprehensive protection in a single unit: the relay monitors all critical electrical parameters on each phase independently. Adjustable trip thresholds and delay times allow precise adaptation to your application, preventing nuisance tripping and equipment damage. The clear LCD display provides real-time readings and fault indication, simplifying commissioning and diagnostics. DIN rail mounting enables fast installation in standard distribution boards.

Suitable for

• Three-phase motor protection in pumps, compressors, conveyors, and HVAC systems
• Protection of sensitive equipment against phase loss, phase reversal, and voltage fluctuations
• Industrial control panels and machine tools requiring reliable power monitoring
• Commercial buildings with three-phase supplies and critical loads

Key specifications

• Rated current: 63 A
• Number of phases: 3
• Rated operating voltage: AC 230 V (L-N) / 400 V (L-L), 50/60 Hz
• Over-voltage protection: AC 230–300 V adjustable per phase
• Under-voltage protection: AC 150–210 V adjustable per phase
• Over-current protection: 1–63 A adjustable
• Under-current protection: 0.1–60 A adjustable
• Phase sequence, phase loss, and phase imbalance protection (adjustable threshold)
• Recovery delay time: 0.1–30 s adjustable
• Trip delay time: 0.1–30 s adjustable
• Display: LCD
• Mounting: 35 mm DIN rail
• Auxiliary contact: 1 NO, AC 250 V 6 A
• Wiring capacity: up to 25 mm²
• Operating temperature: -20 °C to +55 °C
• Protection degree: IP20

Recommendations

For reliable three-phase protection, install this relay upstream of critical loads. Set the voltage and current limits according to the equipment manufacturer's specifications. Use the adjustable delay times to avoid tripping during momentary fluctuations. Regularly verify settings and test the relay to ensure continuous protection.
