Installatieautomaat HiSmart NV821426 miniatuur 1P 16A DIN-rail

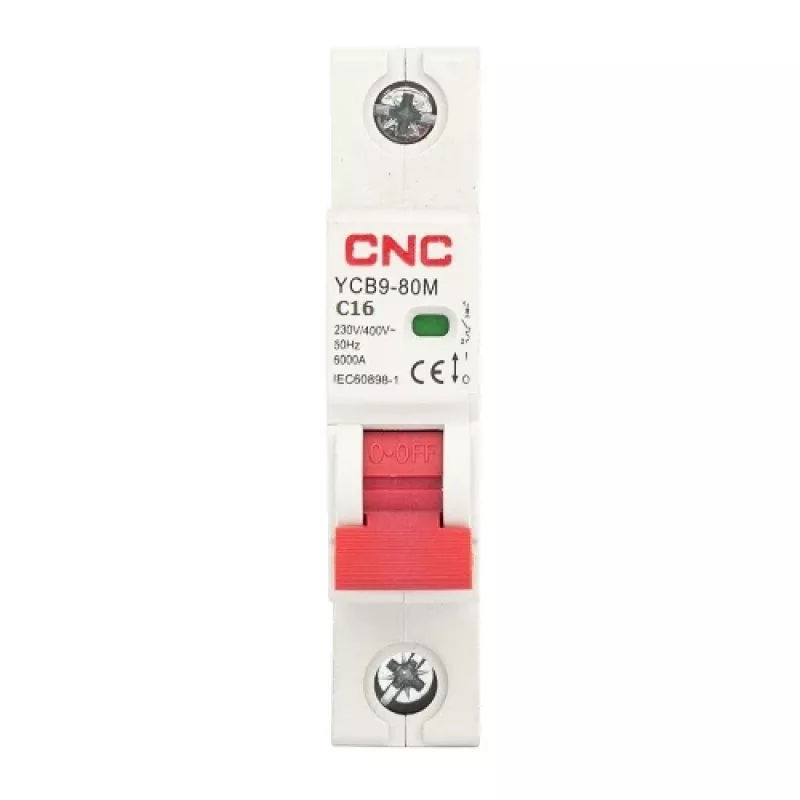

Miniature circuit breaker HiSmart NV821426 is a single-pole (1P) protective device rated at 16 A and Class C tripping characteristic. Designed for DIN-rail (35 mm) mounting, it provides overload and short-circuit protection for residential and light-commercial circuits and allows manual resetting after a trip. The housing is flame-retardant, resistant to high temperature and impact, and features a contact position indicator (red = closed, green = open).

Advantages

The HiSmart NV821426 combines short-circuit and overload protection with a 6 kA breaking capacity and a clear contact position indicator. It supports top and bottom connections for cables and pin-type busbars, accepts conductors up to 25 mm² (or 18-3 AWG for busbar), and is rated to IEC/EN 60898-1 standards. Mechanical durability and electrical life ratings (20,000 mechanical operations and 8,000 electrical operations) make it suitable for repeated use in distribution boards.

Suitable for

• Protection of lighting and socket circuits in homes
• Overcurrent protection in small commercial installations
• Integration into DIN-rail distribution boards

Key specifications

• Number of poles: 1P
• Rated current: 16 A
• Tripping class: C
• Rated voltage: AC 230/400 V
• Insulation voltage (Ui): 500 V
• Rated frequency: 50/60 Hz
• Rated breaking capacity (Icu): 6000 A
• Rated impulse withstand voltage (Uimp): 6000 V
• Mechanical life: 20,000 operations
• Electrical life: 8,000 operations
• Protection degree: IP20
• Terminal connection: cable / pin-type busbar, top and bottom
• Wire / busbar cross-section: up to 25 mm² / 18-3 AWG
• Dimensions (H×W×D): 85.5 × 78.8 × 18 mm
• Standards: IEC 60898-1 / EN 60898-1

How to use

Mount the HiSmart NV821426 on a standard 35 mm DIN rail using the fast clip device. Connect supply and load conductors to the top and bottom terminals respectively, observing correct polarity and using appropriate conductor cross-sections up to 25 mm² (or 18-3 AWG for busbar). After installation, switch the breaker to the ON position; if it trips due to overload or short circuit, identify and clear the fault, then manually reset the breaker to restore power. Operate within the ambient temperature range of -5 °C to +40 °C (daily average < 35 °C).

Recommendations

Use the device only in accordance with IEC/EN 60898-1 requirements. Verify conductor sizes and tighten terminals to manufacturer-recommended torque values. Do not exceed the rated current or breaking capacity, and ensure regular inspection in environments with dust or corrosive conditions.
